Wiper and Washer Systems




Wiper/Washer Schematics

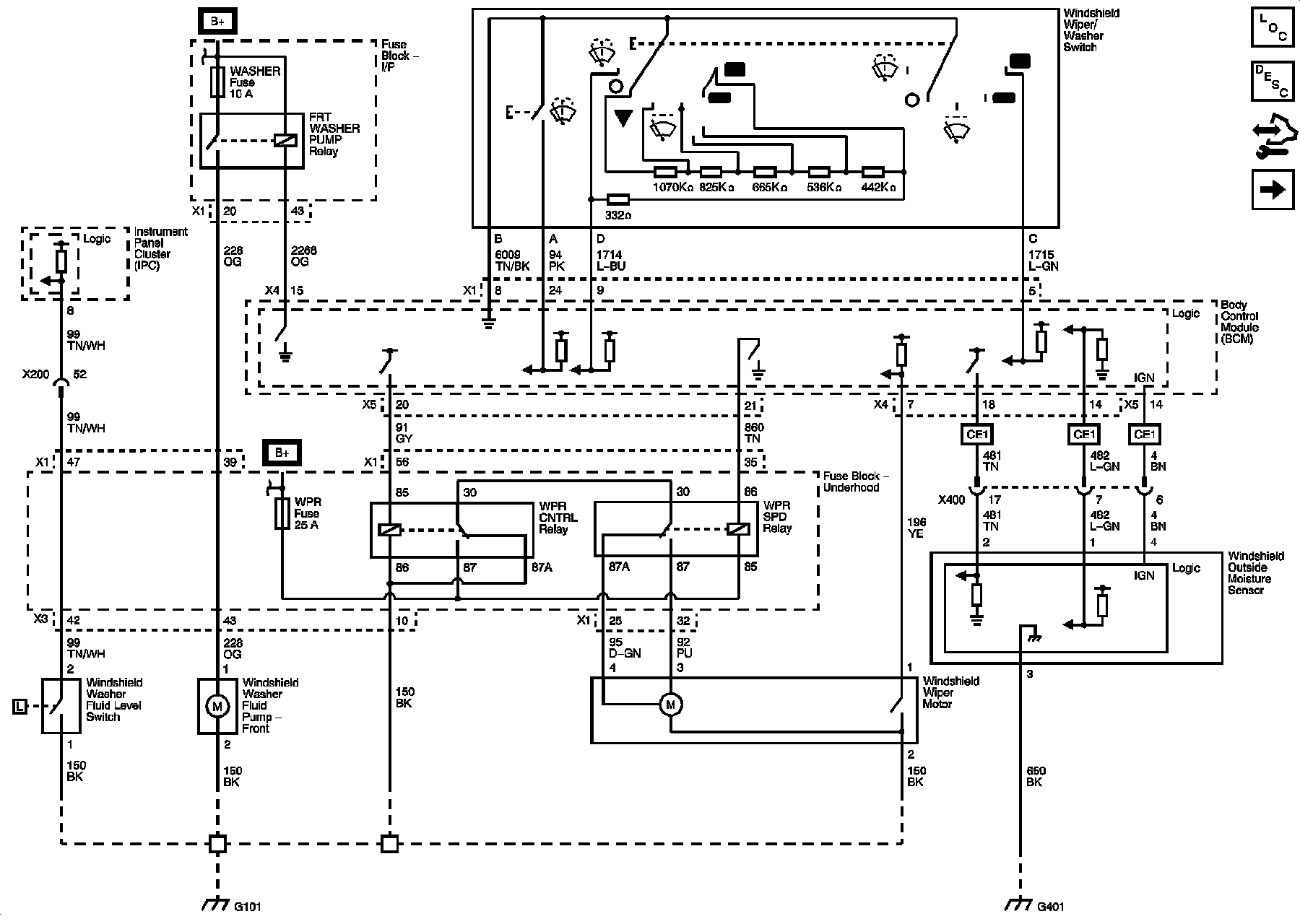

Front Wiper Washer





Heated Washer Nozzle





Rear Wiper Washer
