4T45-E Automatic Transaxle




Automatic Transmission Controls Schematics

TCM Power and Ground (4T45E)





Transmission Solenoids and VSS (4T45E)





Shift Solenoids and TCC/PWM Solenoid (ME7)

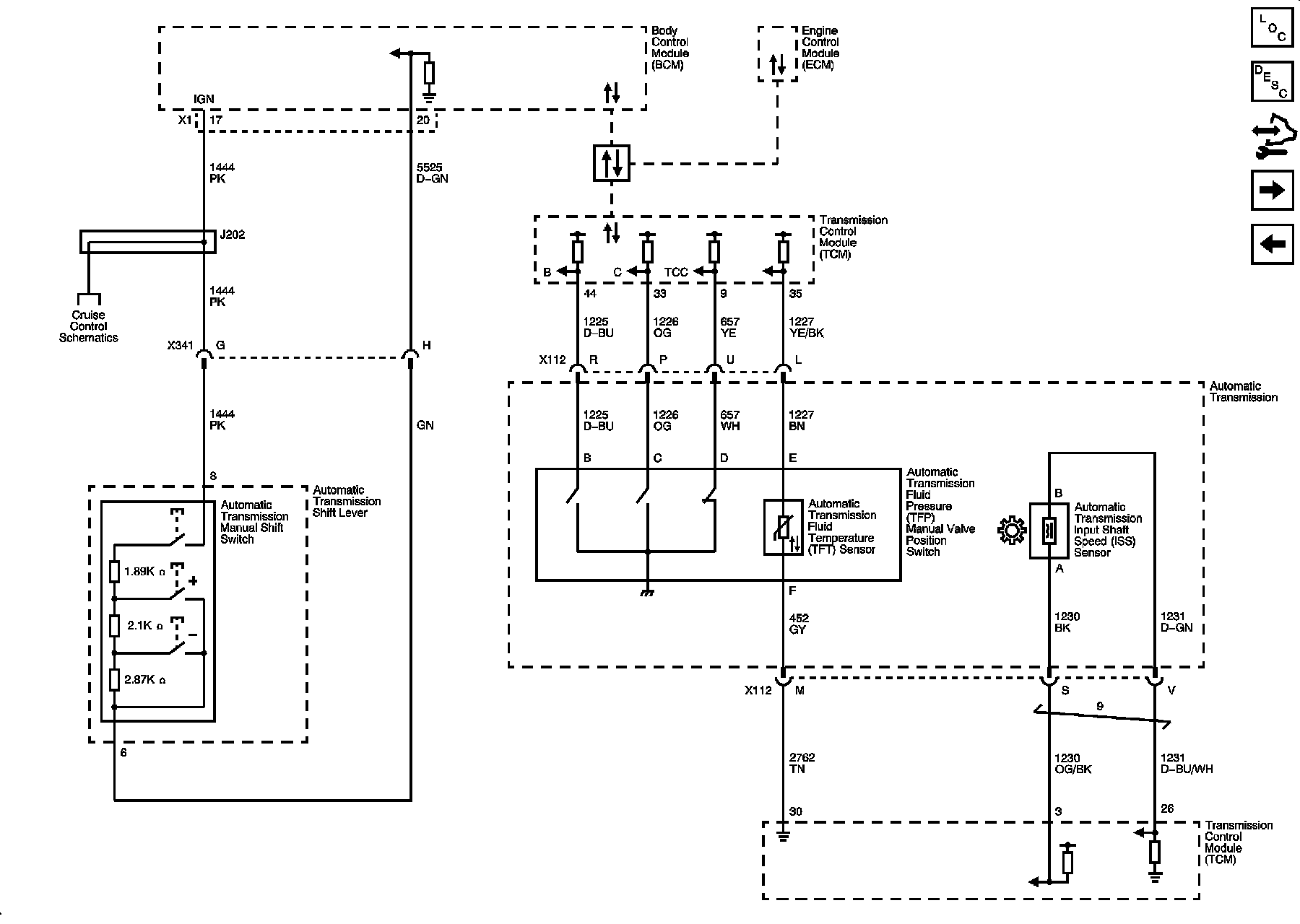

Pressure Switches, TFT, AT ISS Sensors and TapUp/TapDown Switch (4T45E)





Transmission Switches and TFT and ISS Sensors (ME7)

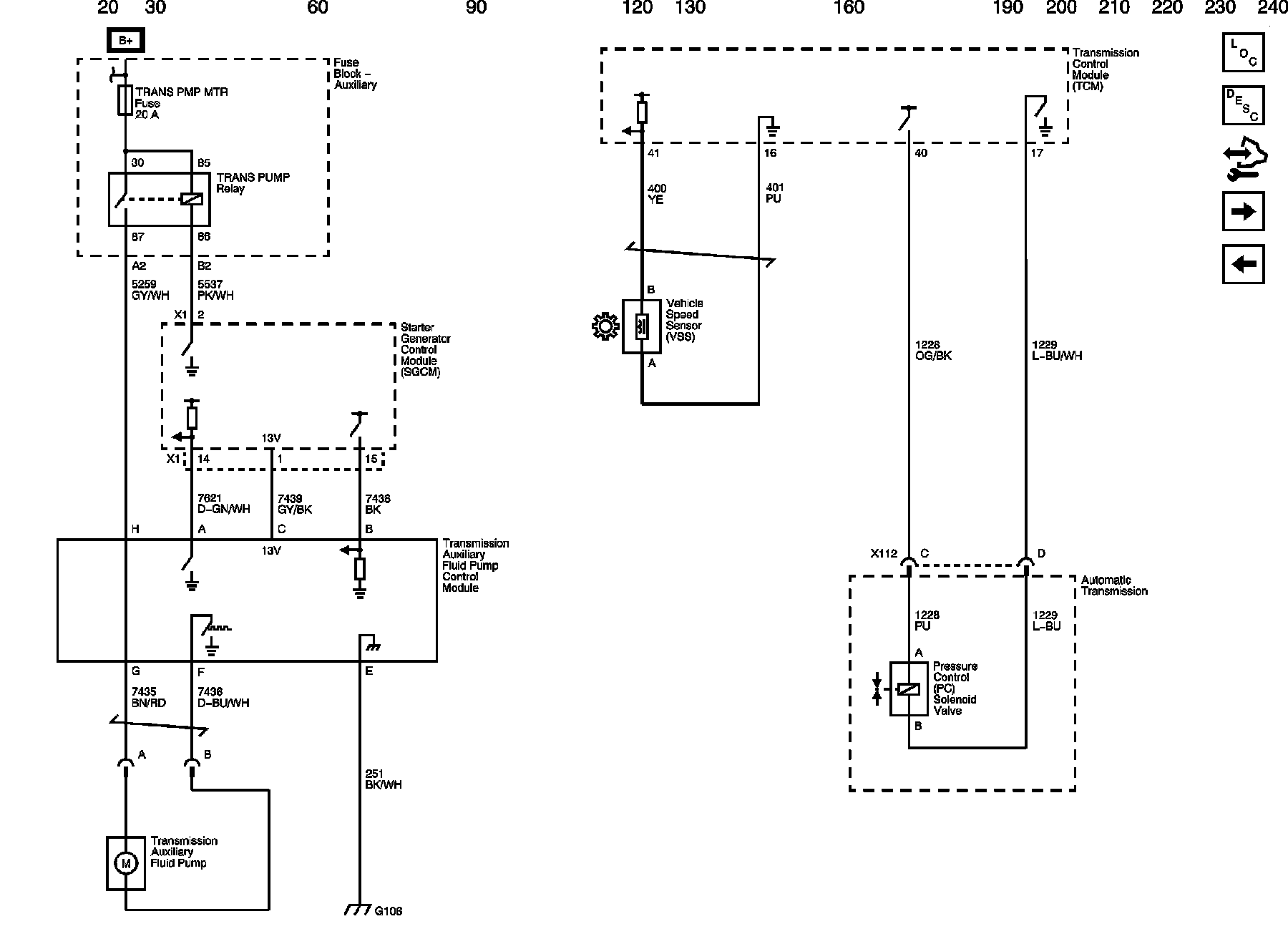

Pressure Controls, VSS and Auxiliary Fluid Pump Controls (ME7)





PNP Switch (4T45E)
