2MT70 - Automatic Transaxle




Automatic Transmission Controls Schematics

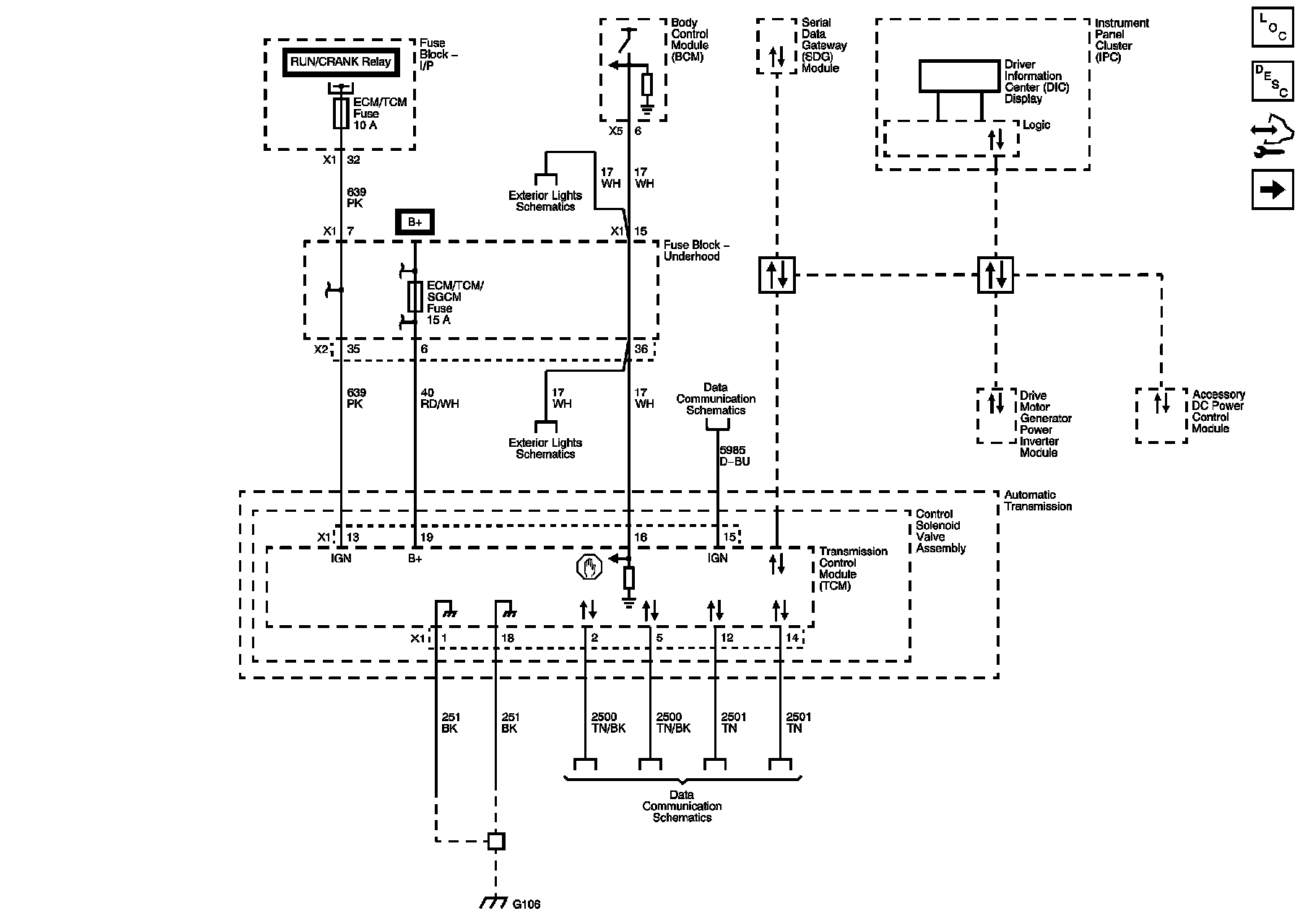

Module Power, Ground, Data Communications and MIL

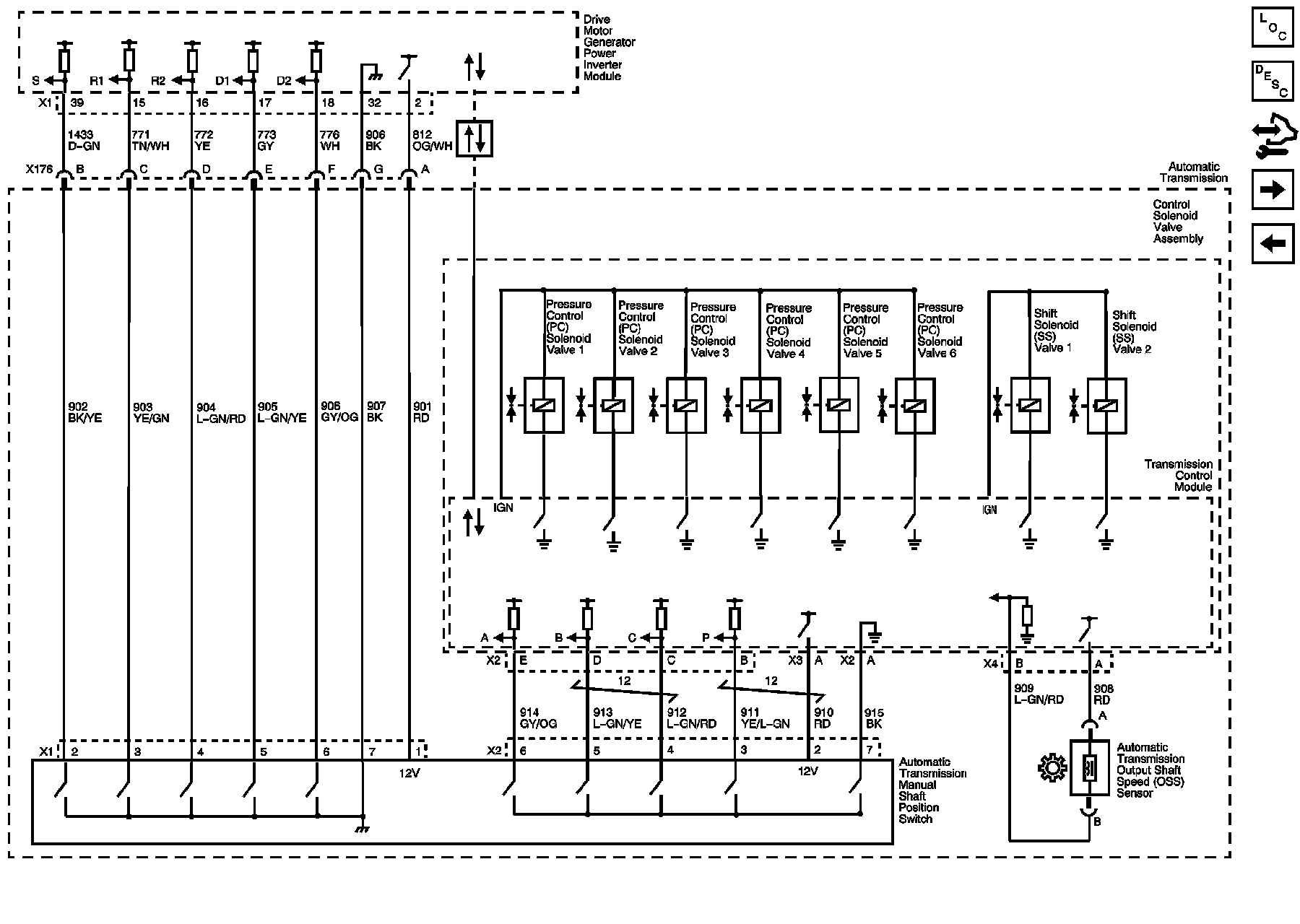

Transmission Manual Shaft Position Switch, Speed Sensor and Pressure Solenoids

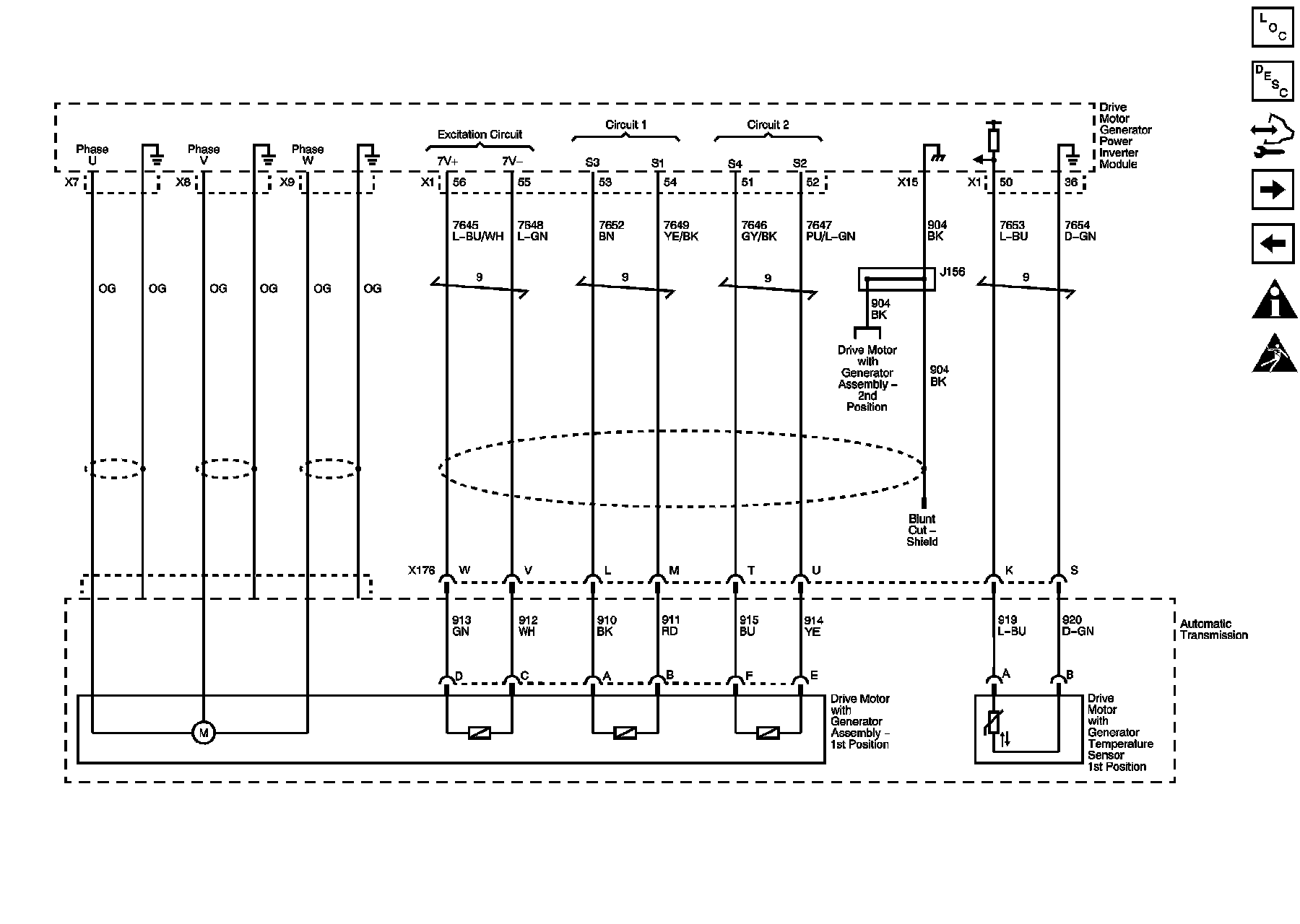

Drive Motor/Generator and Temperature Sensor - 1st Position

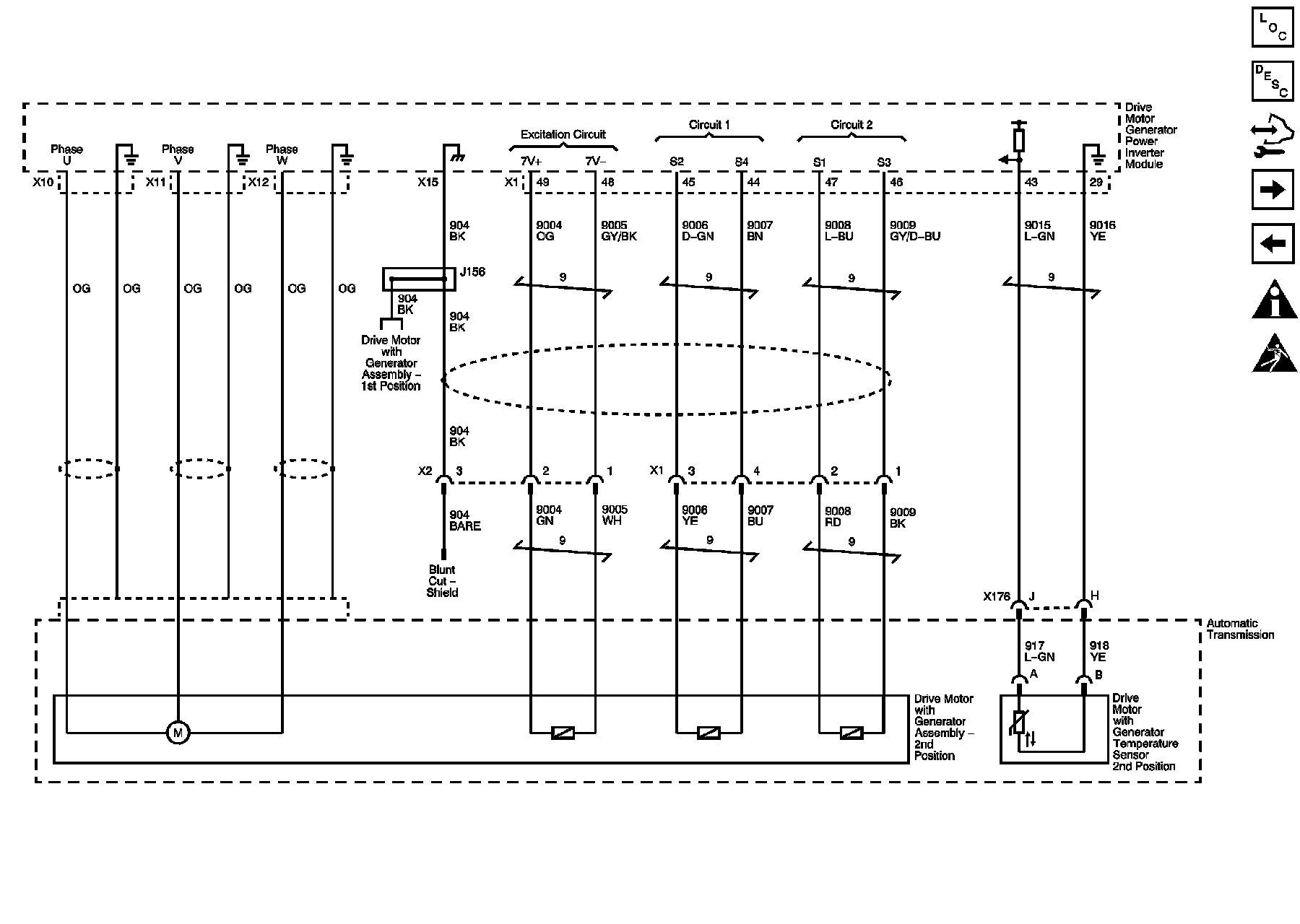

Drive Motor/Generator and Temperature Sensor - 2nd Position





Auxiliary Fluid Pump and Controls
