System Diagram

ENGINE CONTROLS SCHEMATICS

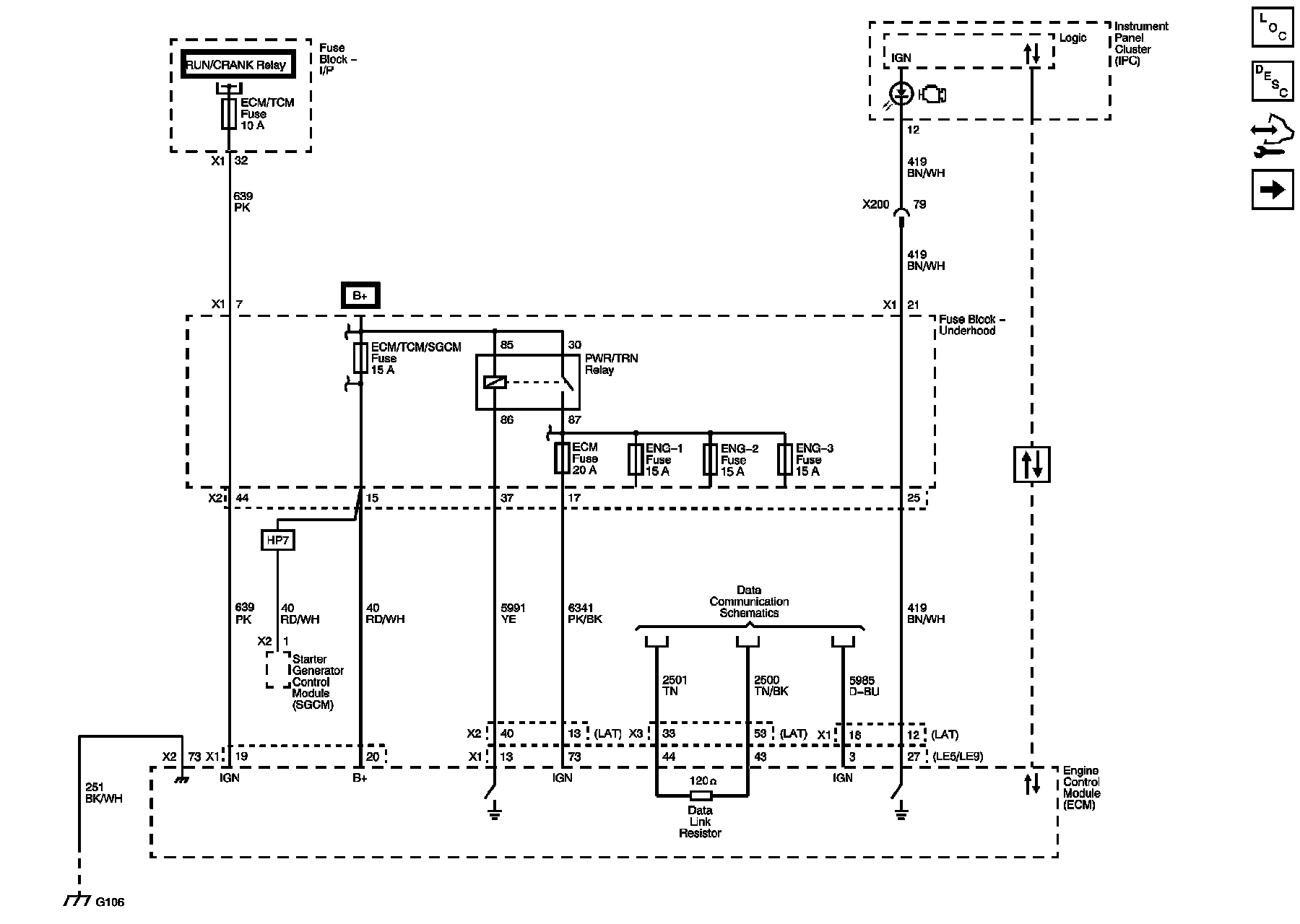

Power, Ground, Serial Data and MIL (LAT/LE5/LE9)

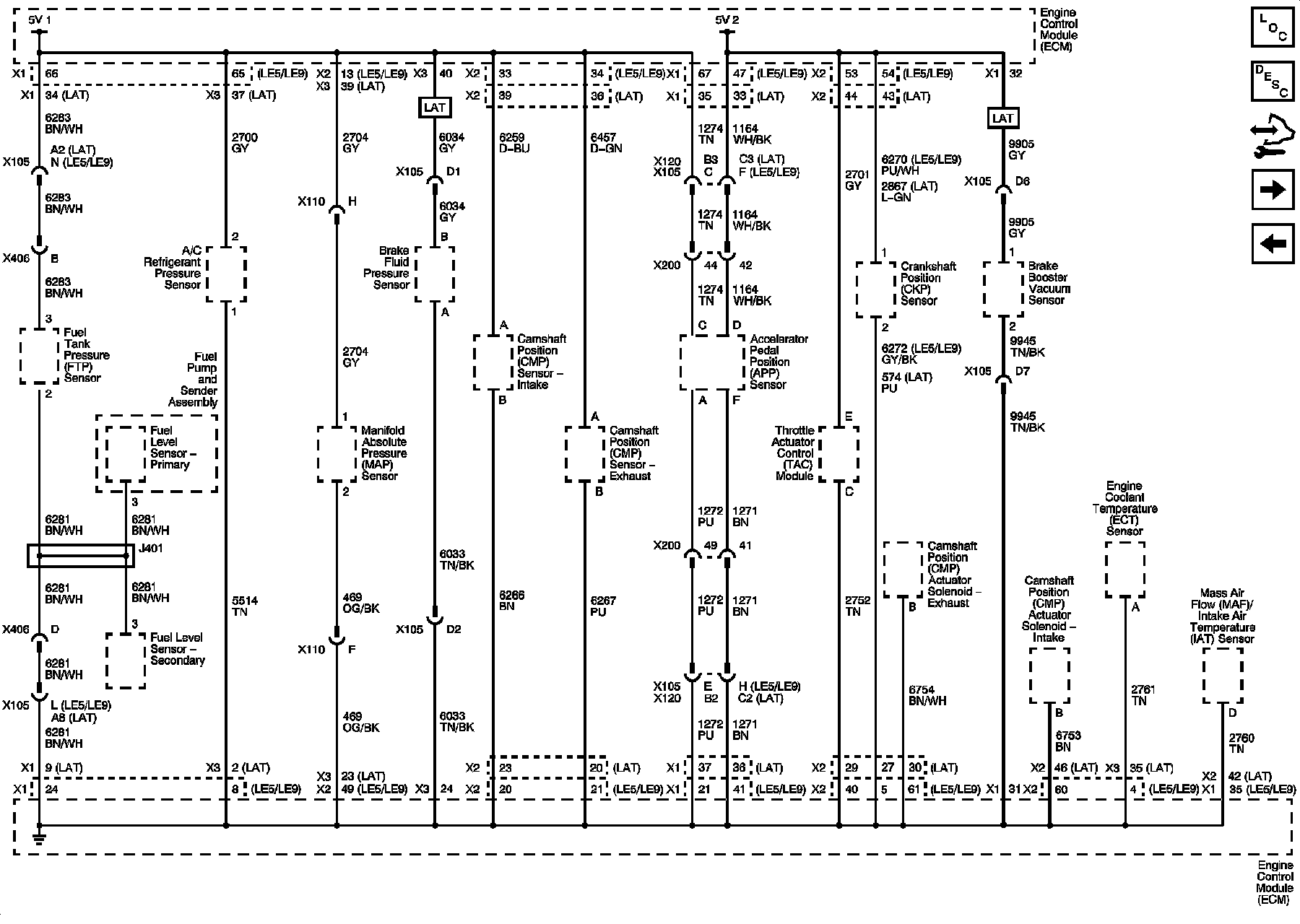

Engine Data Sensors - 5-Volt and Low Reference (LAT/LE5/LE9)

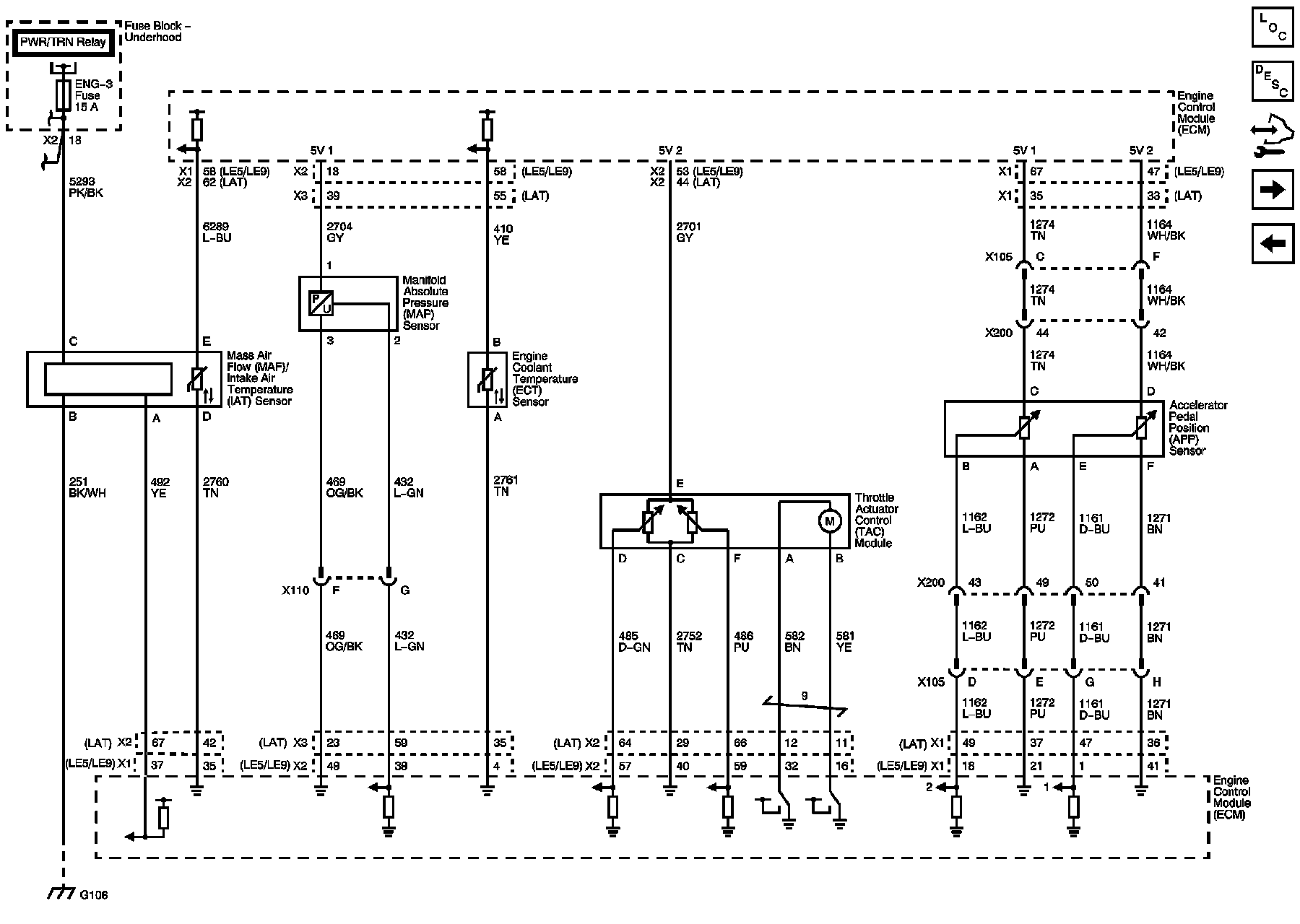

Engine Data Sensors - Pressure, Temperature and MAF/IAT (LAT/LE5/LE9)







Engine Data Sensors - Heated Oxygen Sensors (HO2S) (LAT/LE5/LE9)







Ignition Controls - Ignition System (LAT/LE5/LE9)

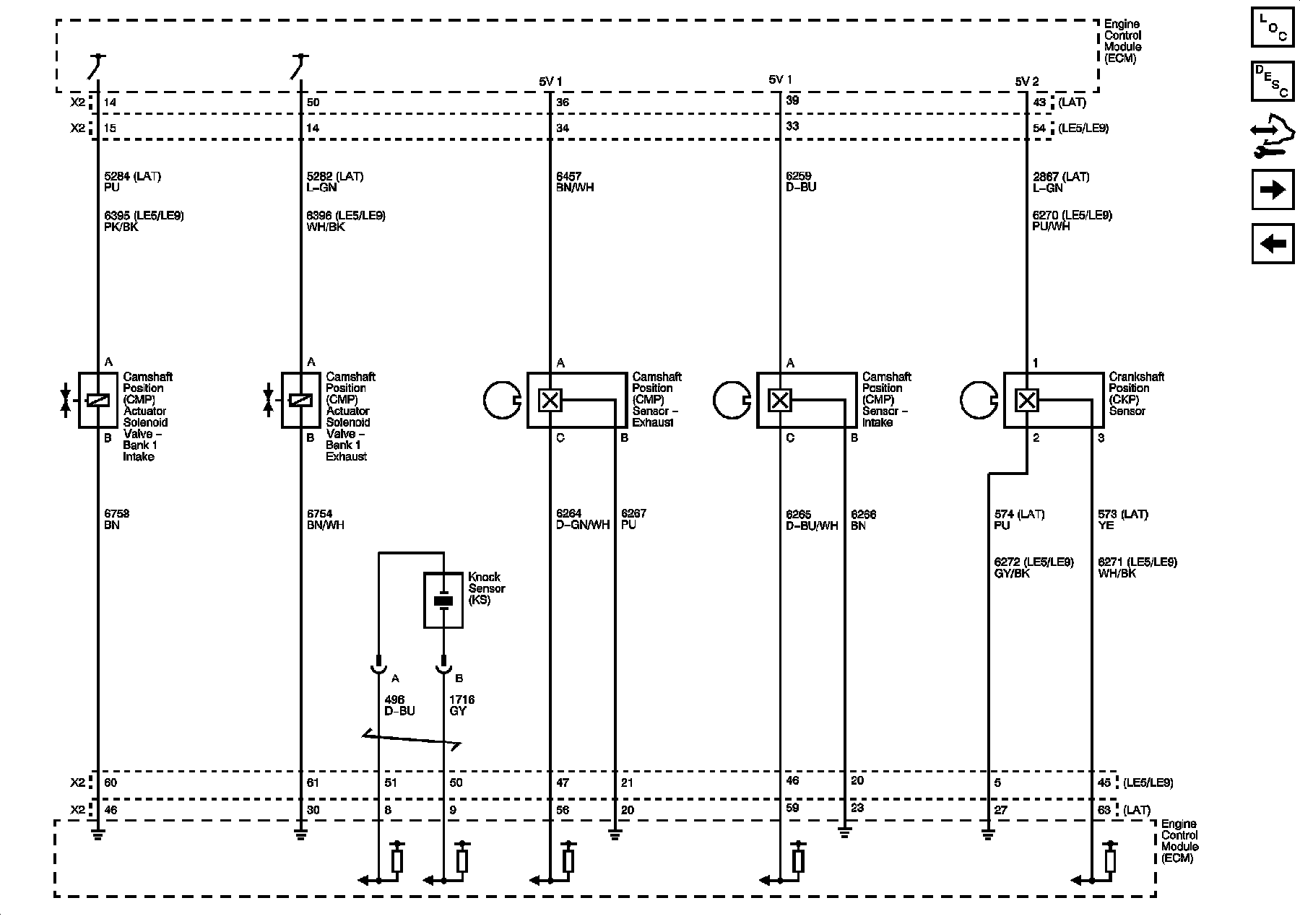

Ignition Controls - Camshaft (CMP), Crankshaft (CKP) and Knock (KS) Sensors (LAT/LE5/LE9)







Fuel Controls - Fuel Injectors (LAT/LE5/LE9)

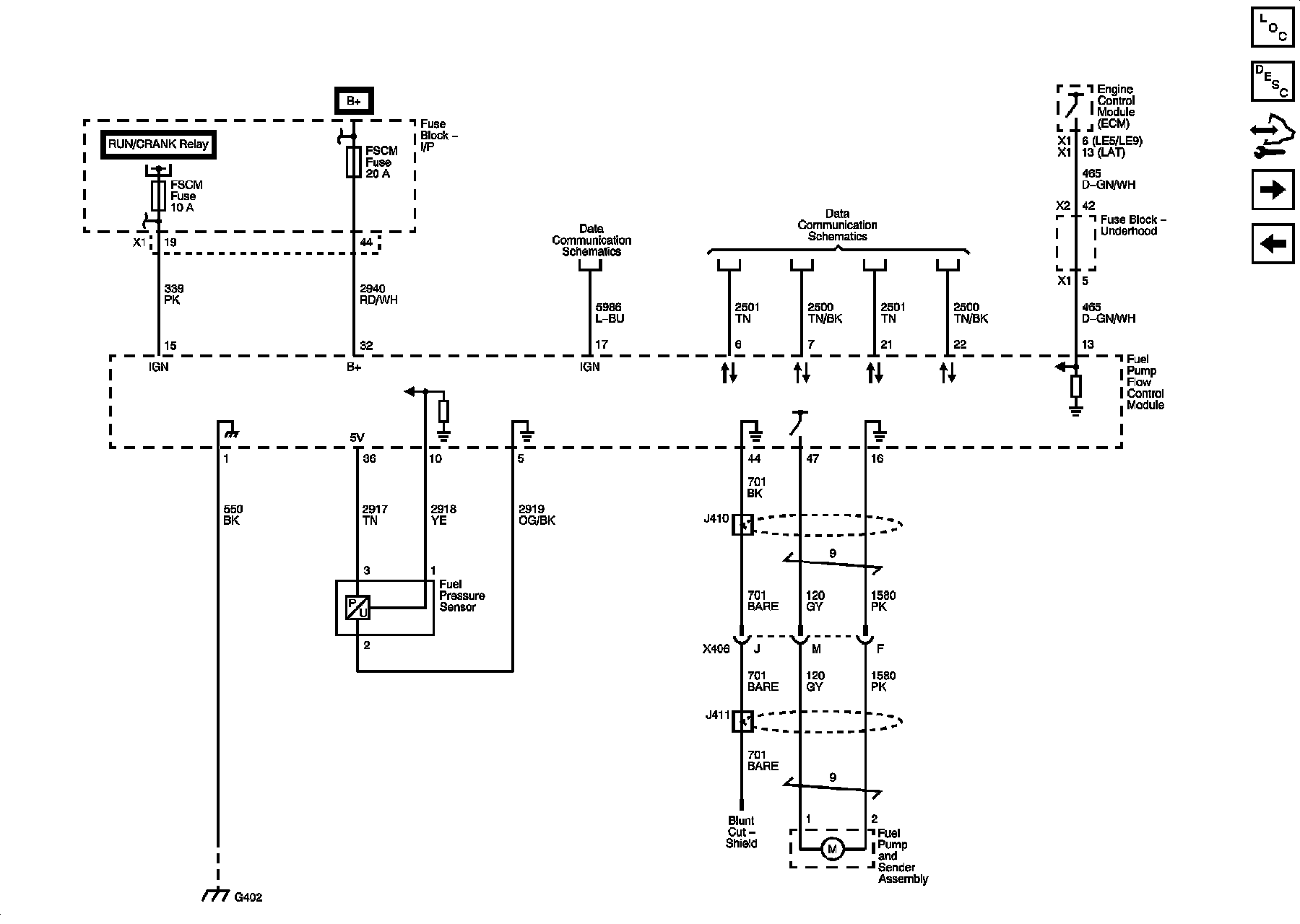

Fuel Controls - Fuel Pump Control Module (LAT/LE5/LE9)

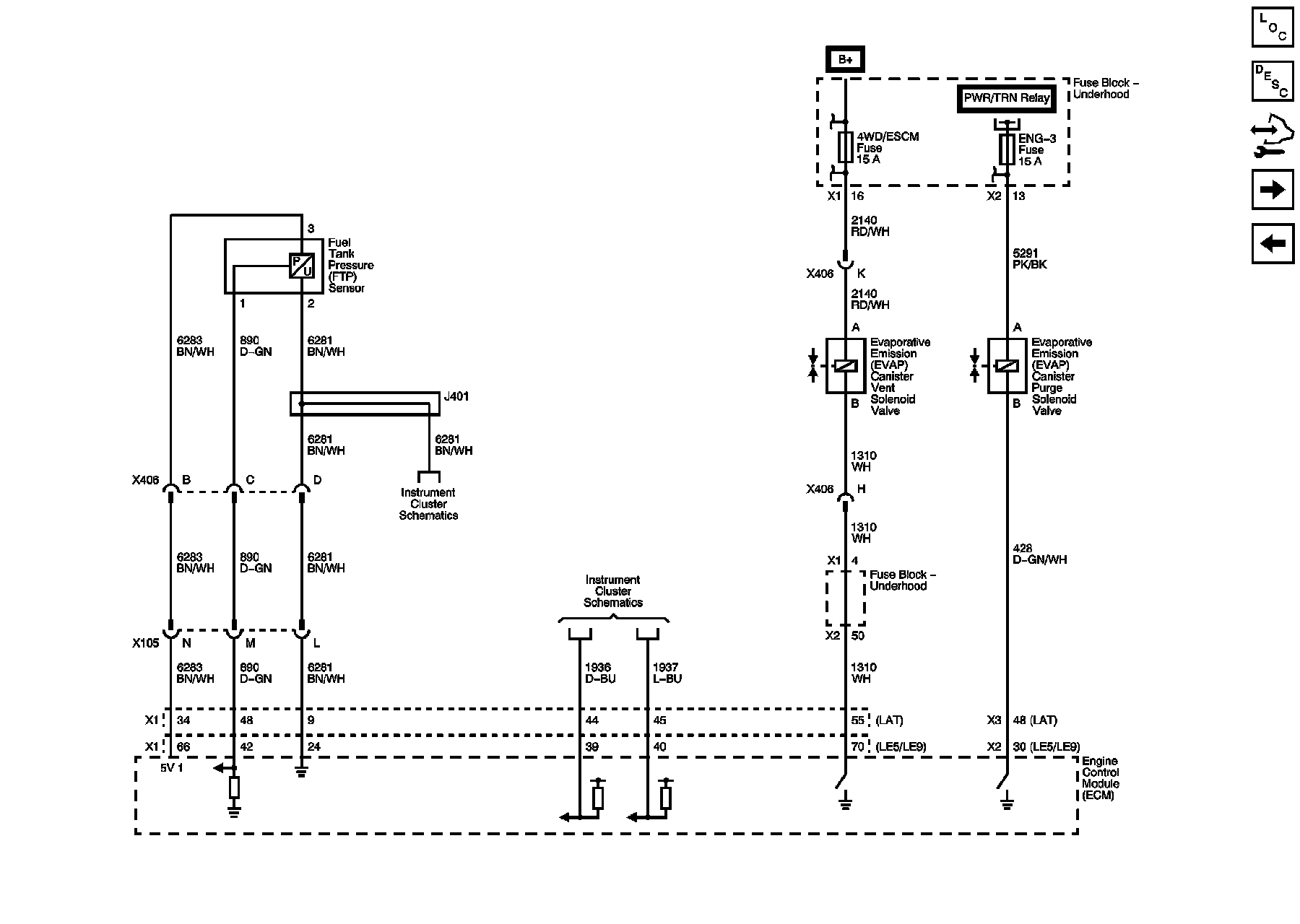

Fuel Controls - Evaporative Emissions (EVAP) Controls (LAT/LE5/LE9)







Secondary Air Injection (AIR) Pump (LE5/LE9 with NU6)

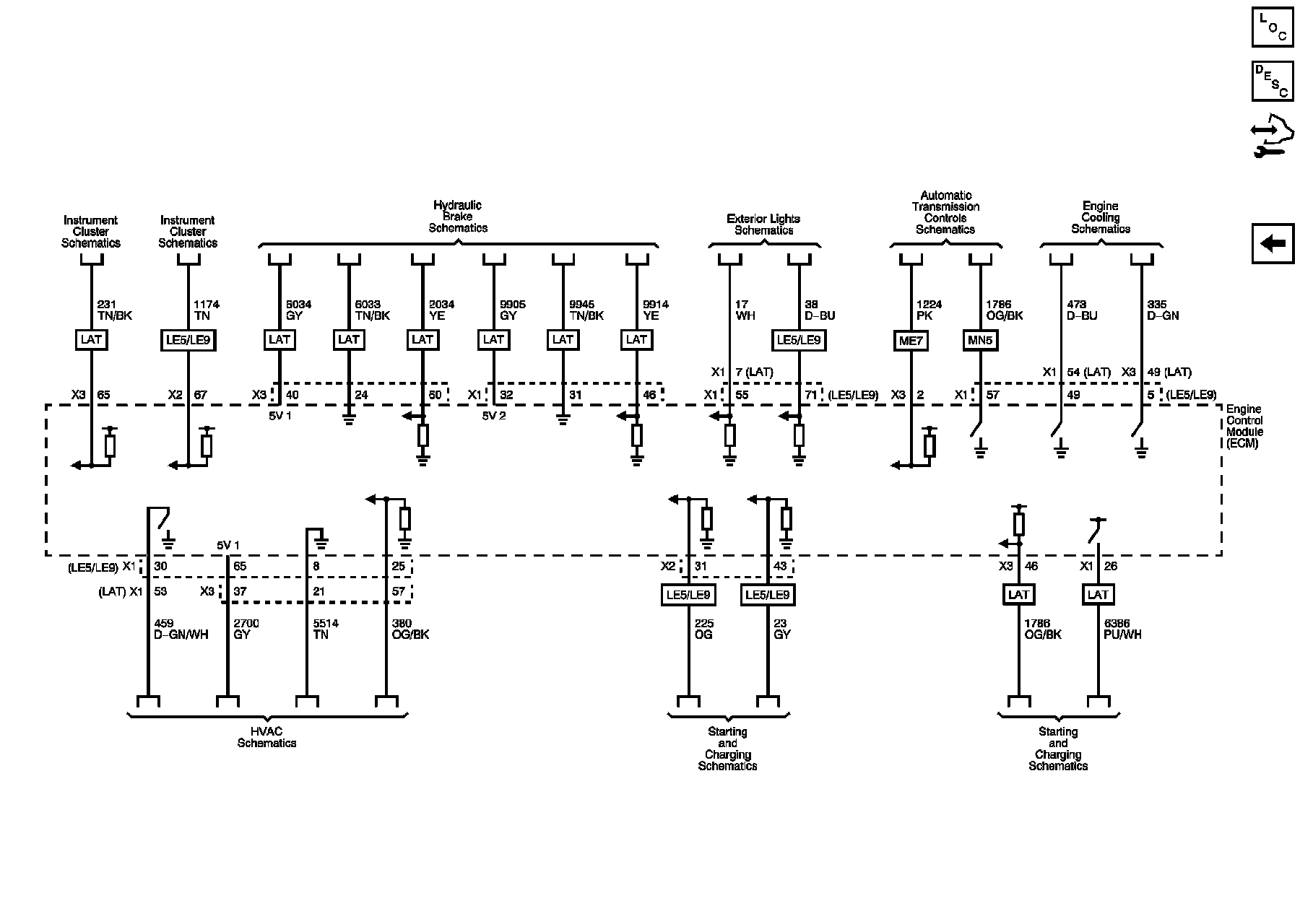

Controlled/Monitored Subsystem References (LAT/LE5/LE9)







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
