Saturn
>>
2009
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>

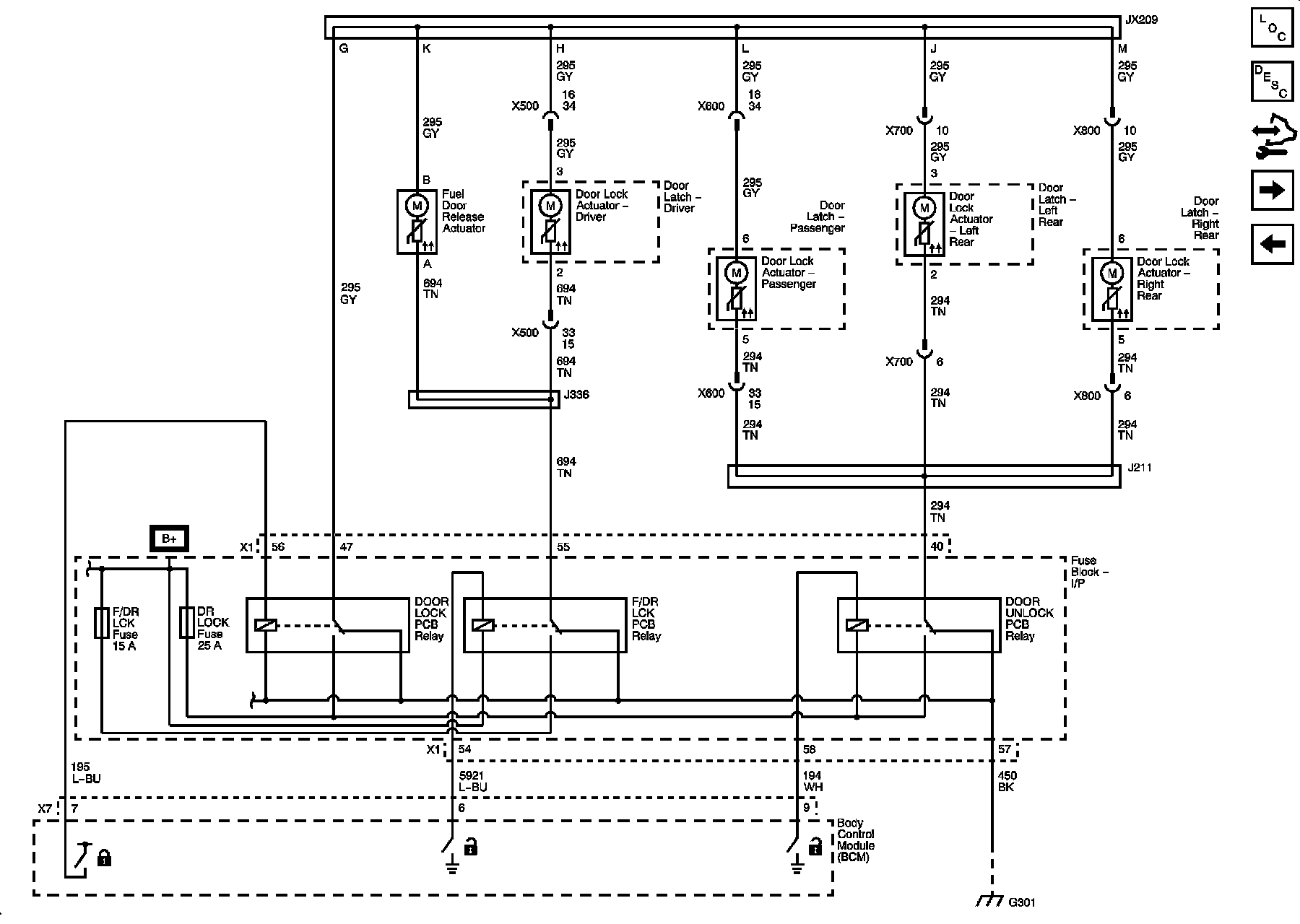

Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Driver Door Locks
Door Lock Actuators

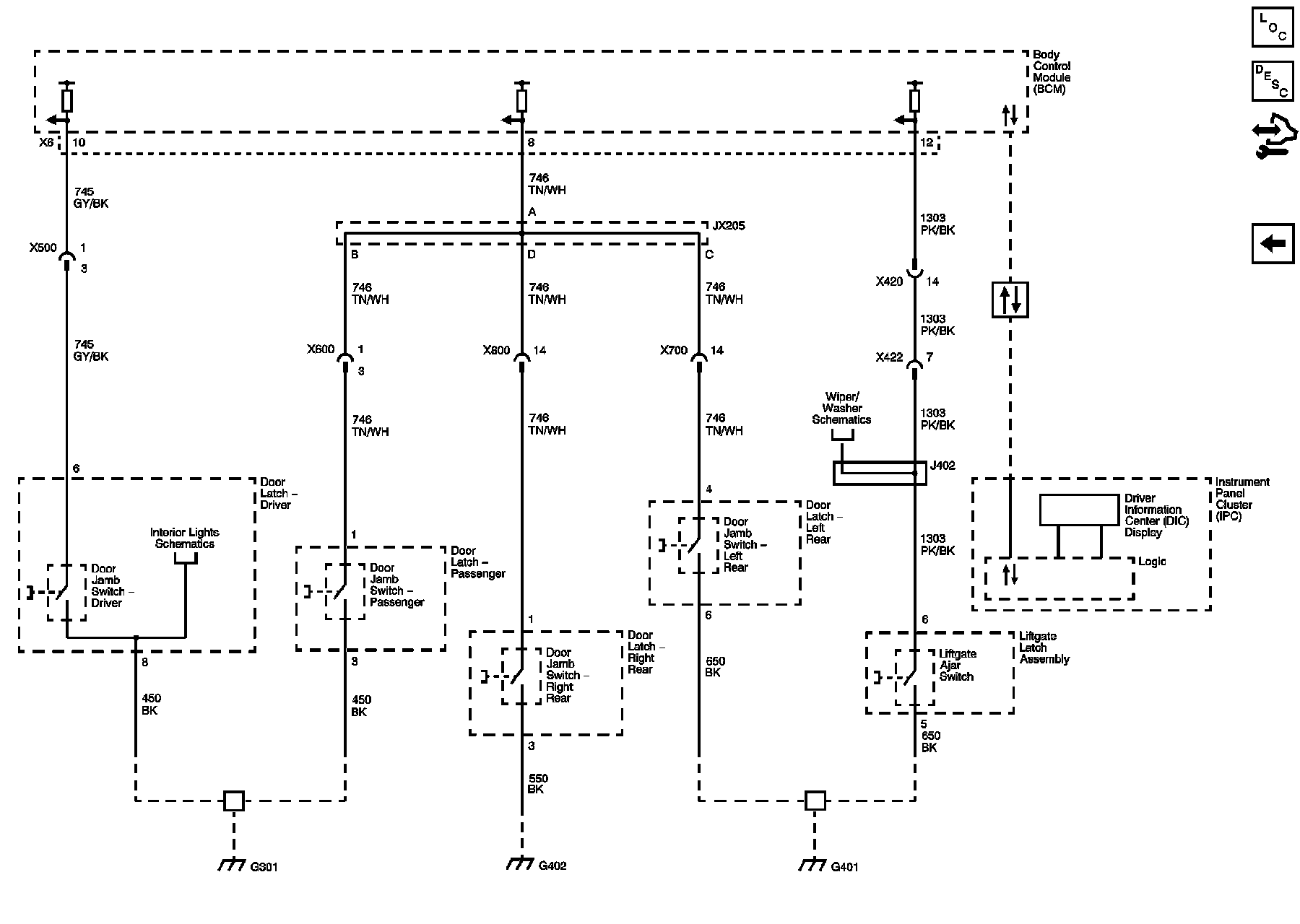

Door Lock Indicators
