Hydraulic System, Brakes




Hydraulic Brake Schematics

Brake Fluid Level and Park Brake Switches

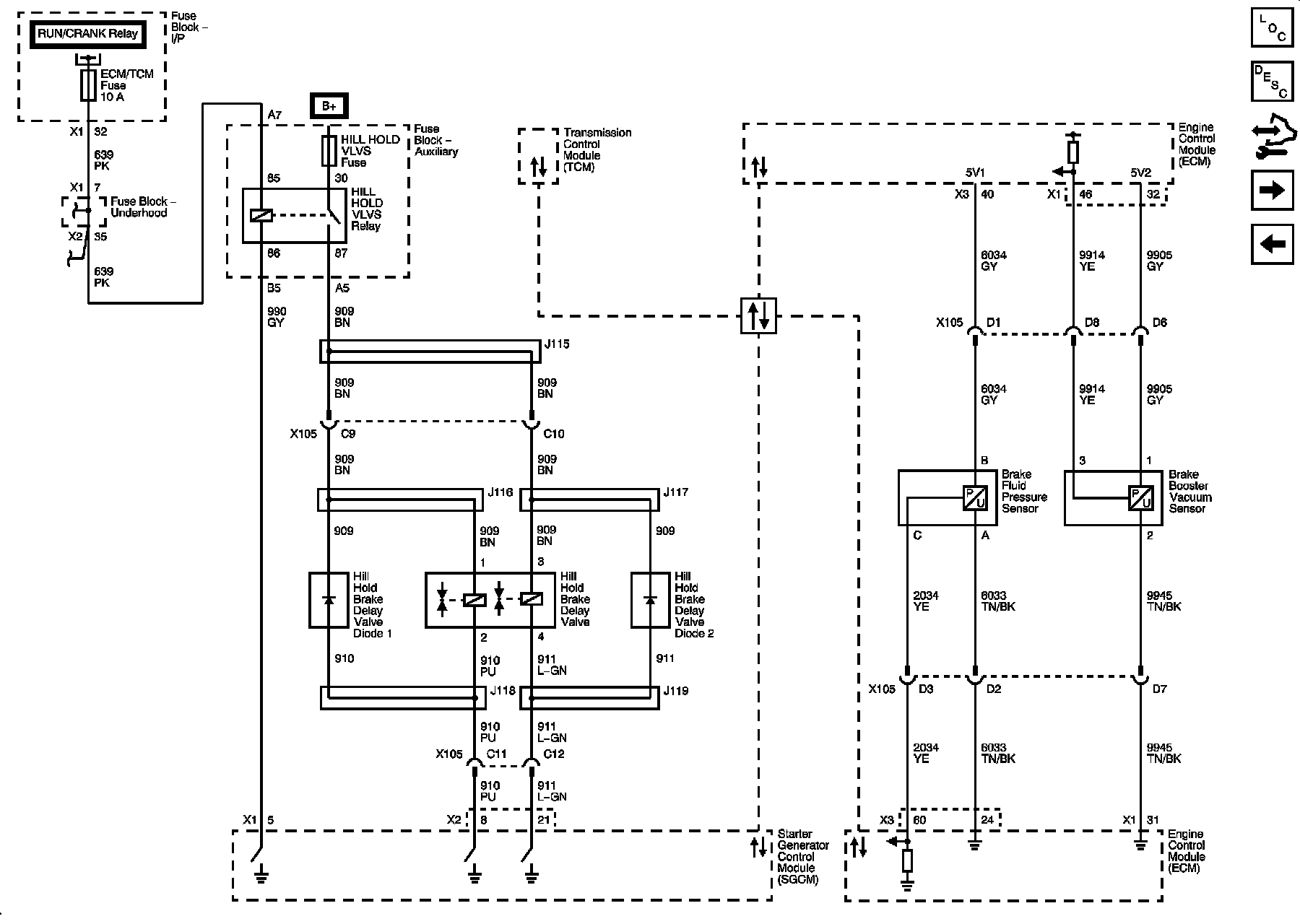

Hill Hold Valves and Sensors (HP7)
