HVAC - Automatic




HVAC Schematics

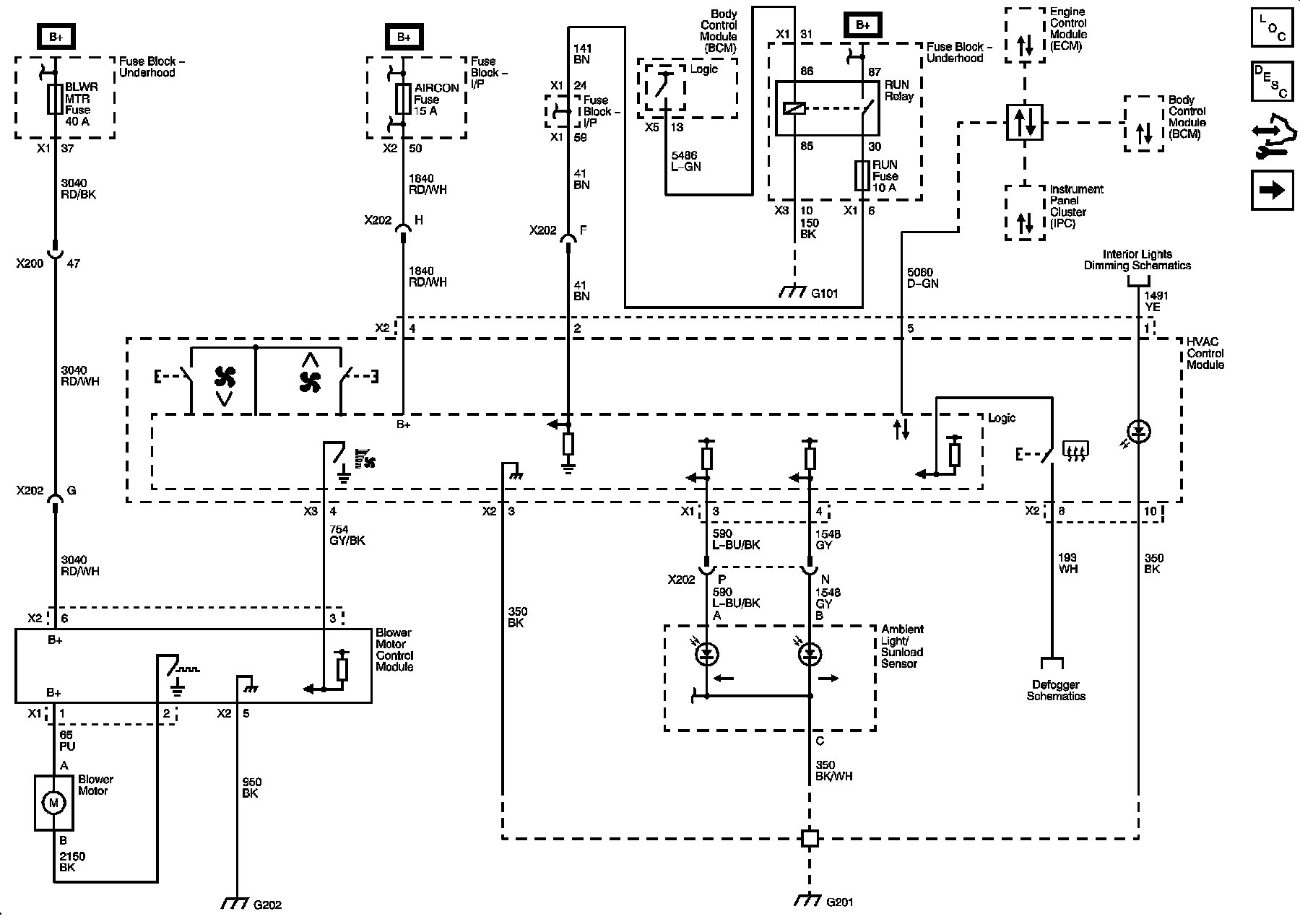

Module Power, Ground and Data Communications





Mode Controls





Data Sensors





Heater Pump Controls (HP5)





Heater Pump Controls (HP7)

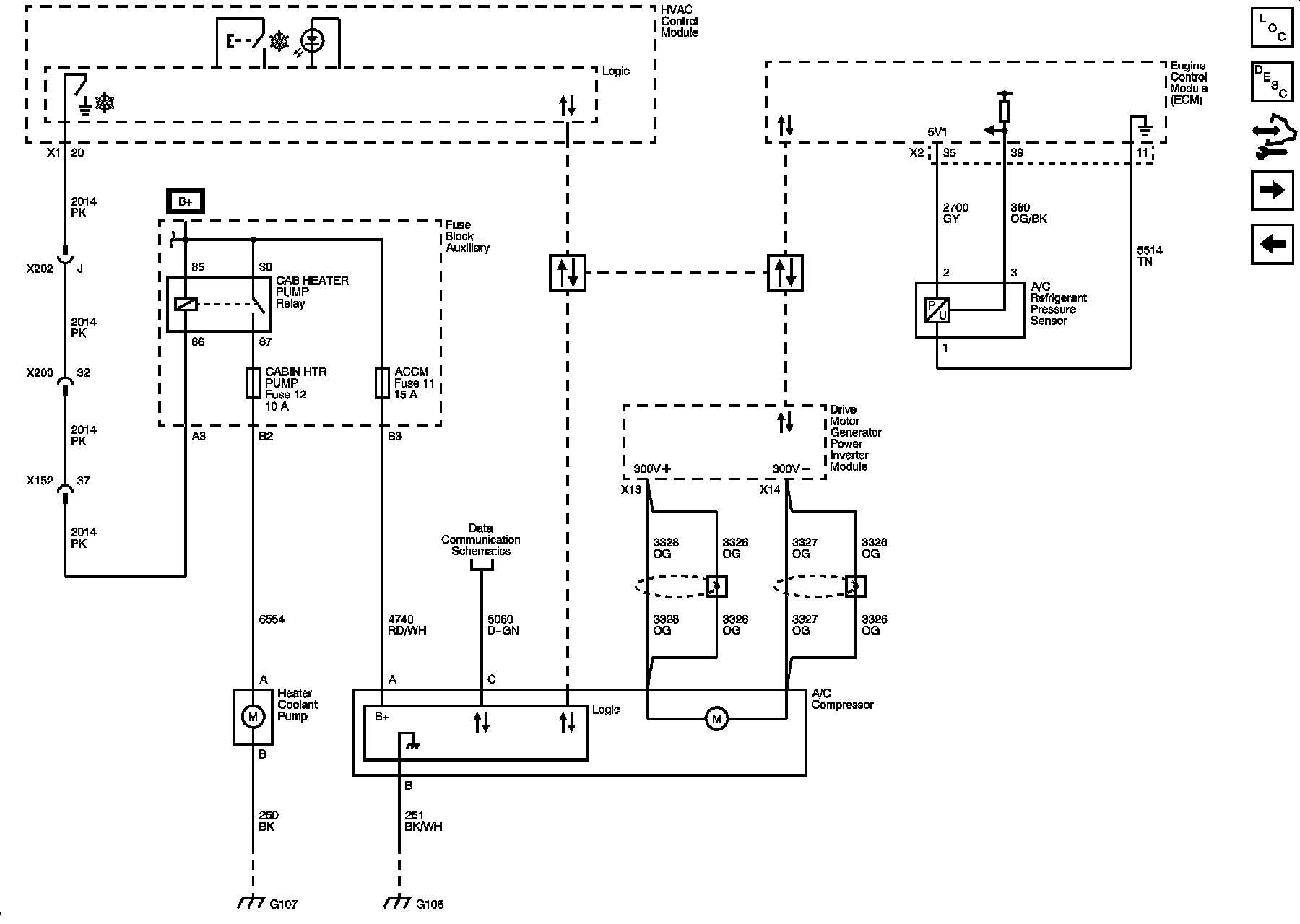

Compressor Controls
