Air Bag Systems




SIR Schematics

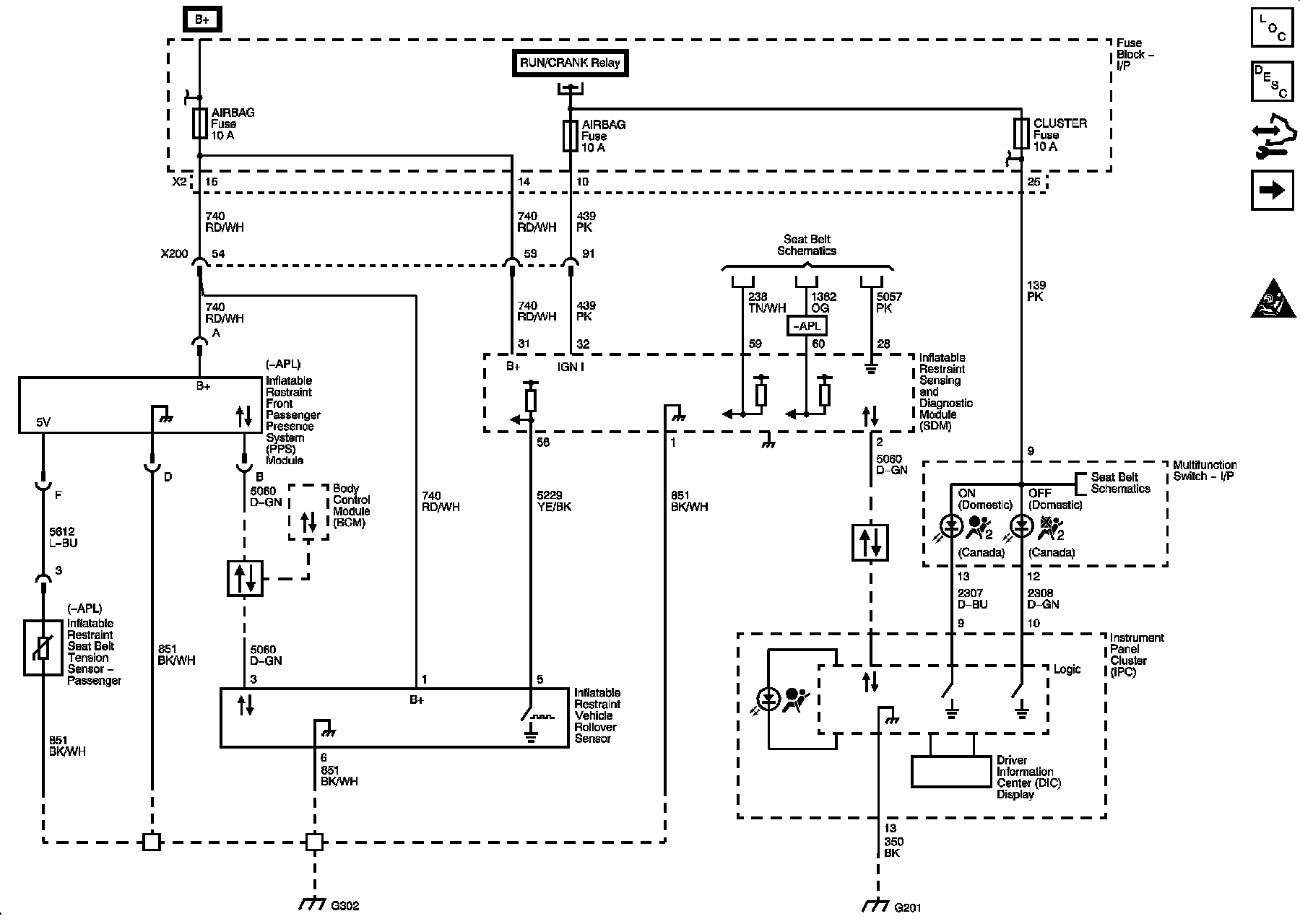

Module Power, Ground and Data Communications

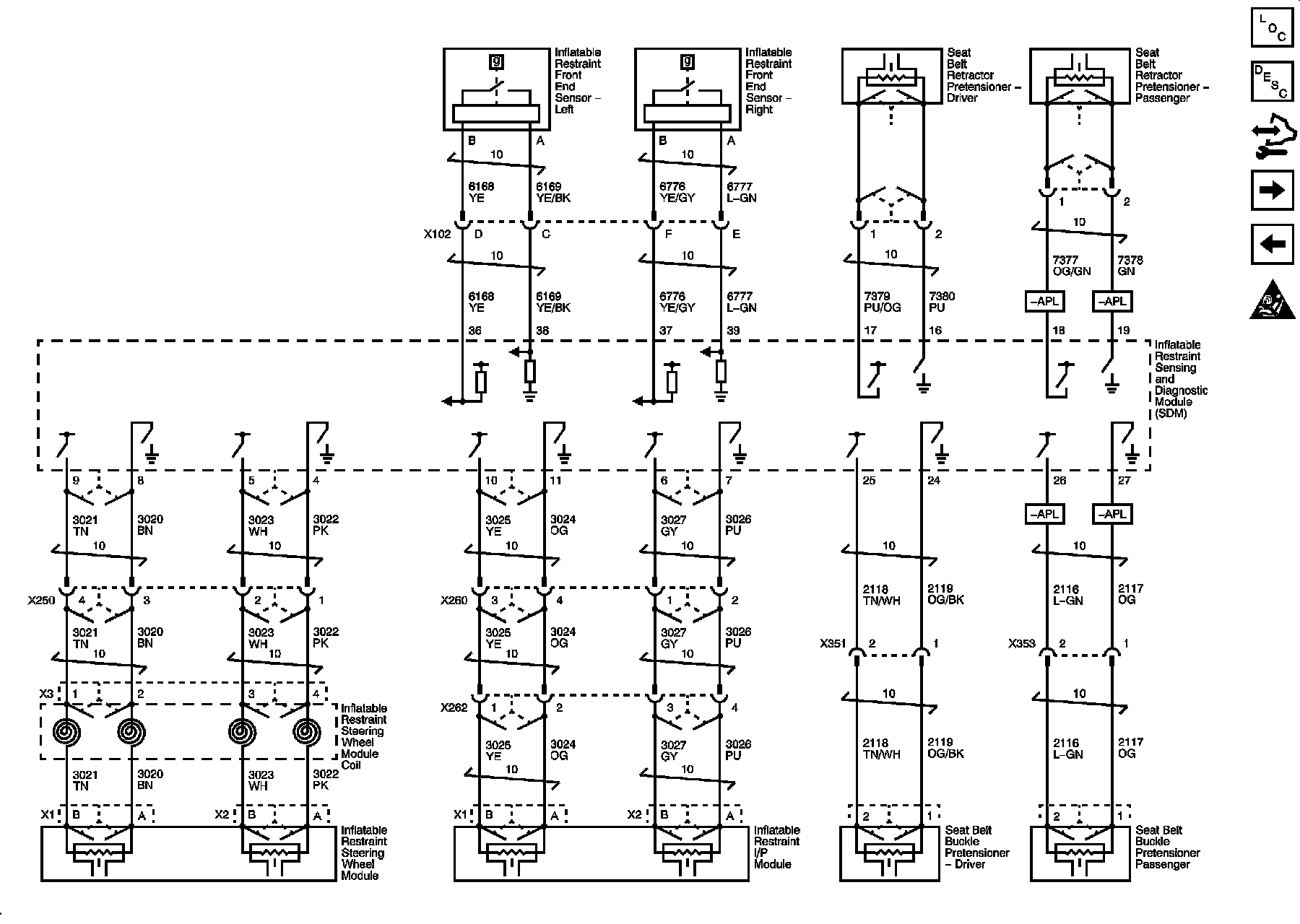

Front Sensors, Seat Belt Pretensioners

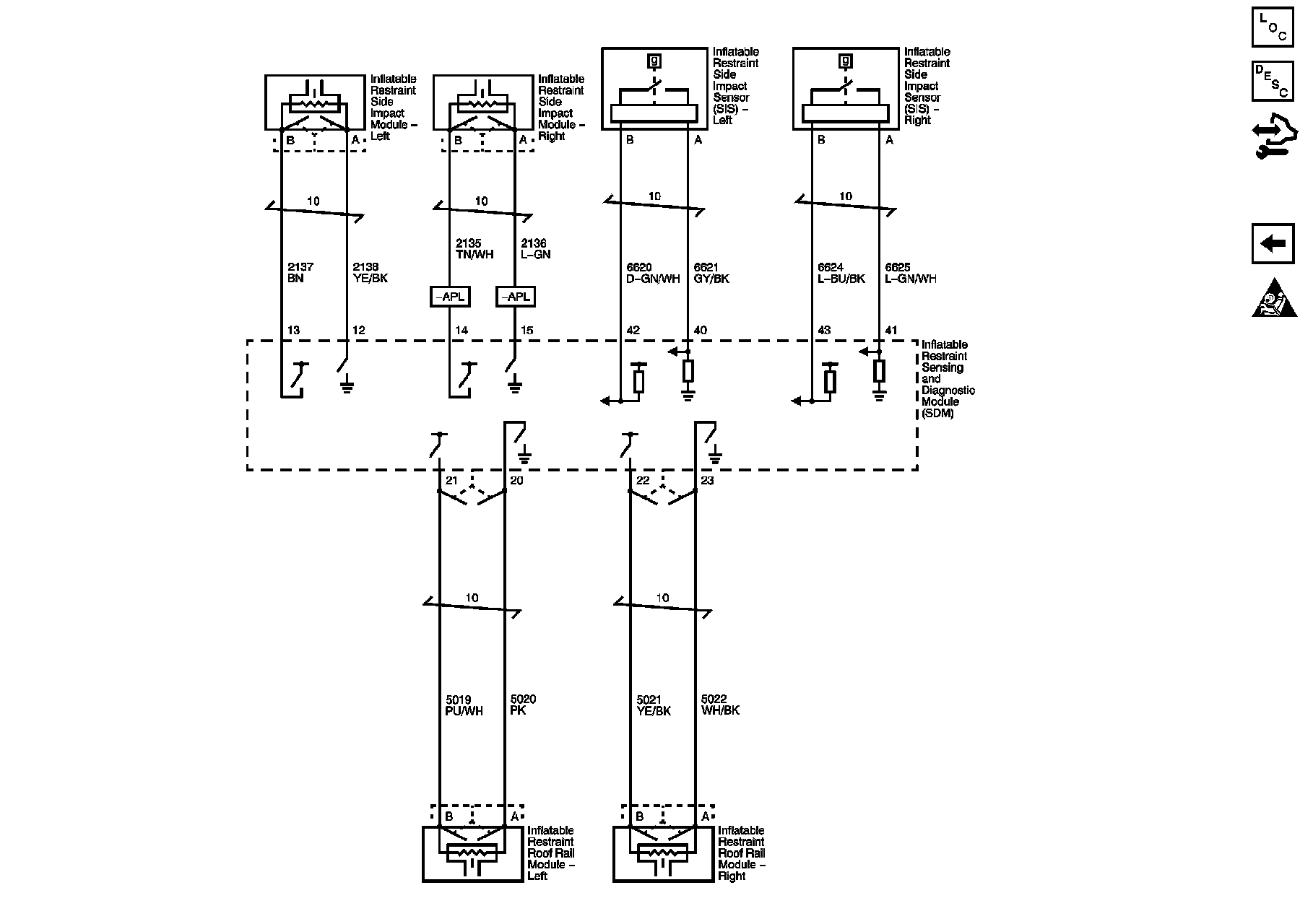

Roof Rail Modules and Side Impact Sensors
