Wheel Speed Sensor




Component Connector End Views

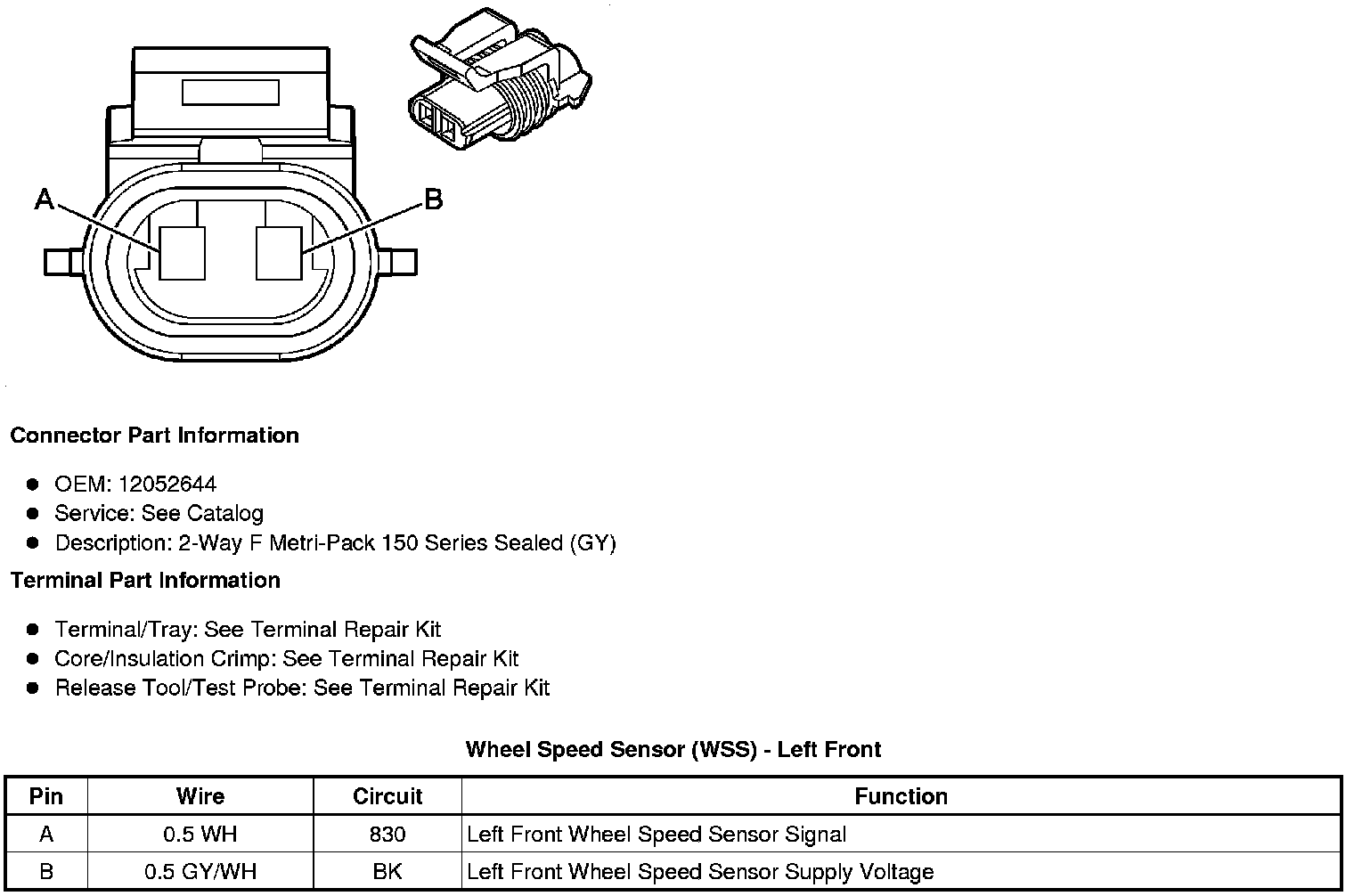

Wheel Speed Sensor (WSS) - Left Front






Wheel Speed Sensor (WSS) - Left Rear

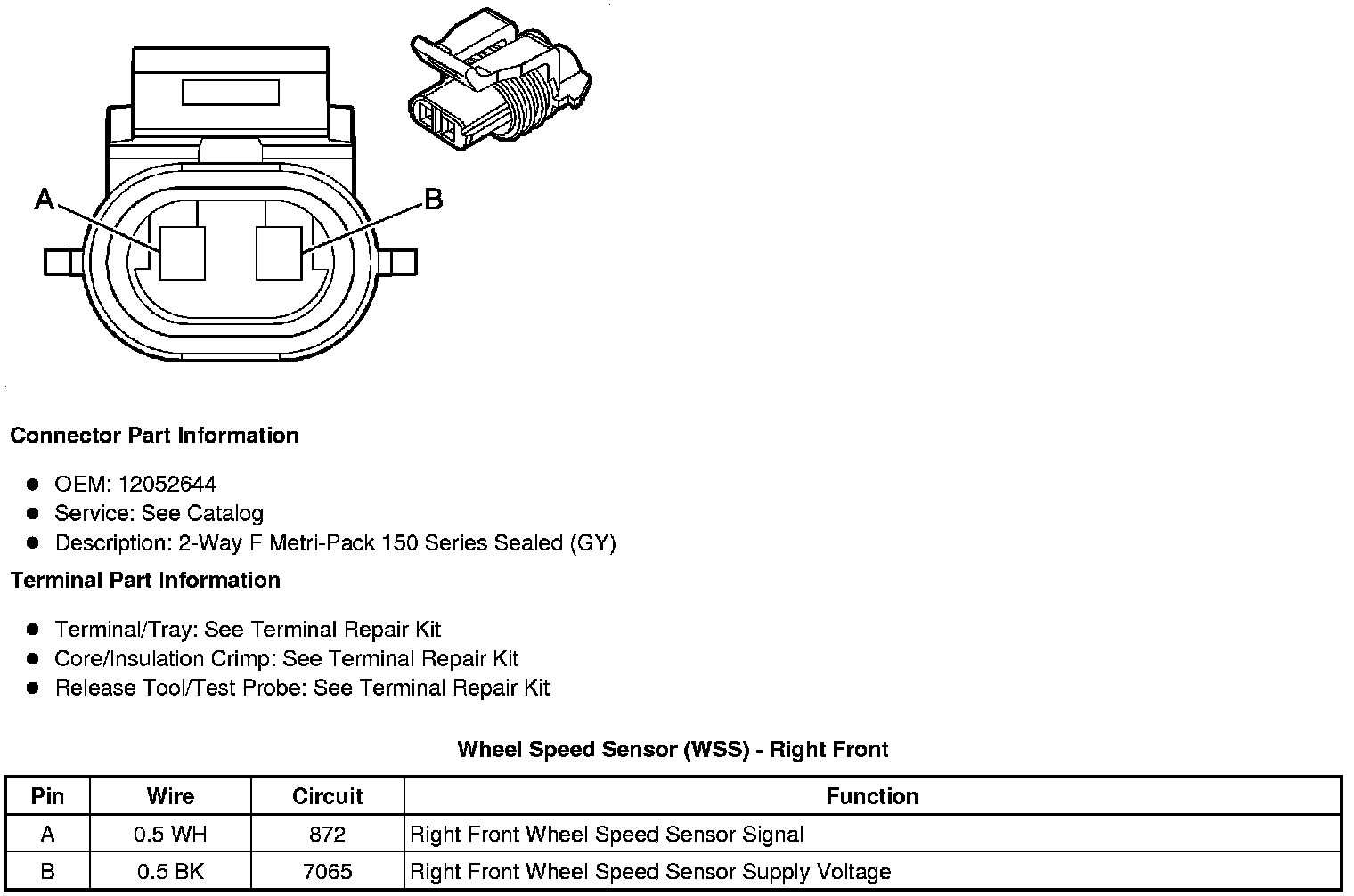

Wheel Speed Sensor (WSS) - Right Front






Wheel Speed Sensor (WSS) - Right Rear
