Transmission Position Sensor/Switch, A/T




Component Connector End Views

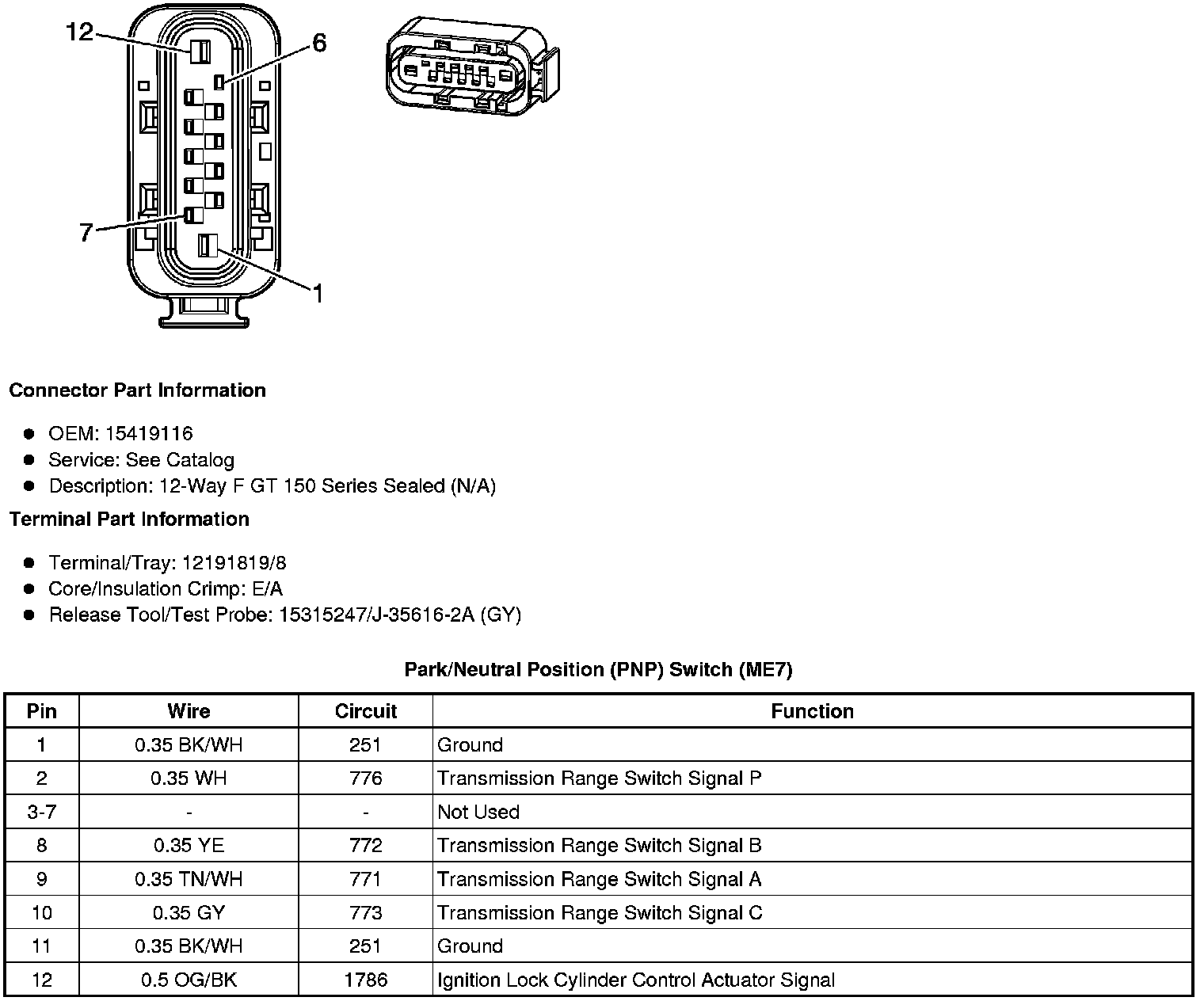

Park/Neutral Position (PNP) Switch (ME7)

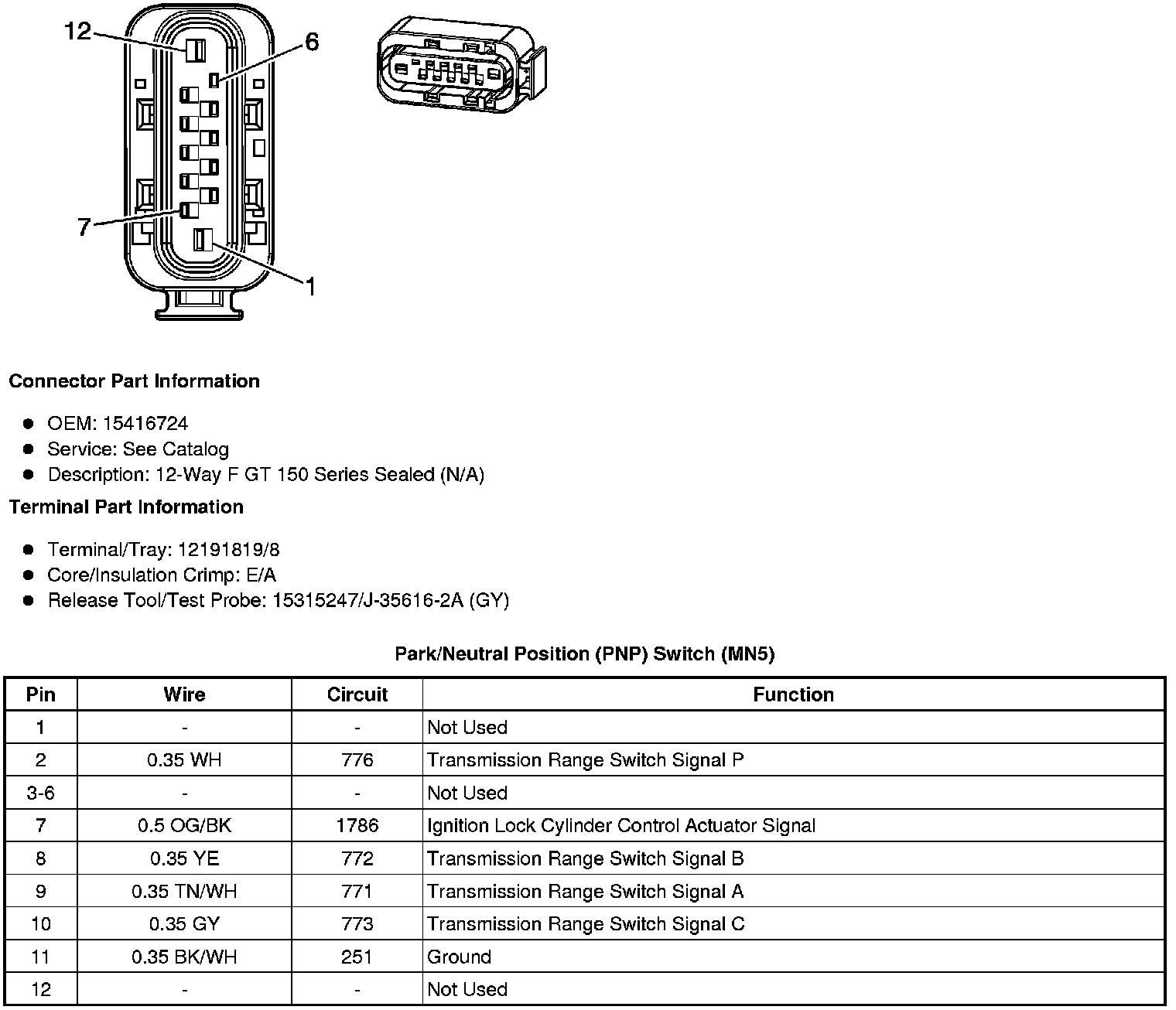

Park/Neutral Position (PNP) Switch (MN5)
