Transmission Mode Switch, A/T




Component Connector End Views

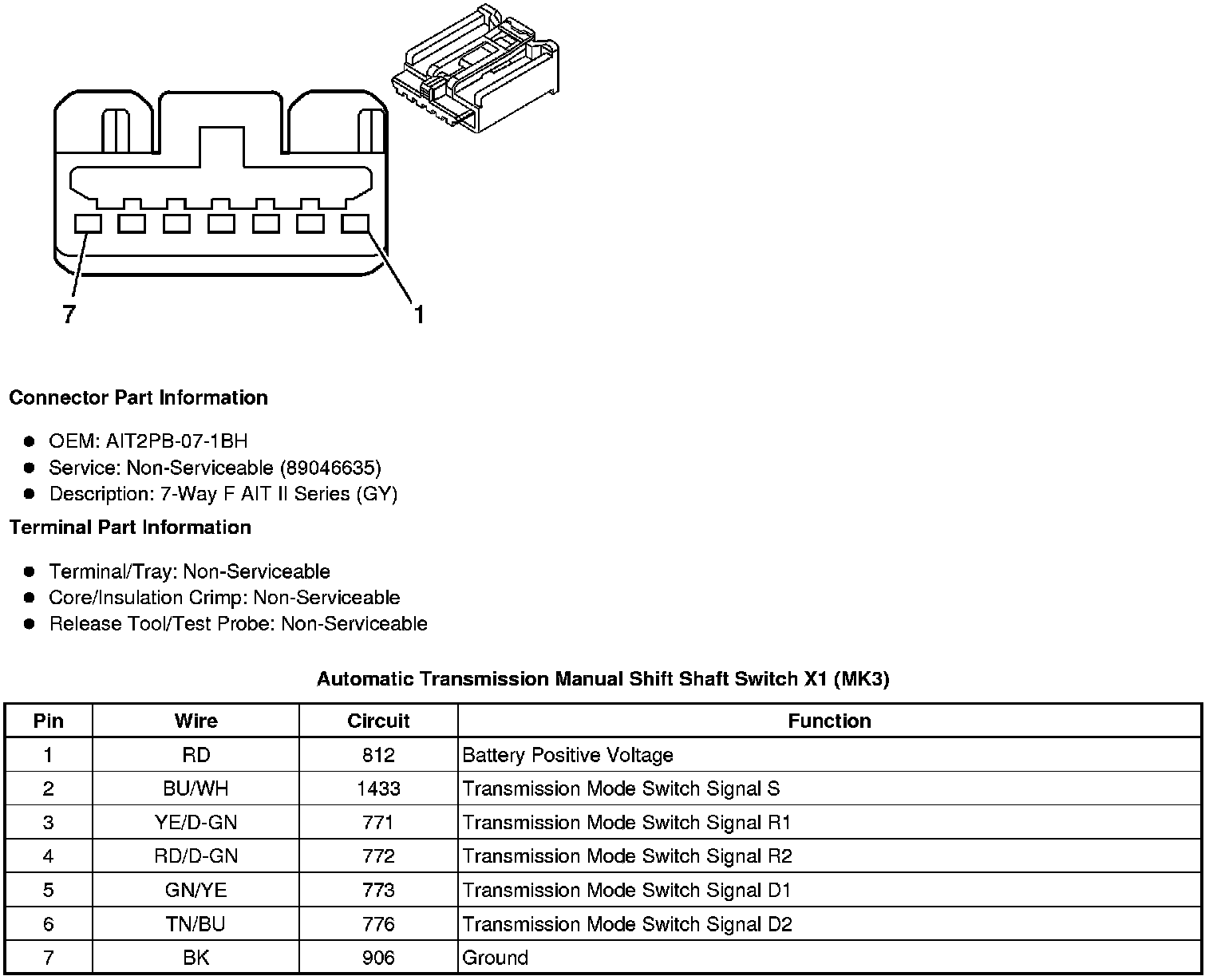

Automatic Transmission Manual Shift Shaft Switch X1 (MK3)

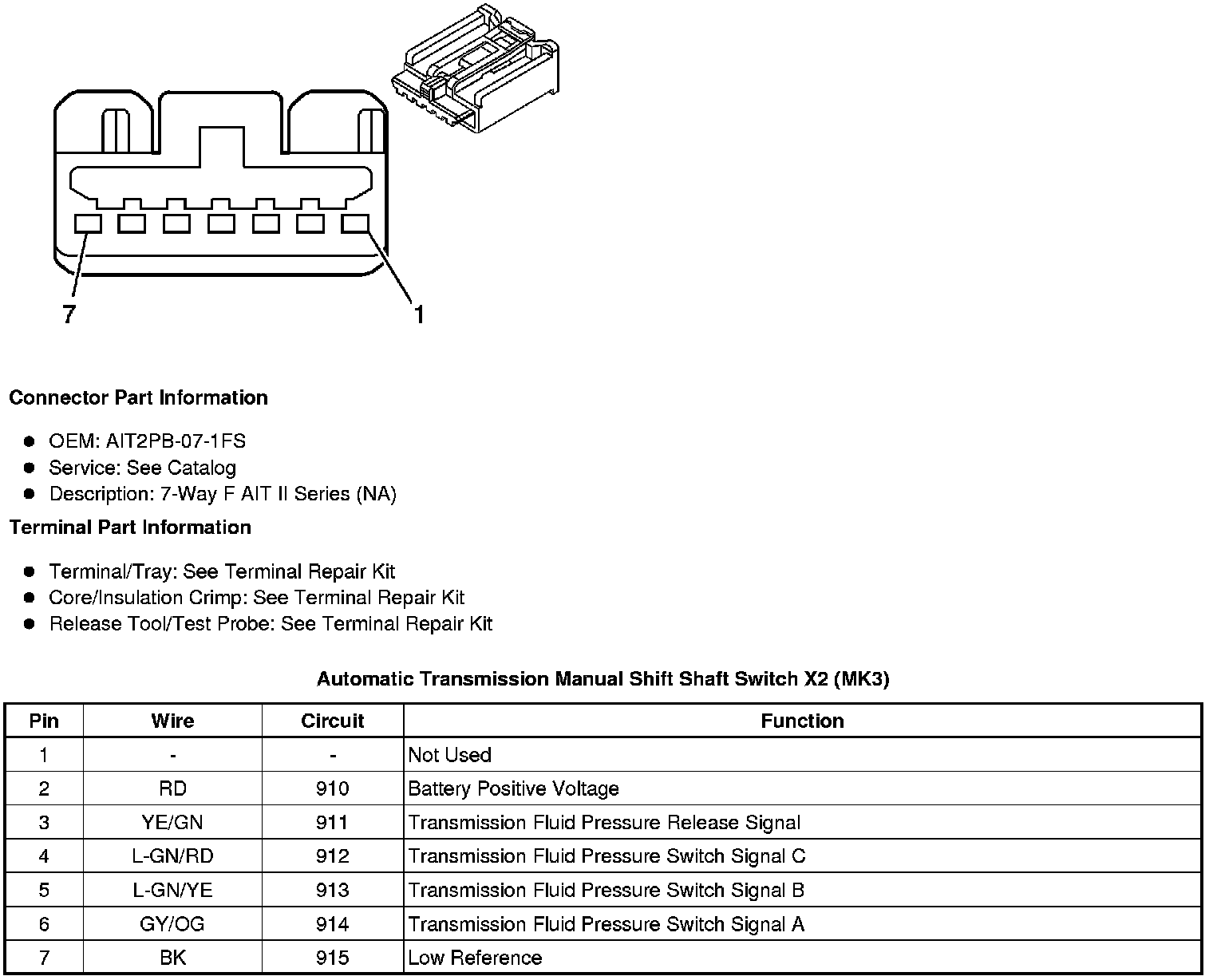

Automatic Transmission Manual Shift Shaft Switch X2 (MK3)
