Trailer Connector
Trailer Connector
Component Connector End Views

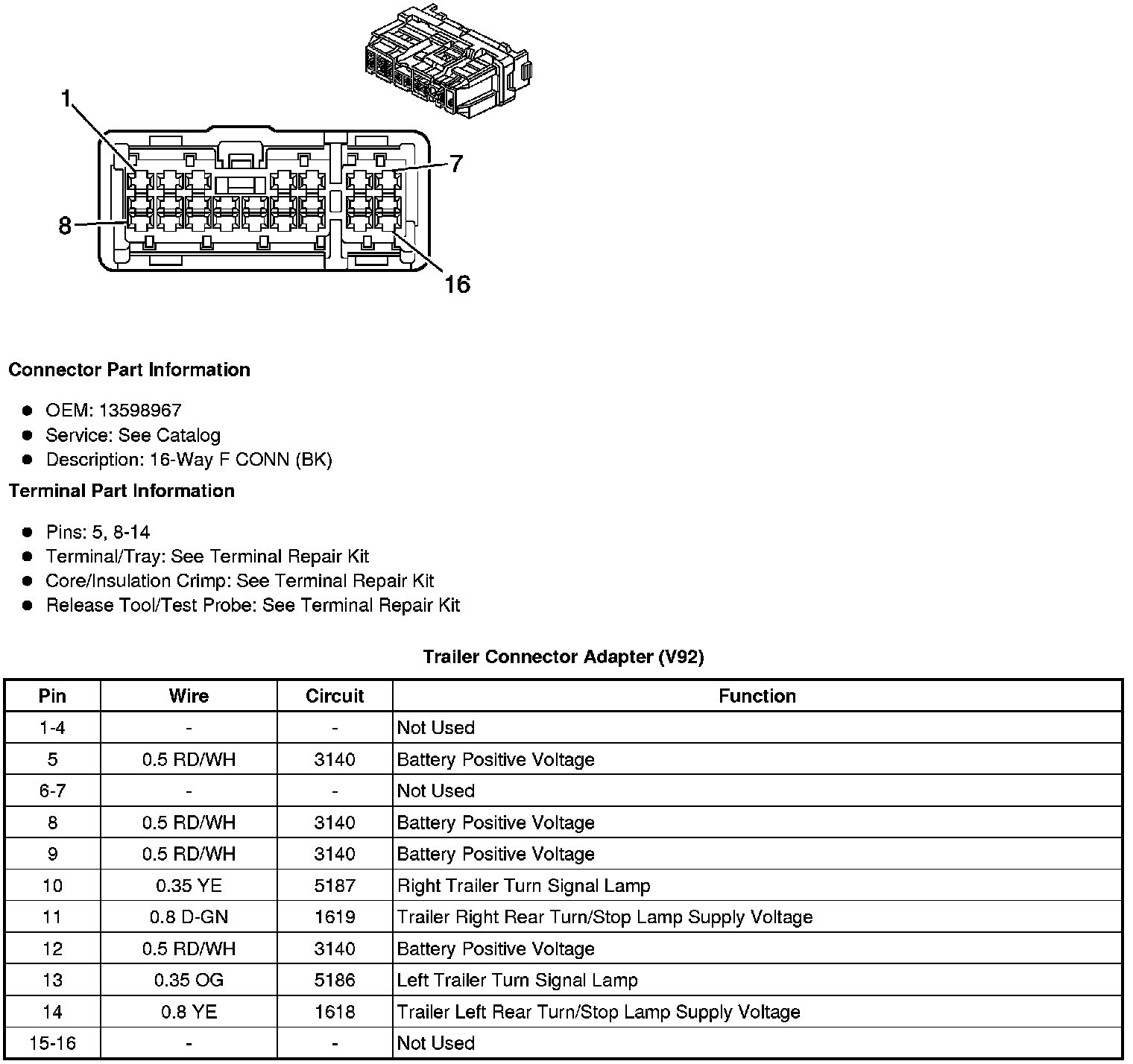

Trailer Connector
Adapter (V92)

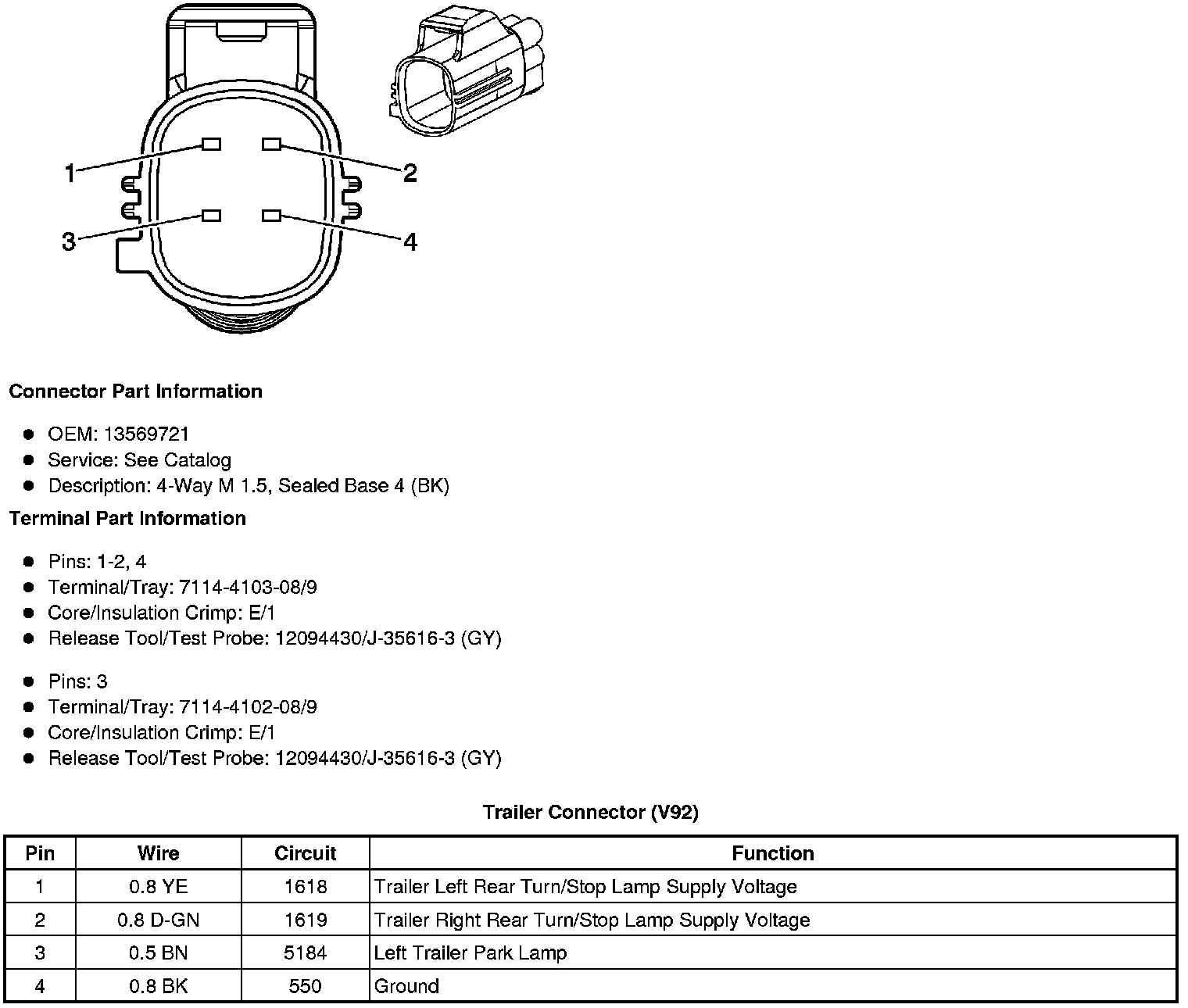

Trailer Connector
(V92)
