Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Transmitter

Steering Mounted Controls Transmitter




Component Connector End Views

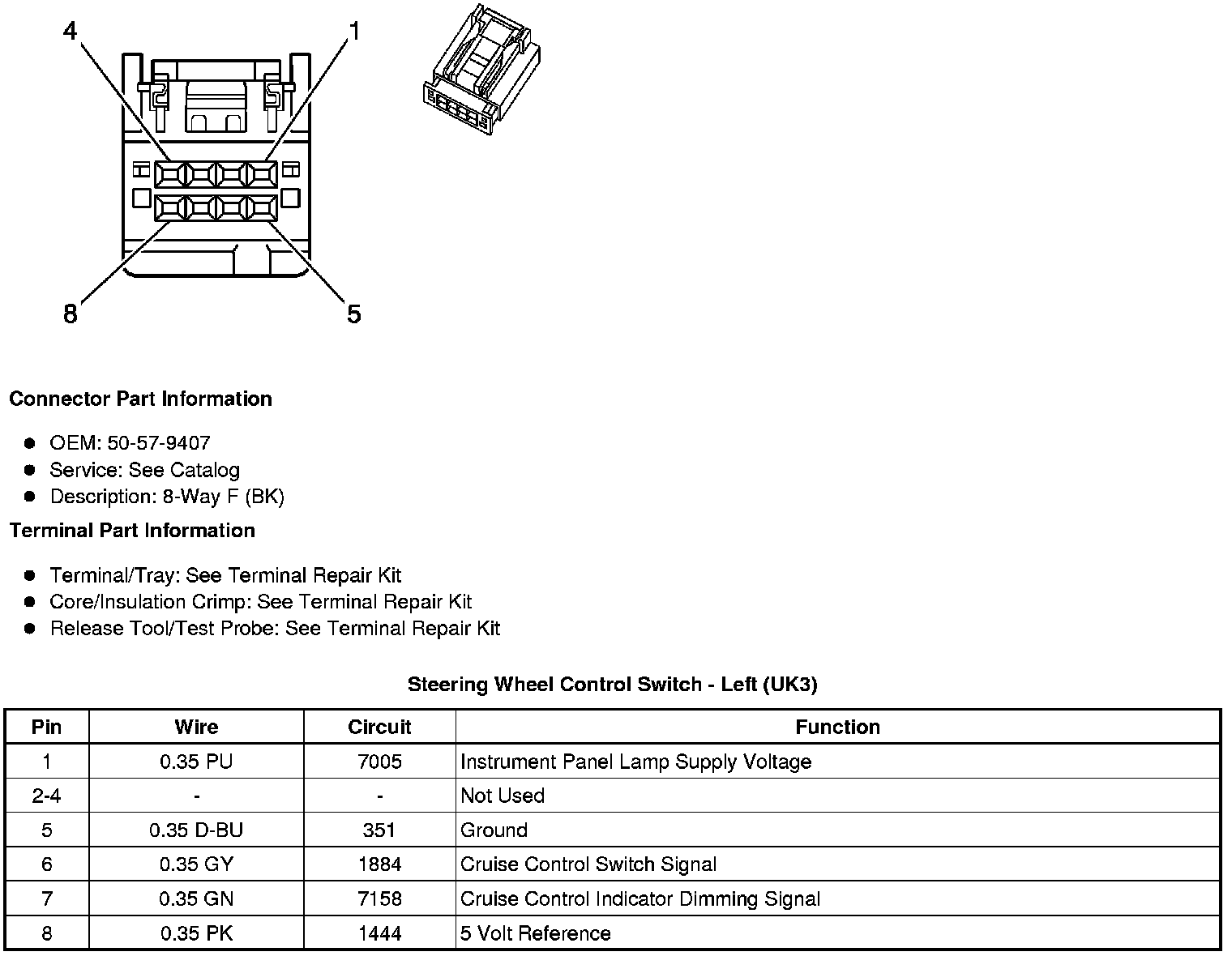

Steering Wheel Control Switch - Left (UK3)

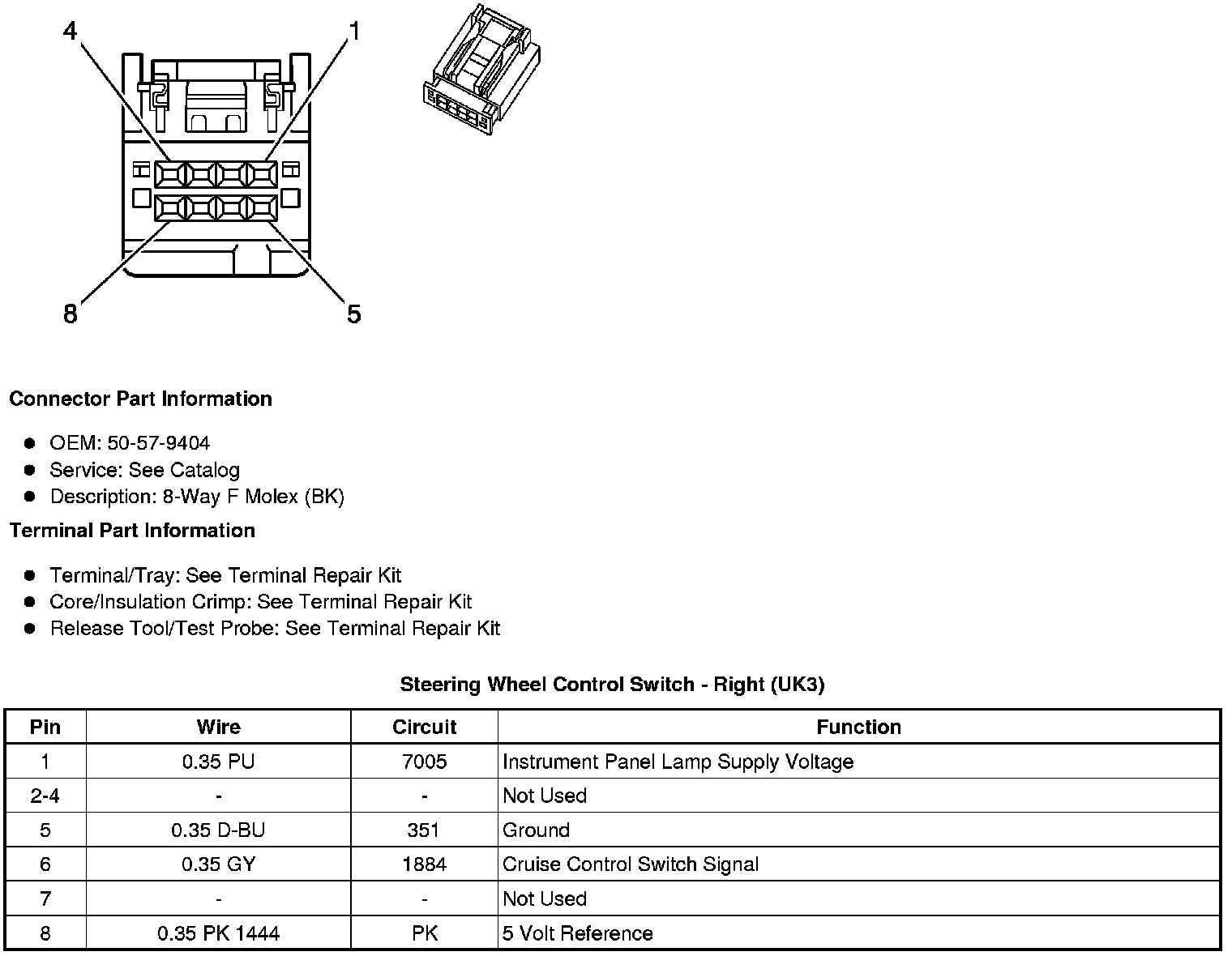

Steering Wheel Control Switch - Right (UK3)
