Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shifter A/T

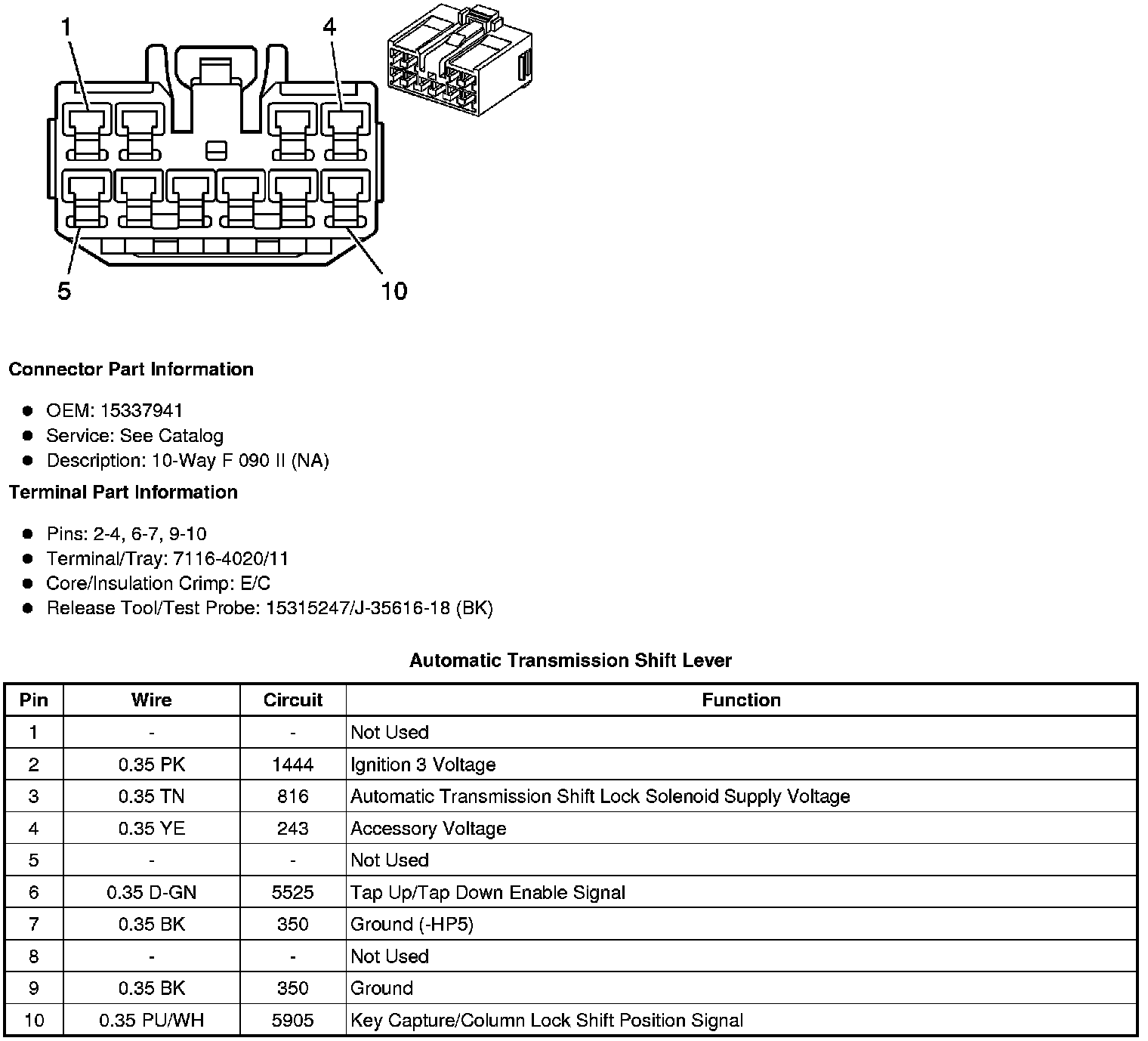

Shifter A/T

Component Connector End Views

Automatic Transmission Shift Lever
