Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Tensioner

Seat Belt Tensioner




Component Connector End Views

Seat Belt Buckle Pretensioner - Driver

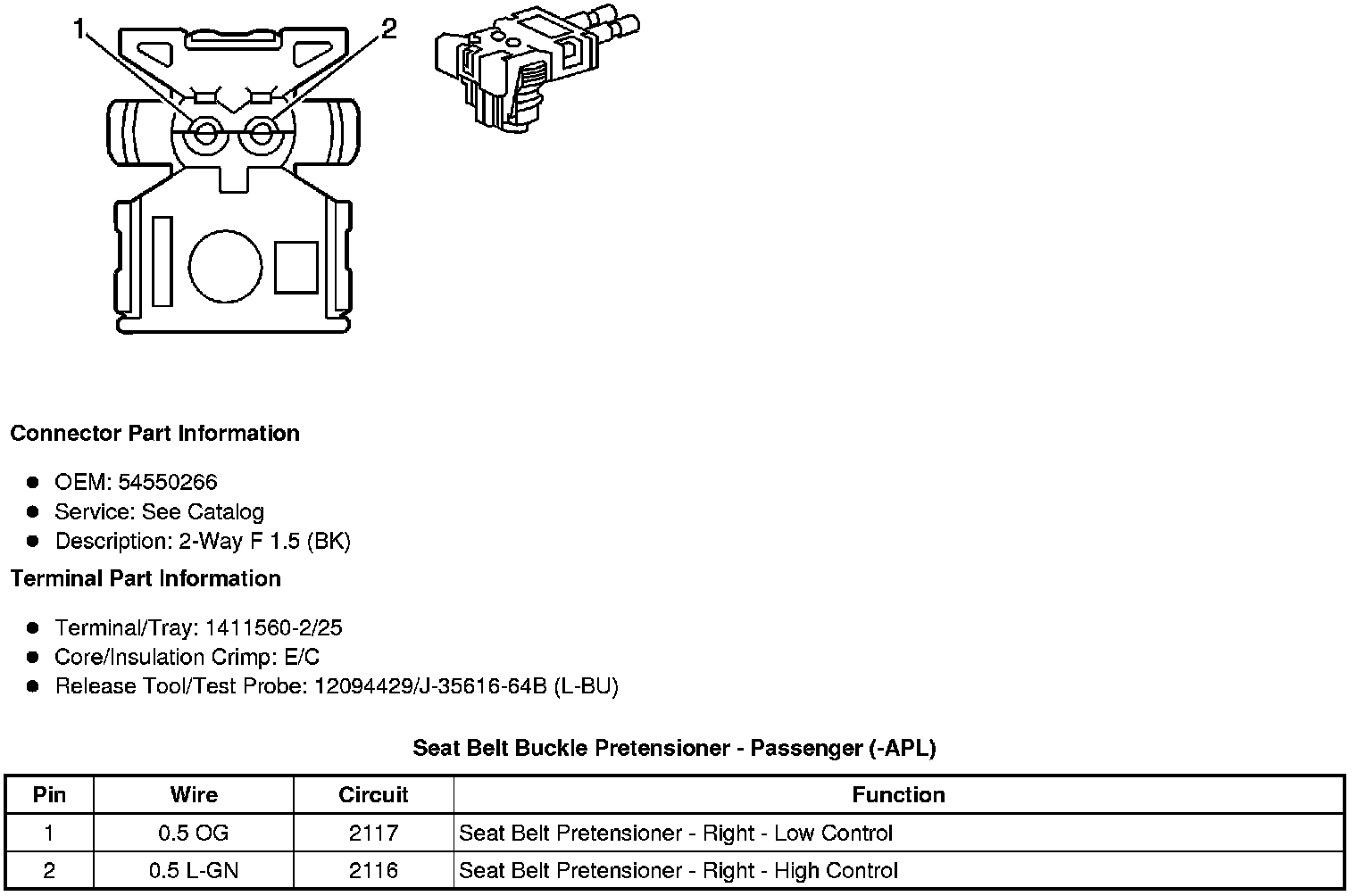

Seat Belt Buckle Pretensioner - Passenger (-APL)

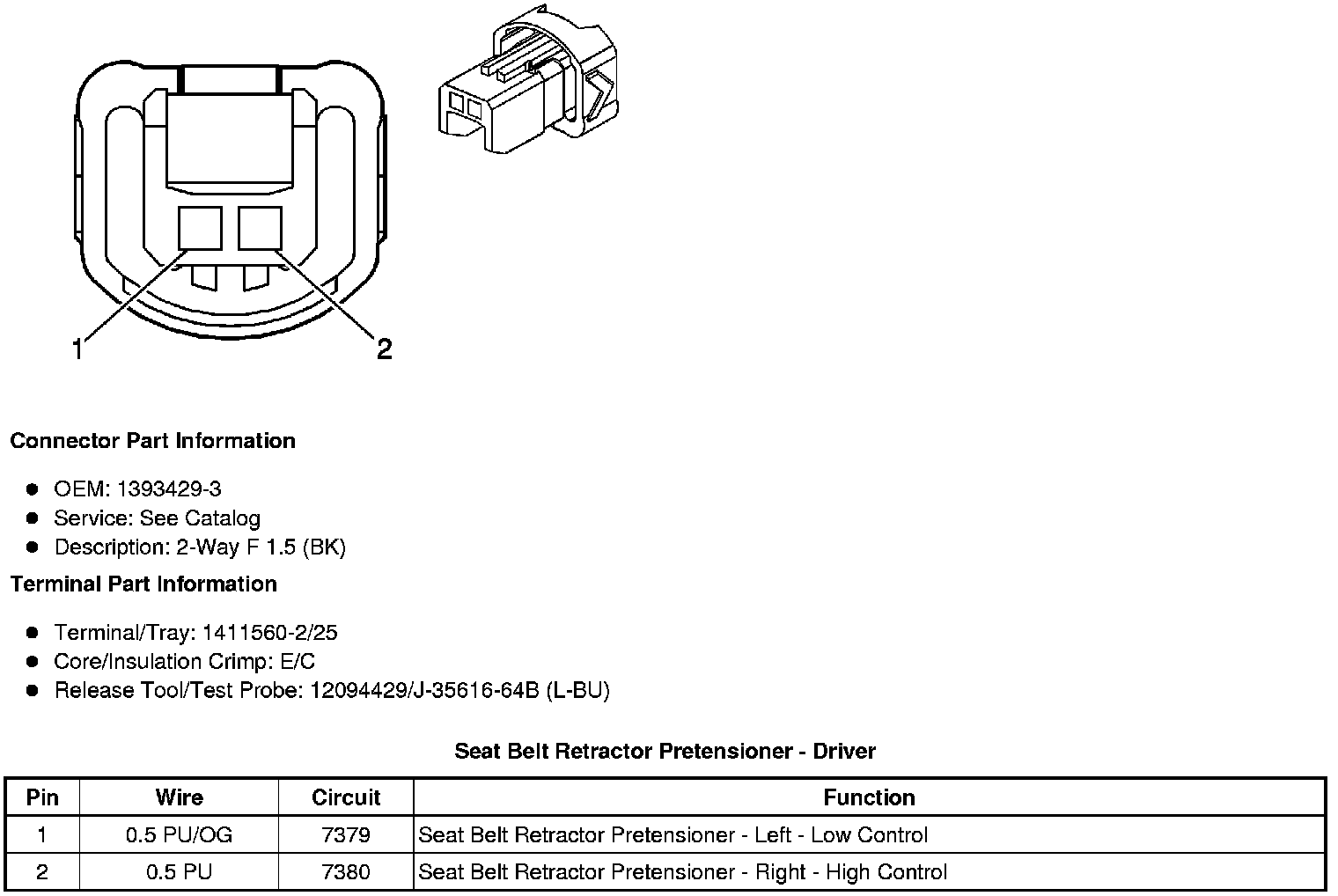

Seat Belt Retractor Pretensioner - Driver

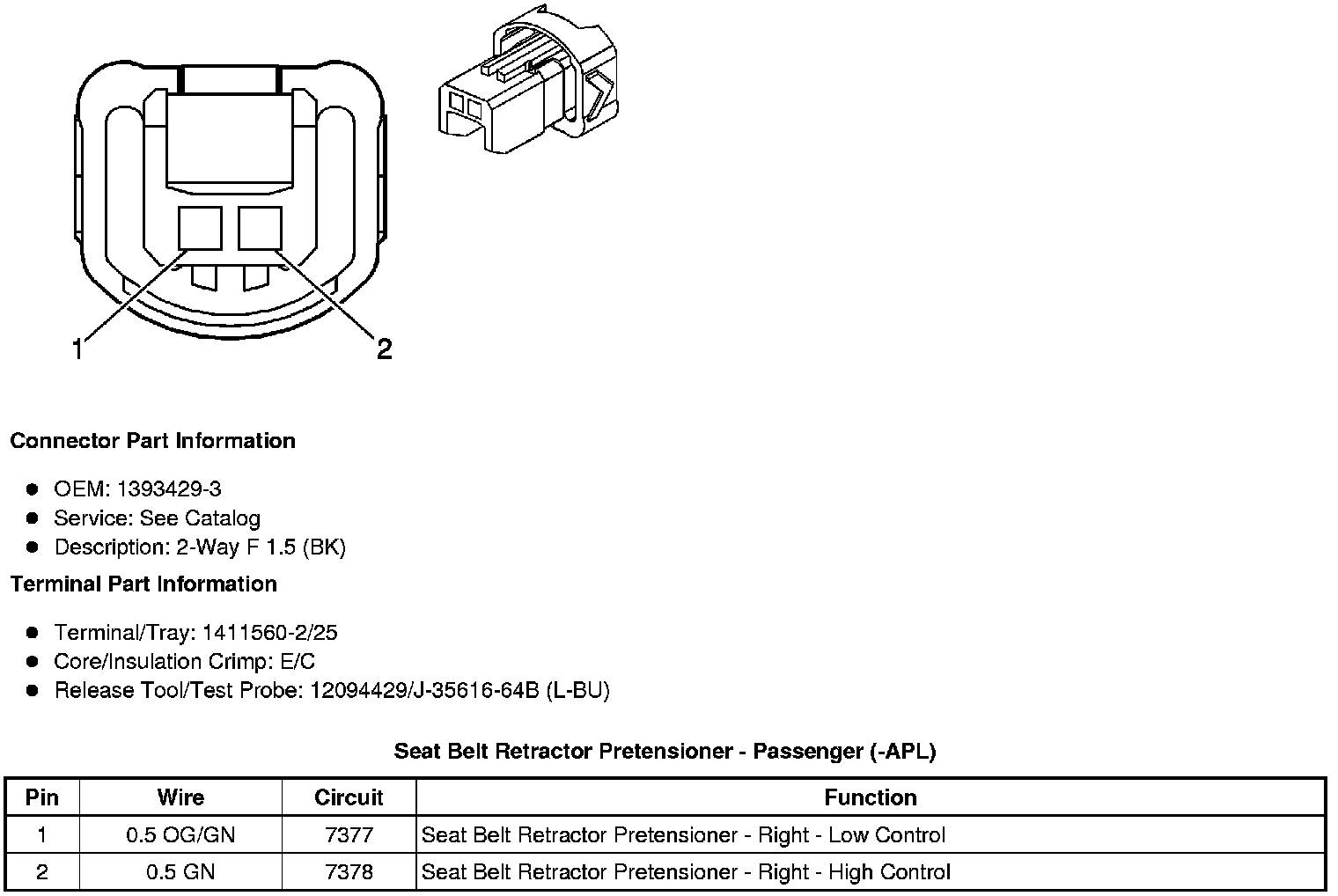

Seat Belt Retractor Pretensioner - Passenger (-APL)
