Seat Belt Buckle Switch




Component Connector End Views

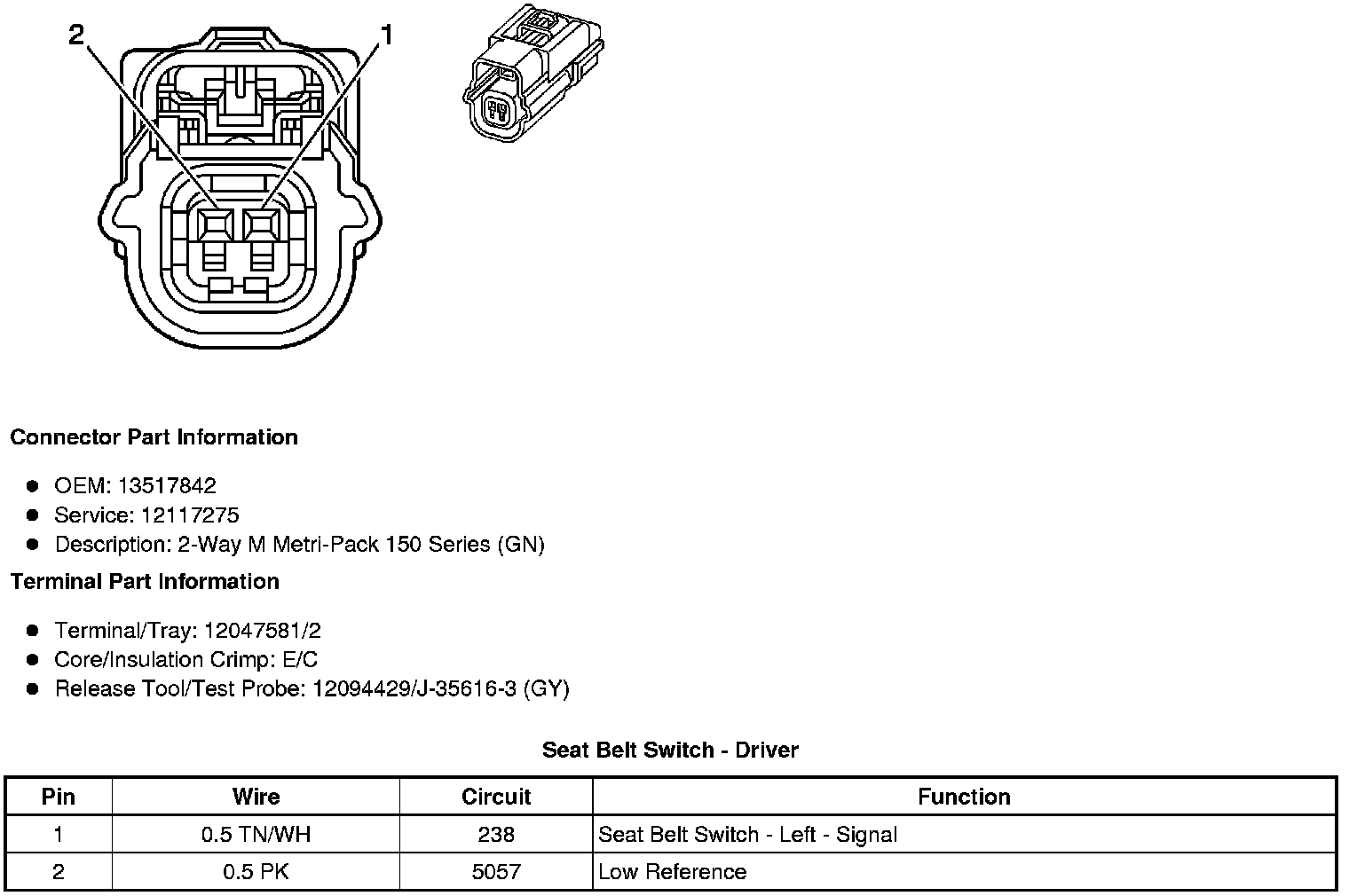

Seat Belt Switch - Driver






Seat Belt Switch - Passenger (without APL)
