Radio/Stereo




Component Connector End Views

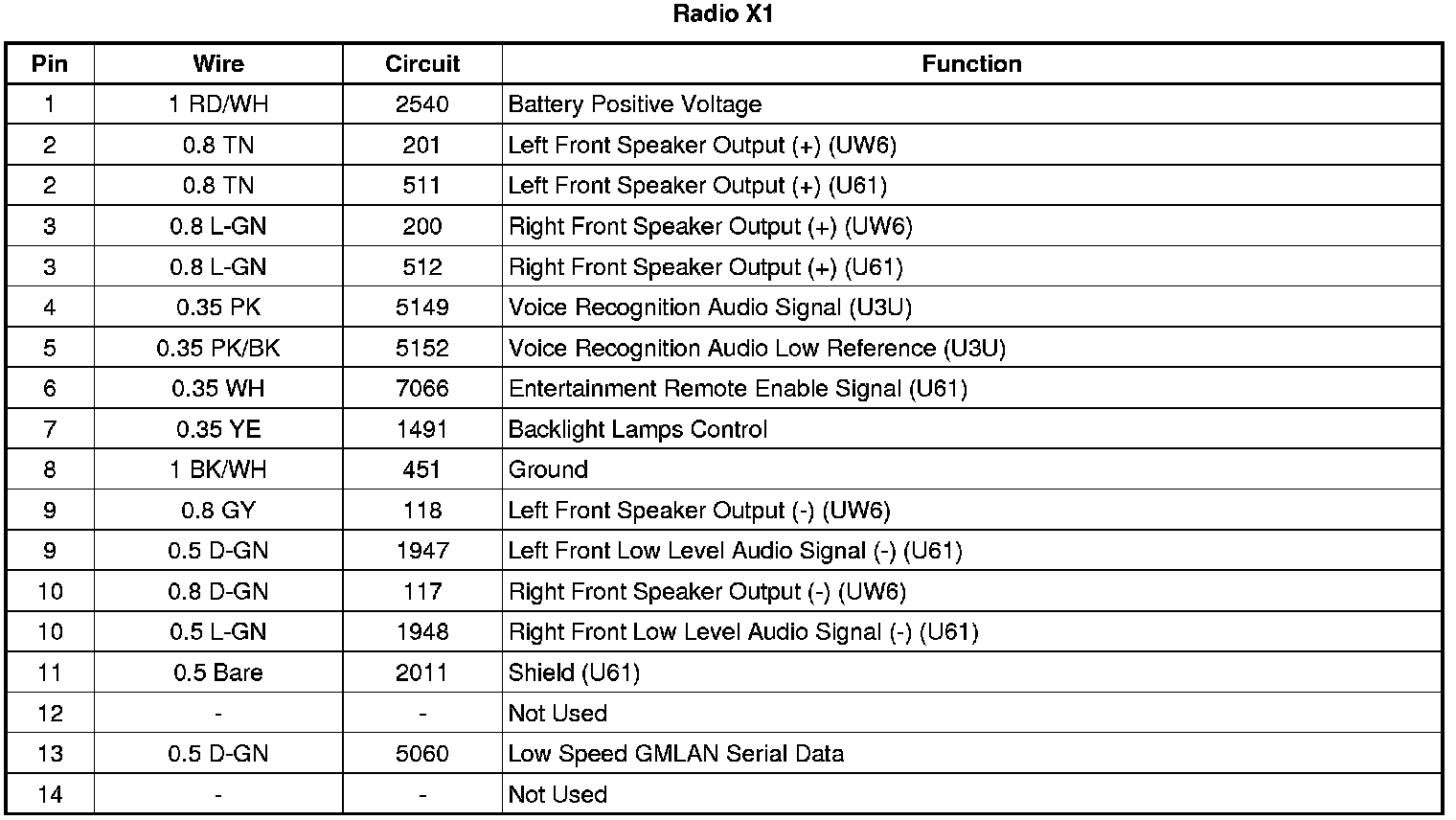

Radio X1

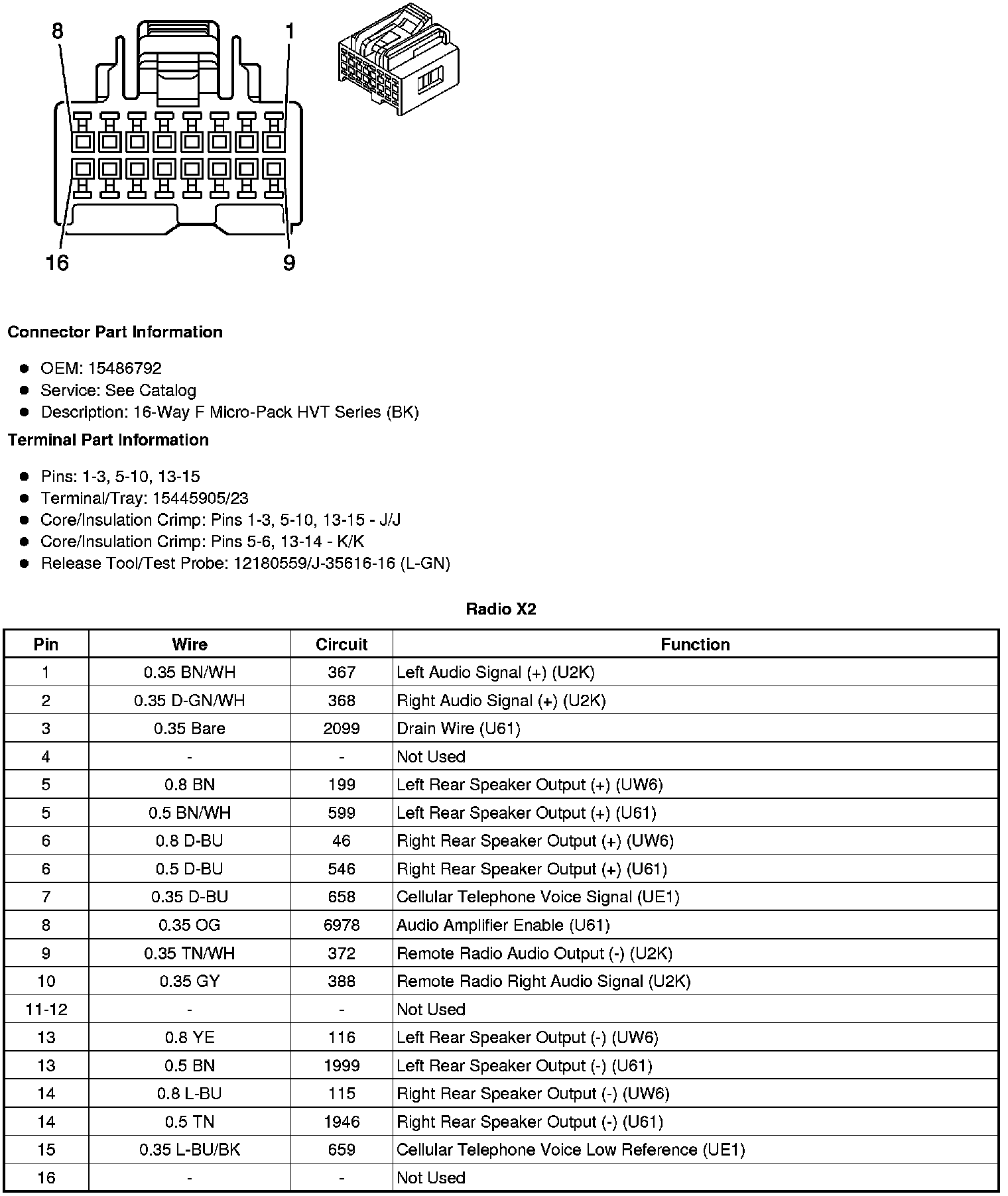

Radio X2






Radio X4 (U3U)

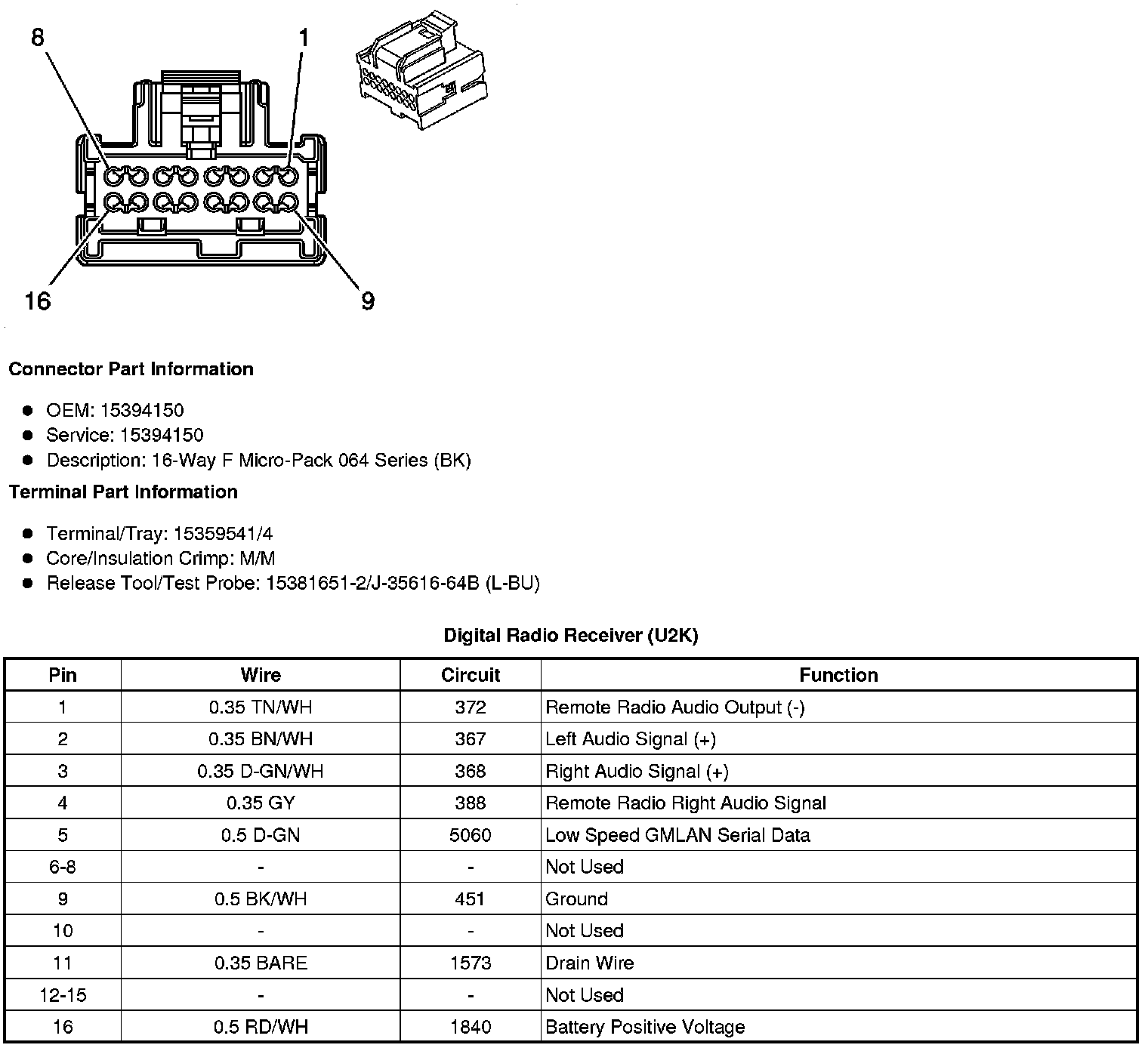

Digital Radio Receiver (U2K)
