Radiator Cooling Fan




Component Connector End Views

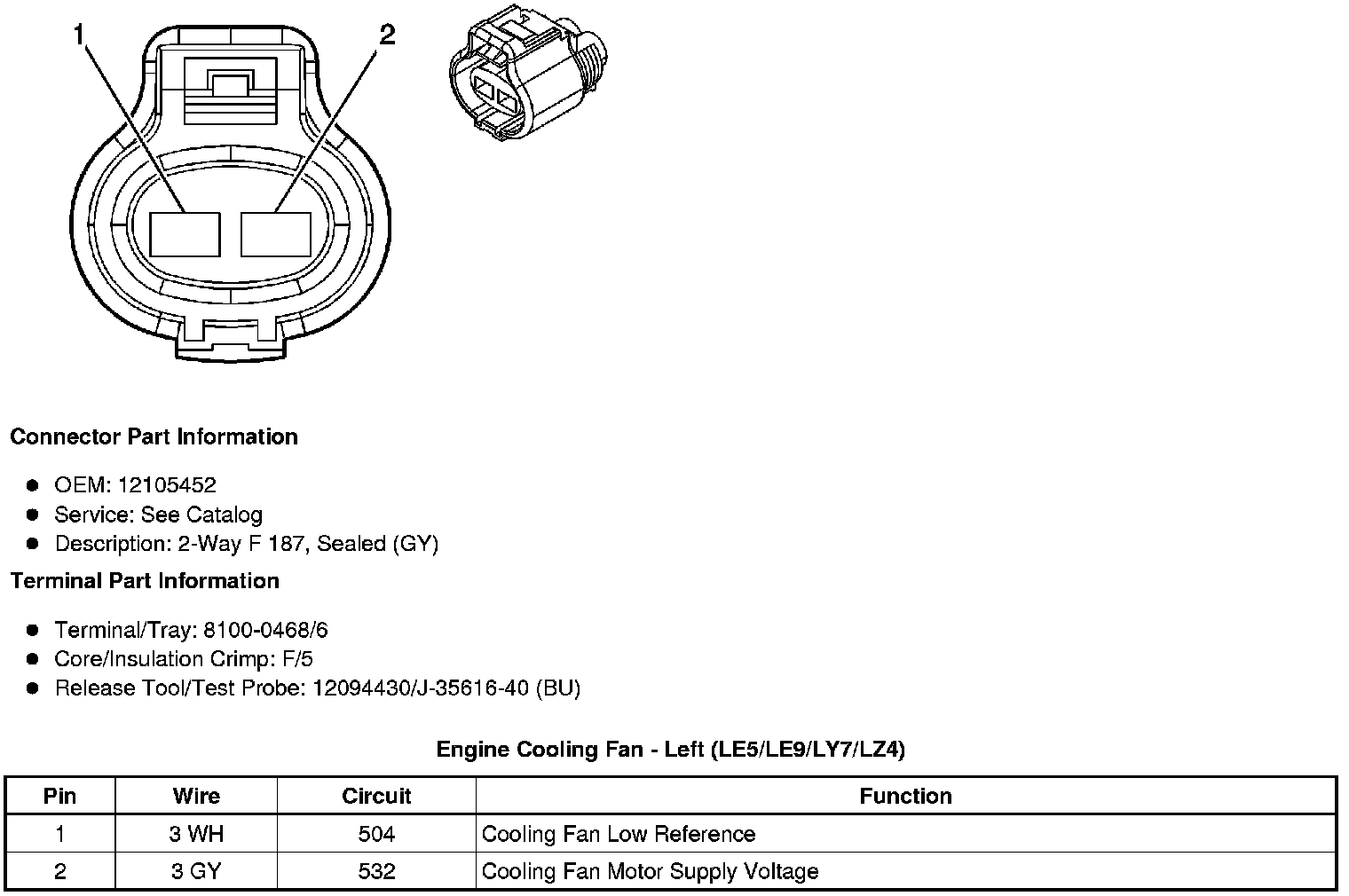

Engine Cooling Fan - Left (LE5/LE9/LY7/LZ4)

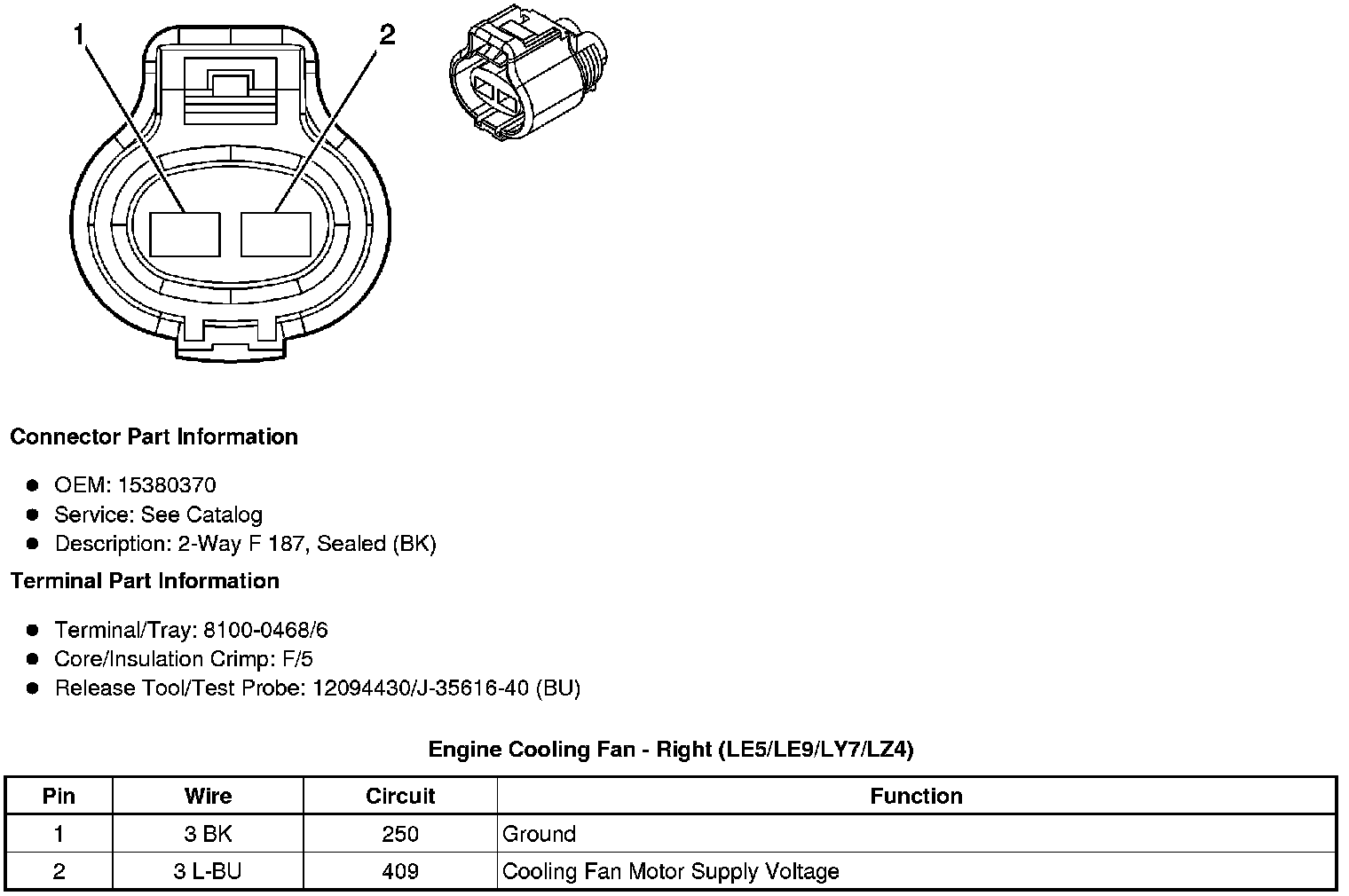

Engine Cooling Fan - Right (LE5/LE9/LY7/LZ4)
