Power Seat Switch
Power Seat Switch

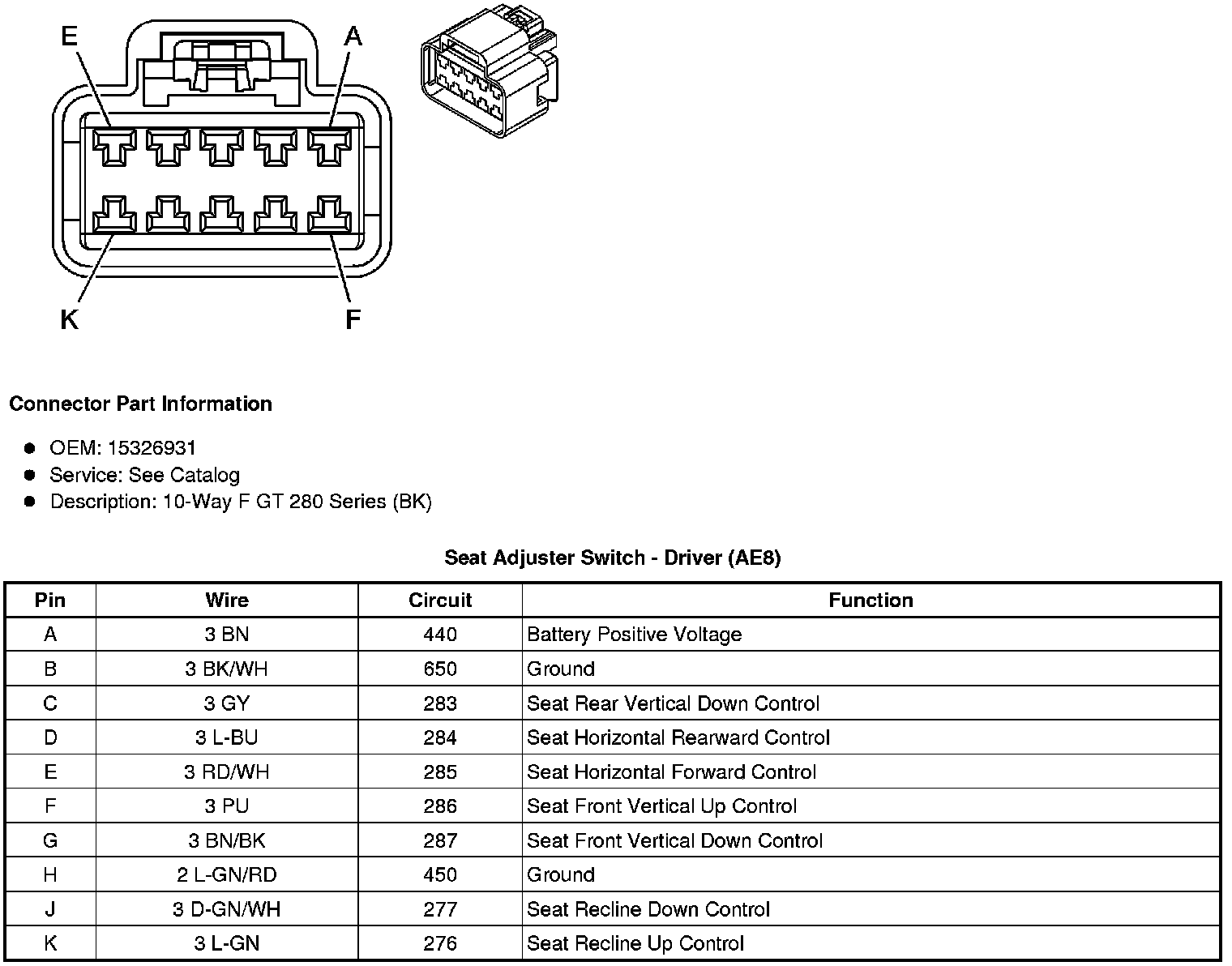

Component Connector End Views
Seat Adjuster Switch - Driver (AE8)
