Saturn
>>
2009
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X700 - X799
>>
X700
X700
Inline Harness Connector End Views

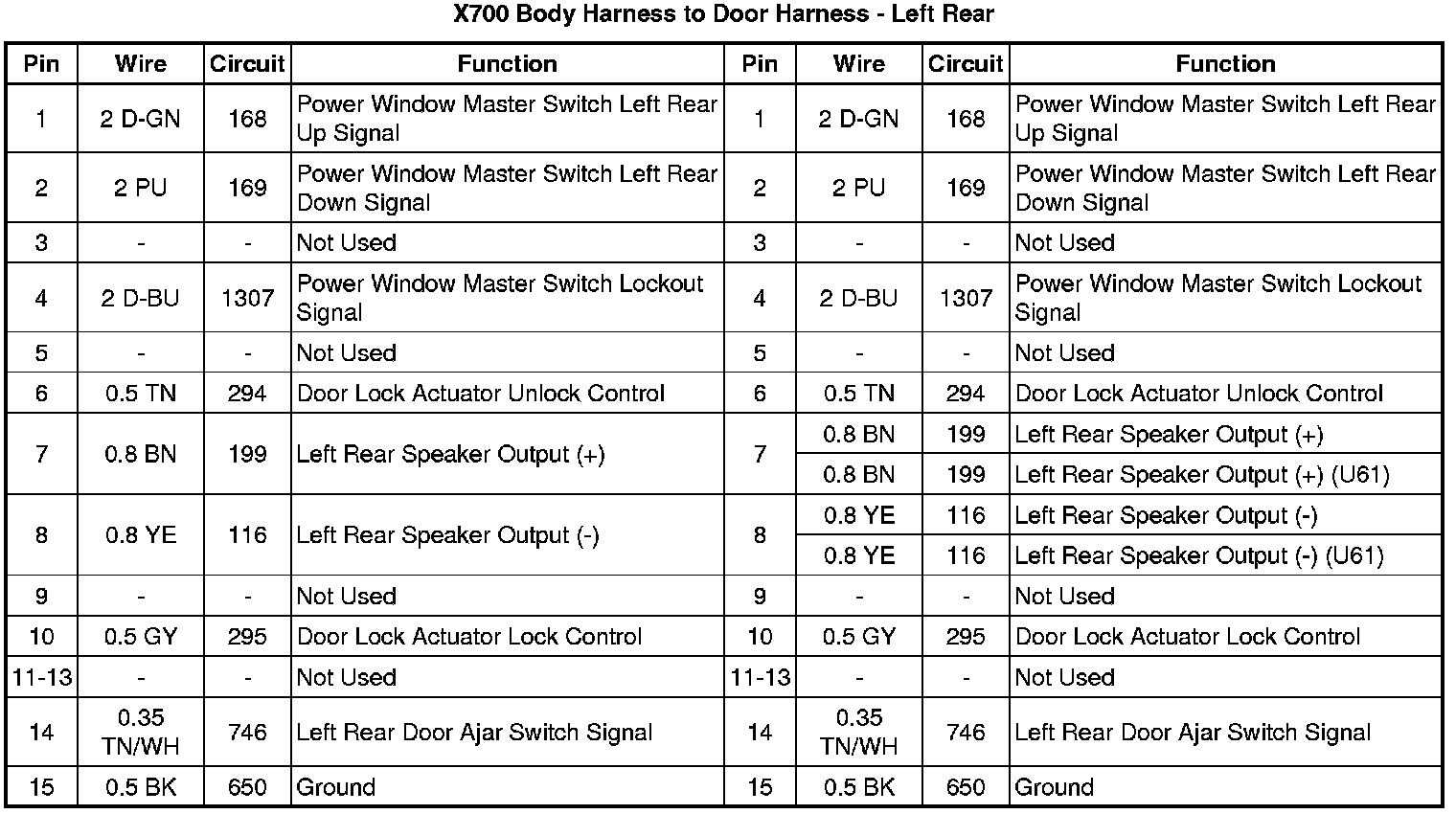

X700 Body Harness to Door Harness - Left Rear
