Home
>>
Saturn
>>
2009
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

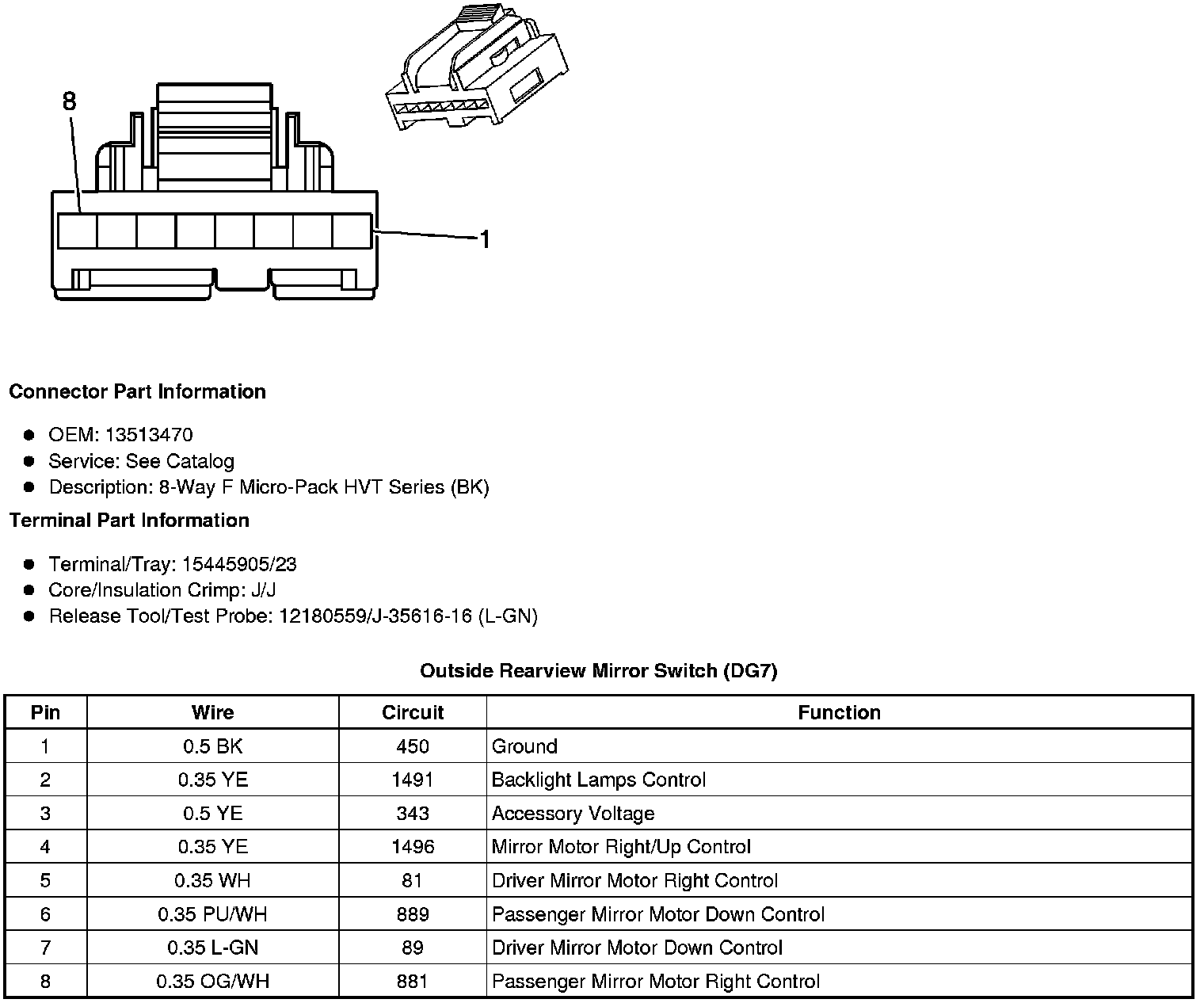

Component Connector End Views
Outside Rearview Mirror Switch (DG7)
