Instrument Cluster / Carrier




Component Connector End Views

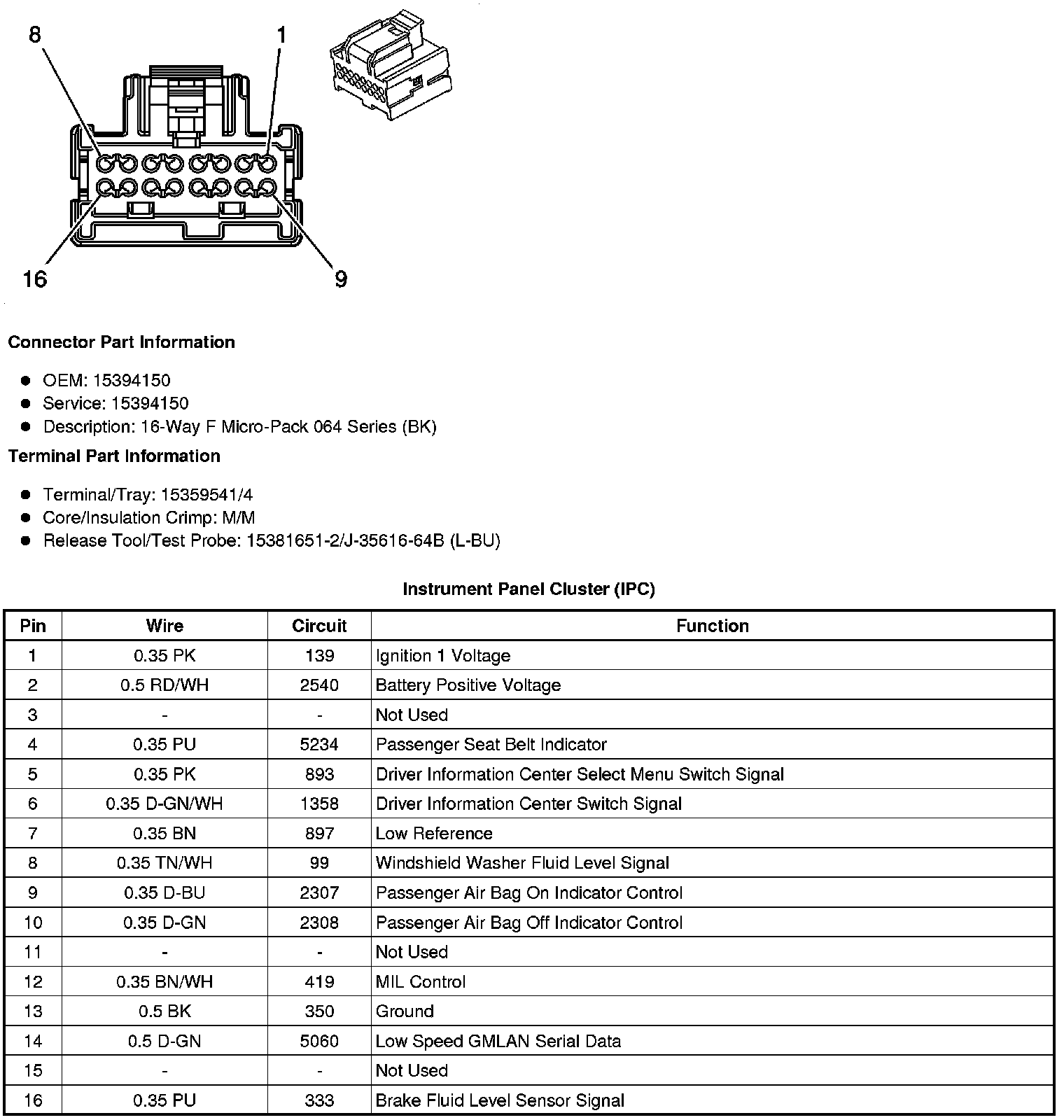

Instrument Panel Cluster (IPC)

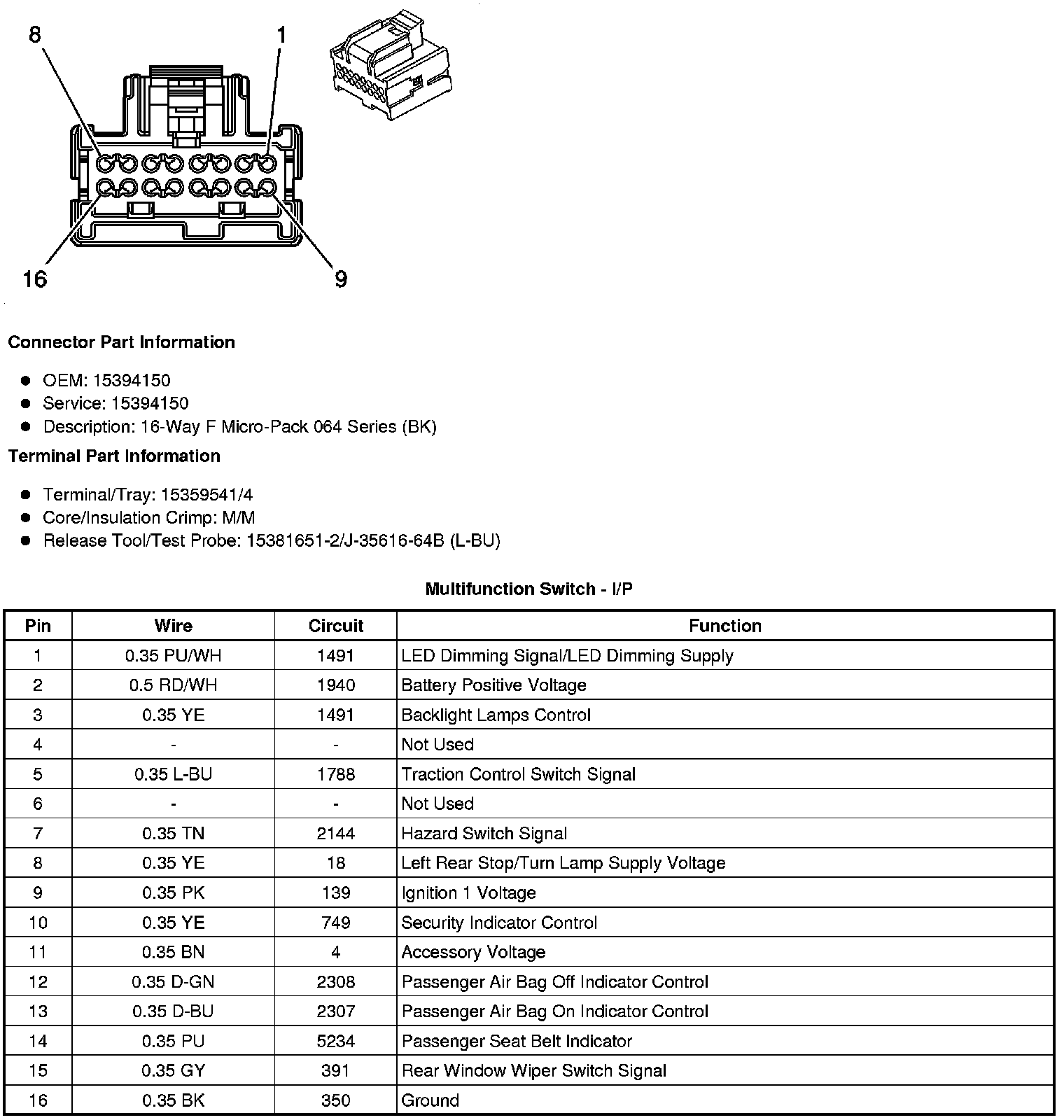

Multifunction Switch - I/P
