System Diagram




Component Connector End Views

Headlamp - Left High Beam

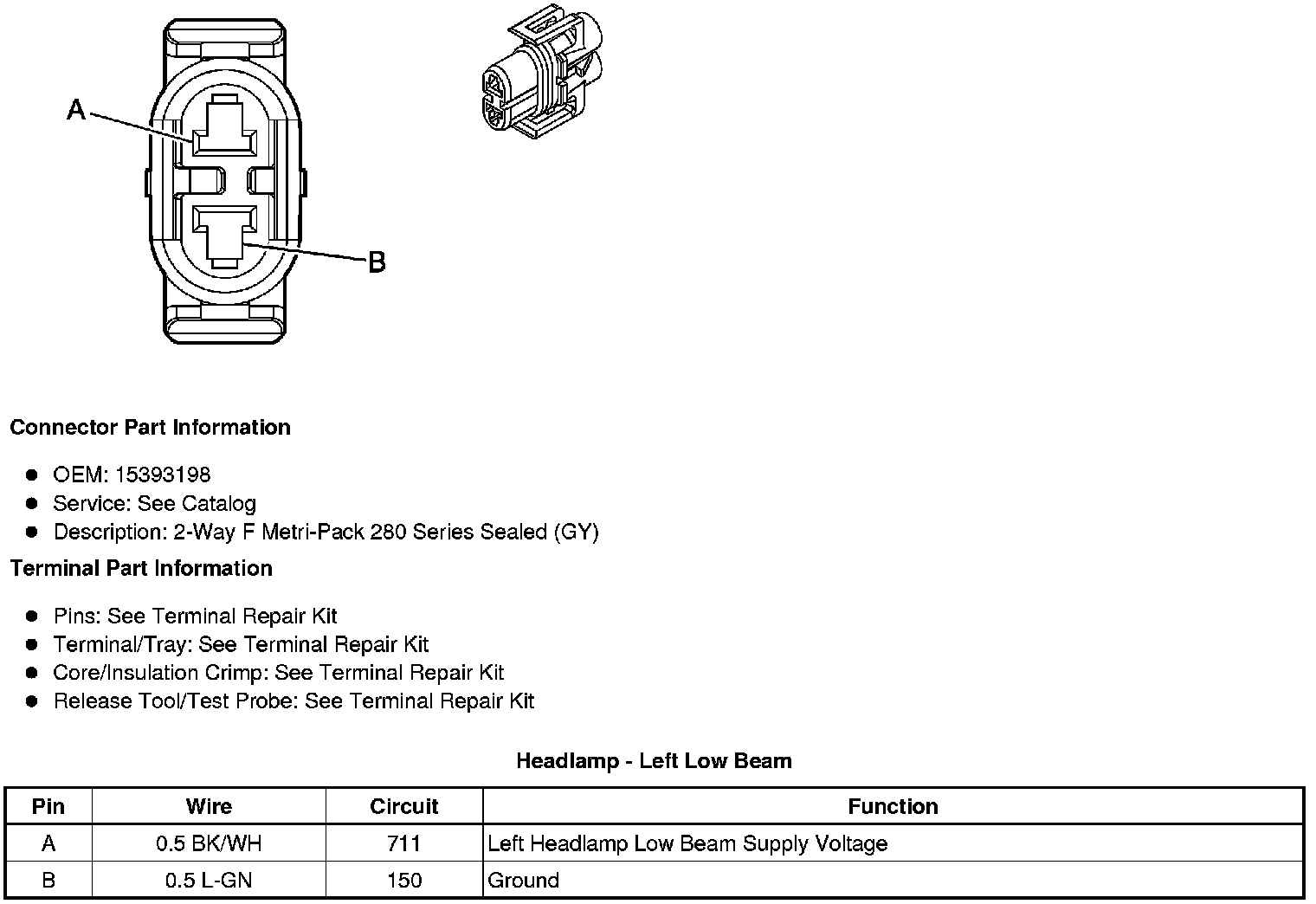

Headlamp - Left Low Beam






Headlamp - Right High Beam

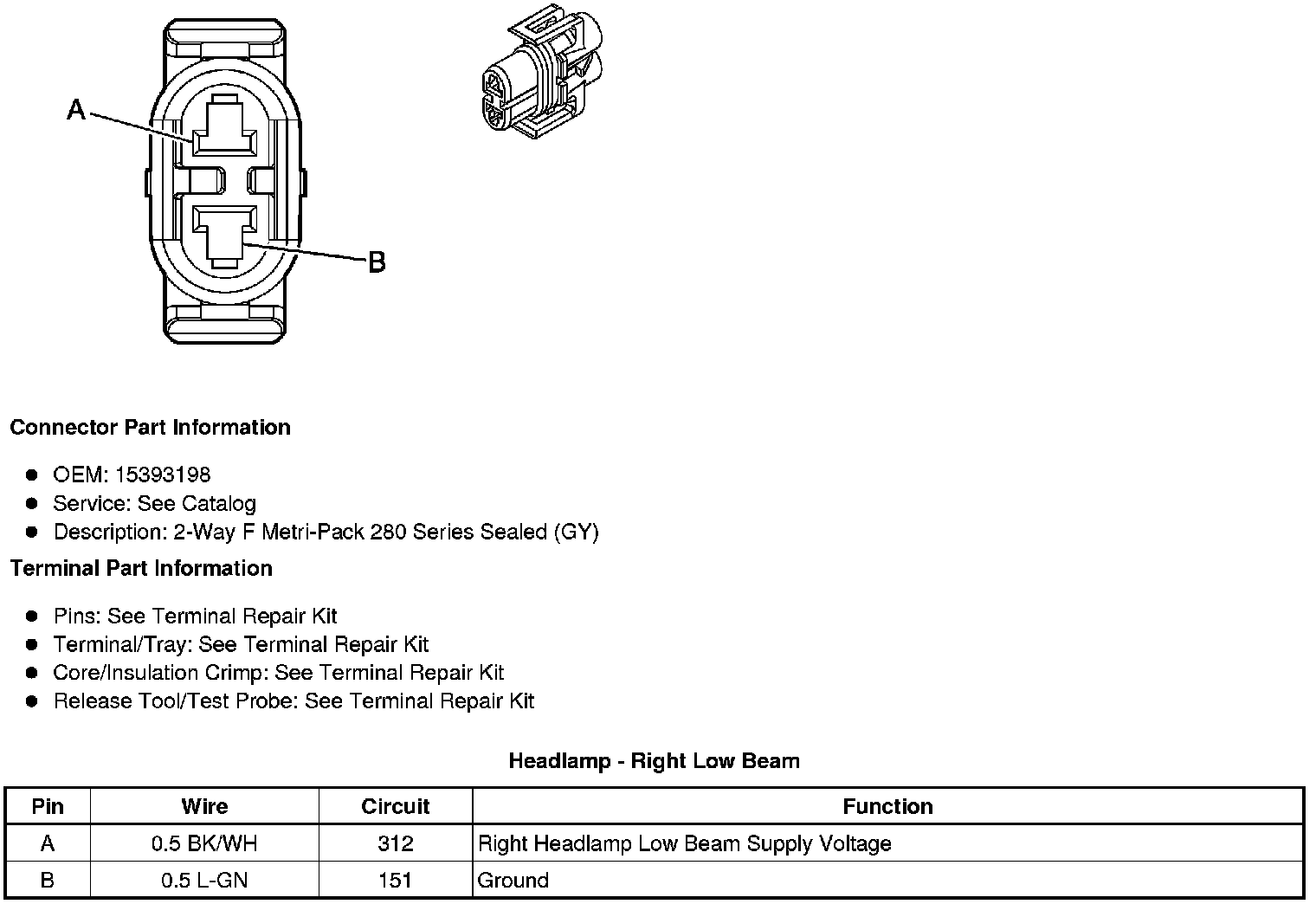

Headlamp - Right Low Beam
