Saturn
>>
2009
>>
VUE FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Switch
Headlamp Switch

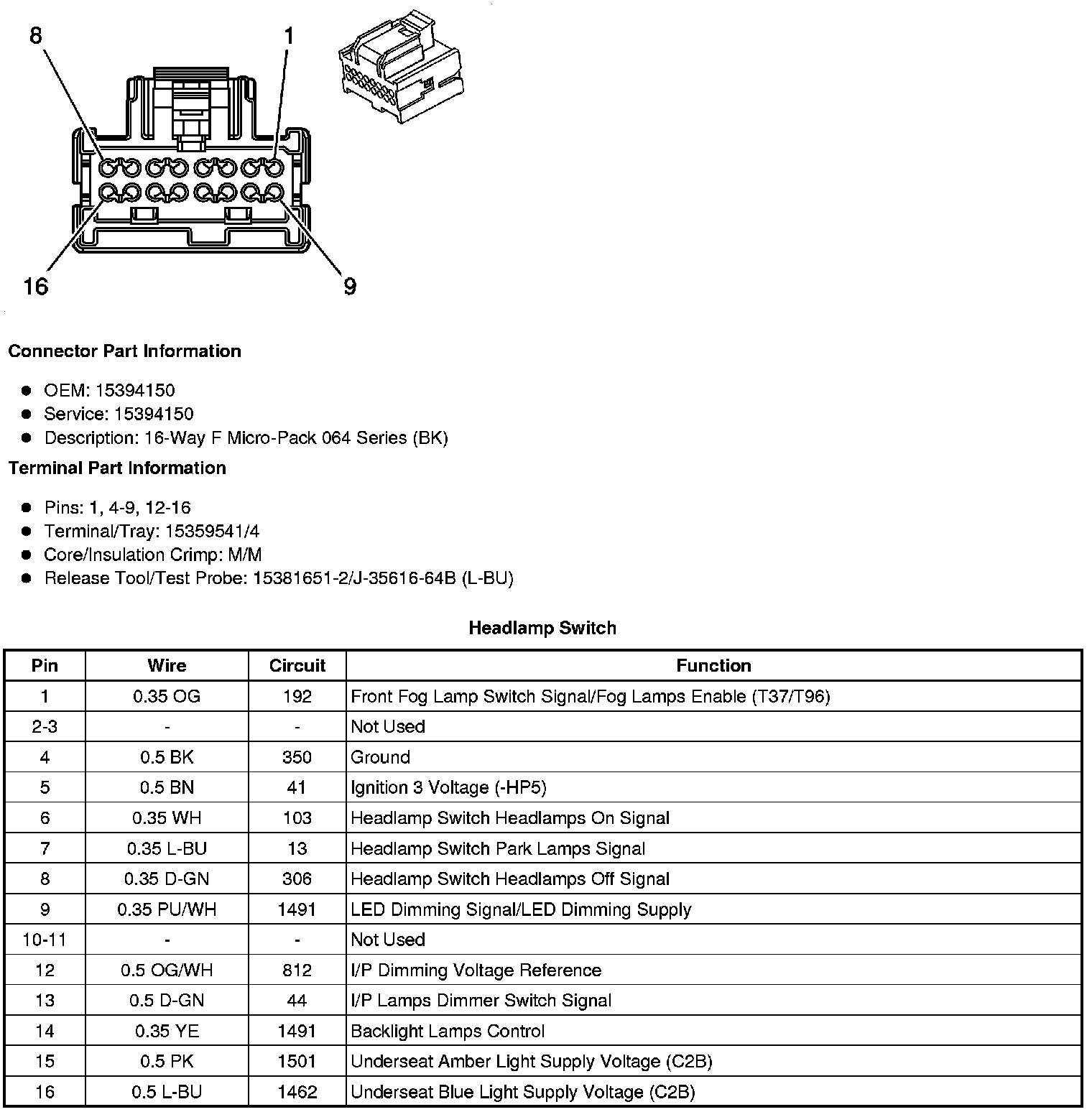

Component Connector End Views
Headlamp Switch
