Fuel Injector




Component Connector End Views

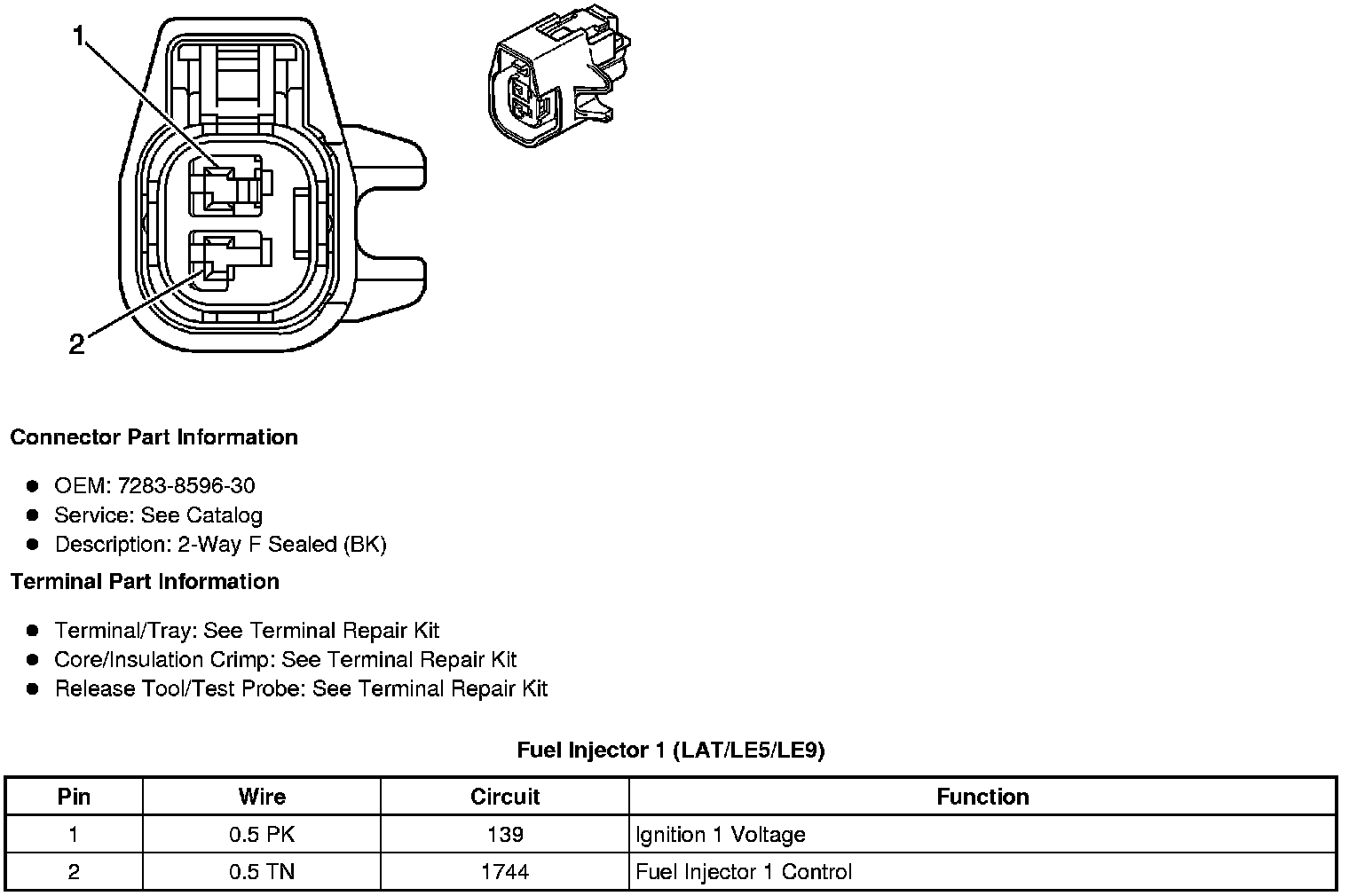

Fuel Injector 1 (LAT/LE5/LE9)

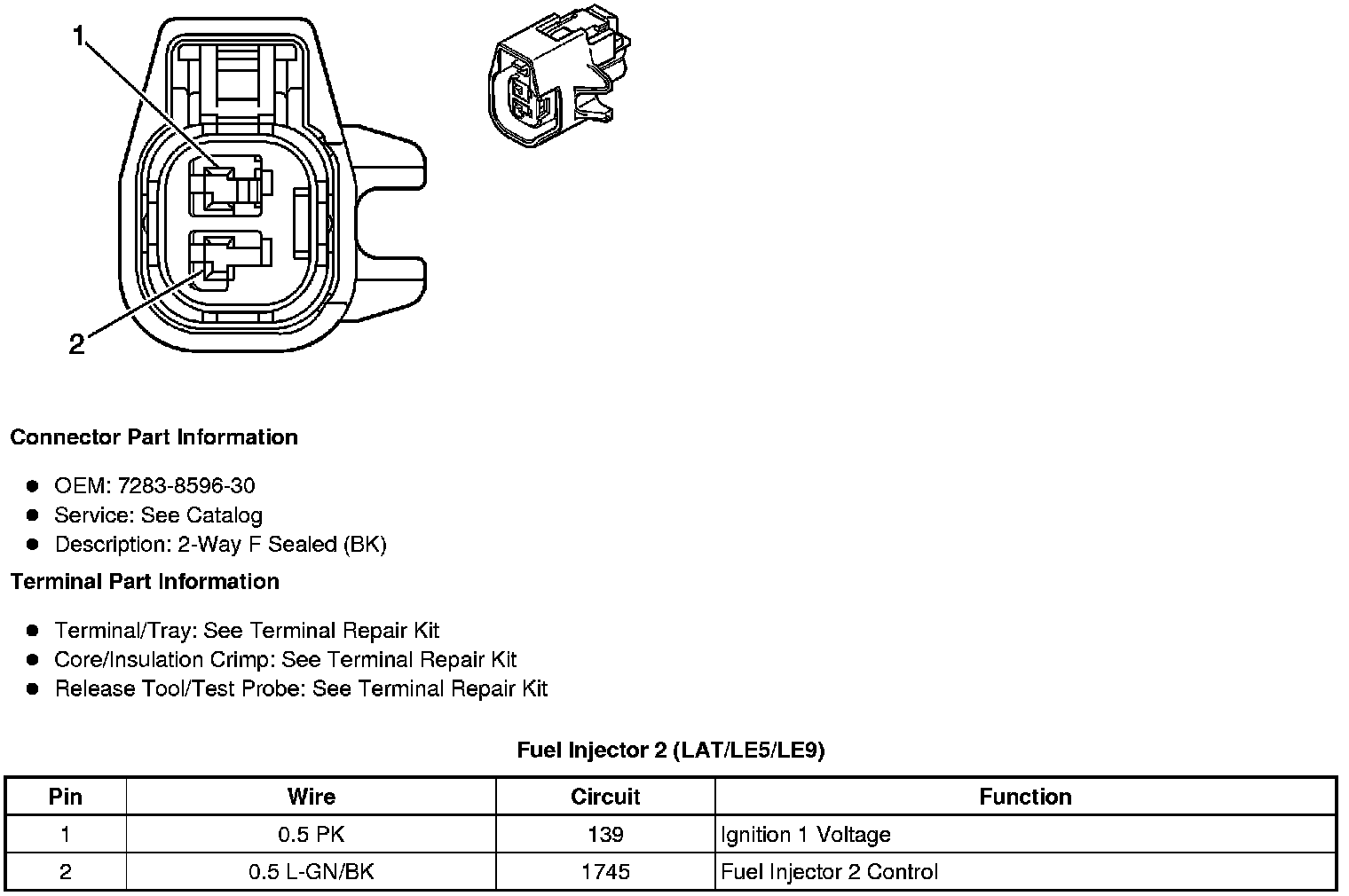

Fuel Injector 2 (LAT/LE5/LE9)

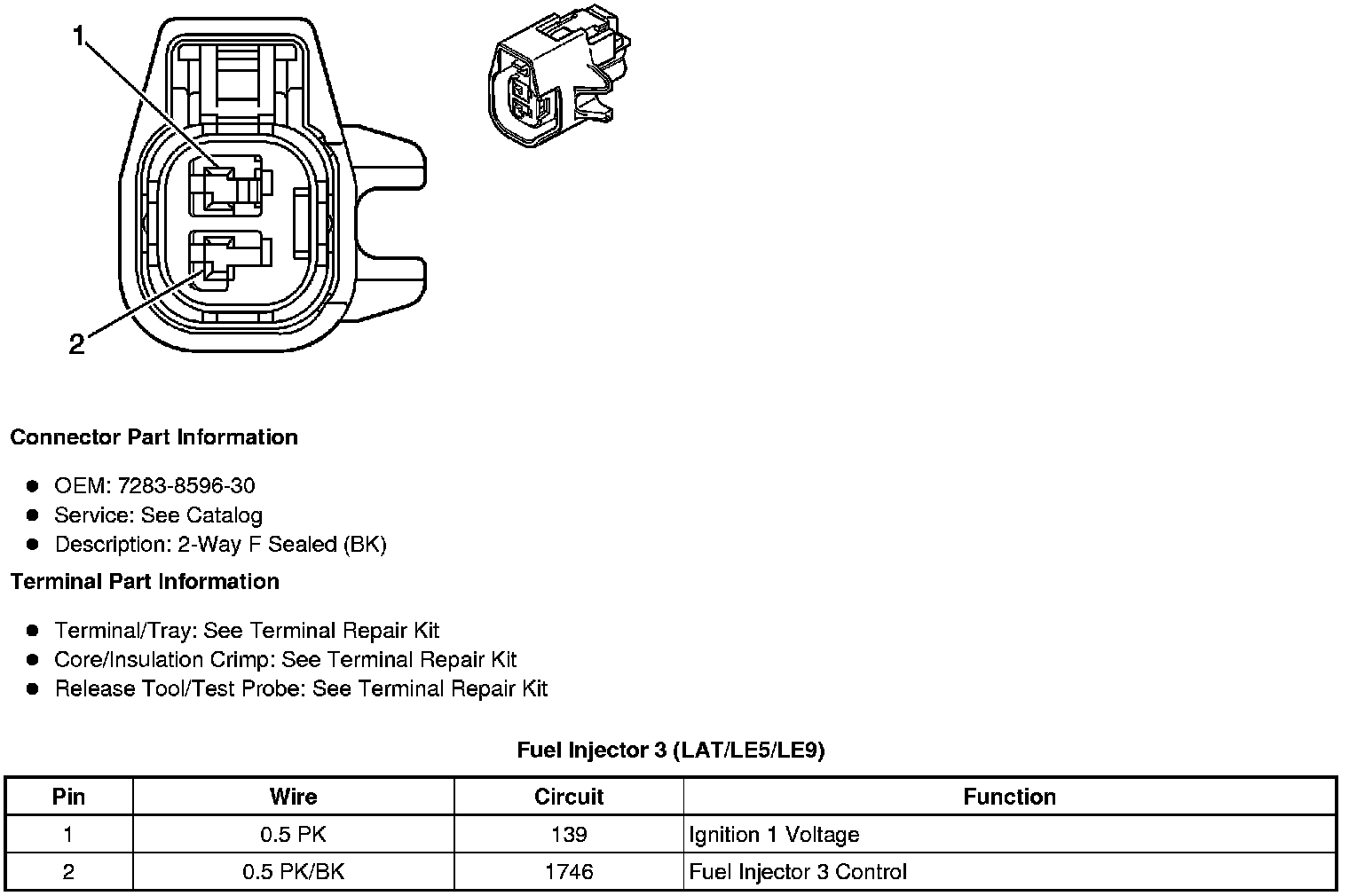

Fuel Injector 3 (LAT/LE5/LE9)






Fuel Injector 4 (LAT/LE5/LE9)
