Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Crankshaft Position Sensor

Crankshaft Position Sensor

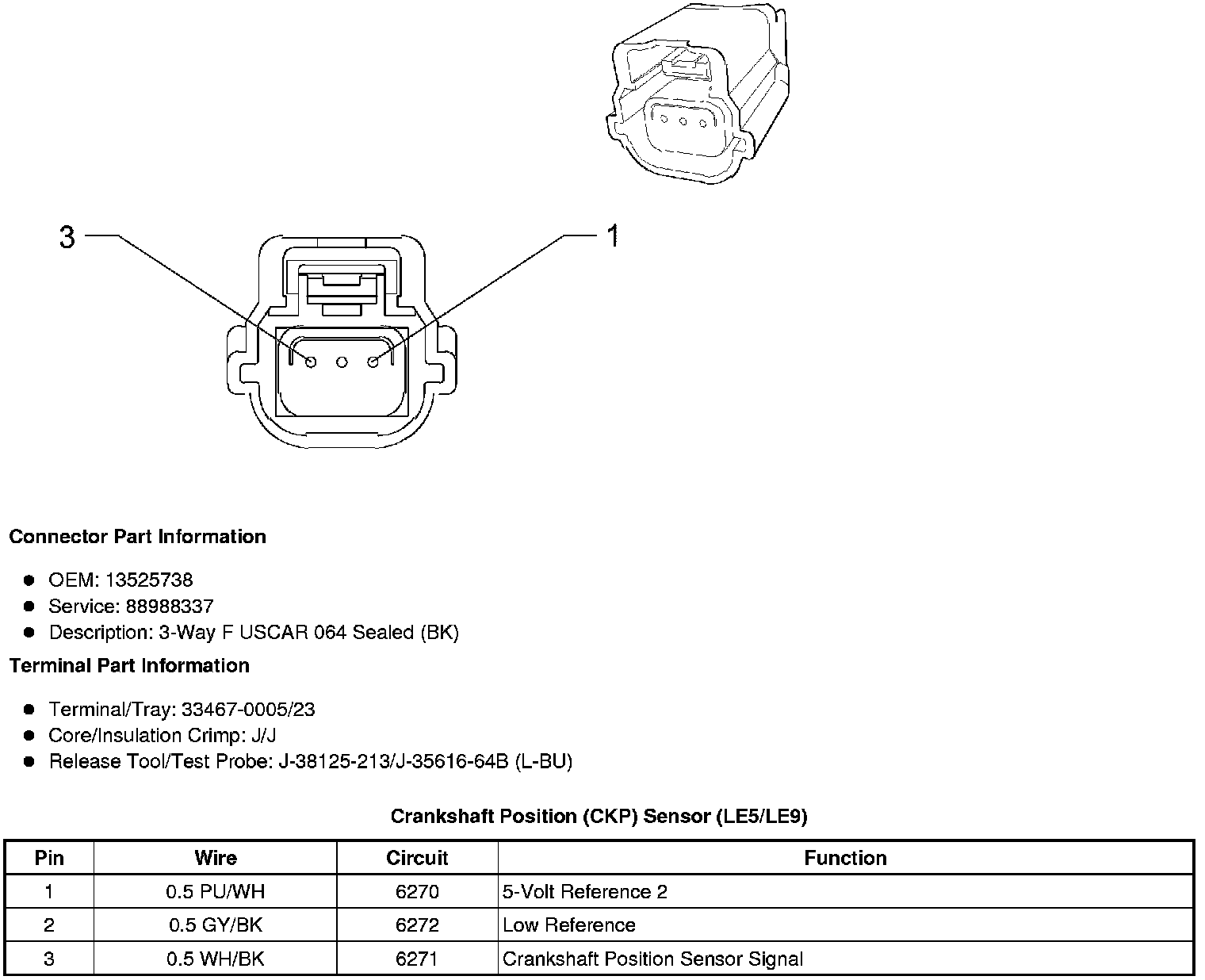

Component Connector End Views

Crankshaft Position (CKP) Sensor (LE5/LE9)
