System Diagram




Component Connector End Views

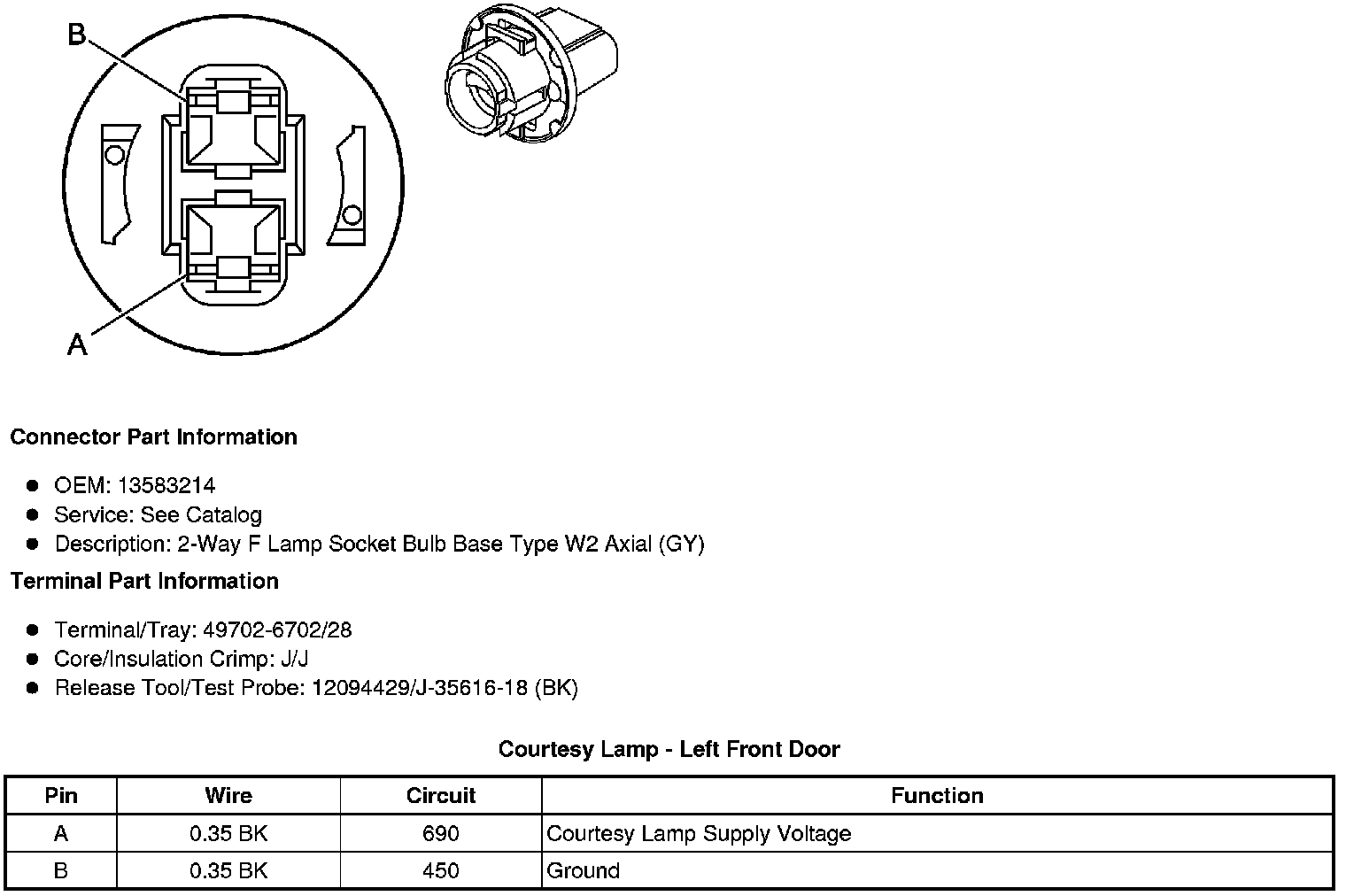

Courtesy Lamp - Left Front Door

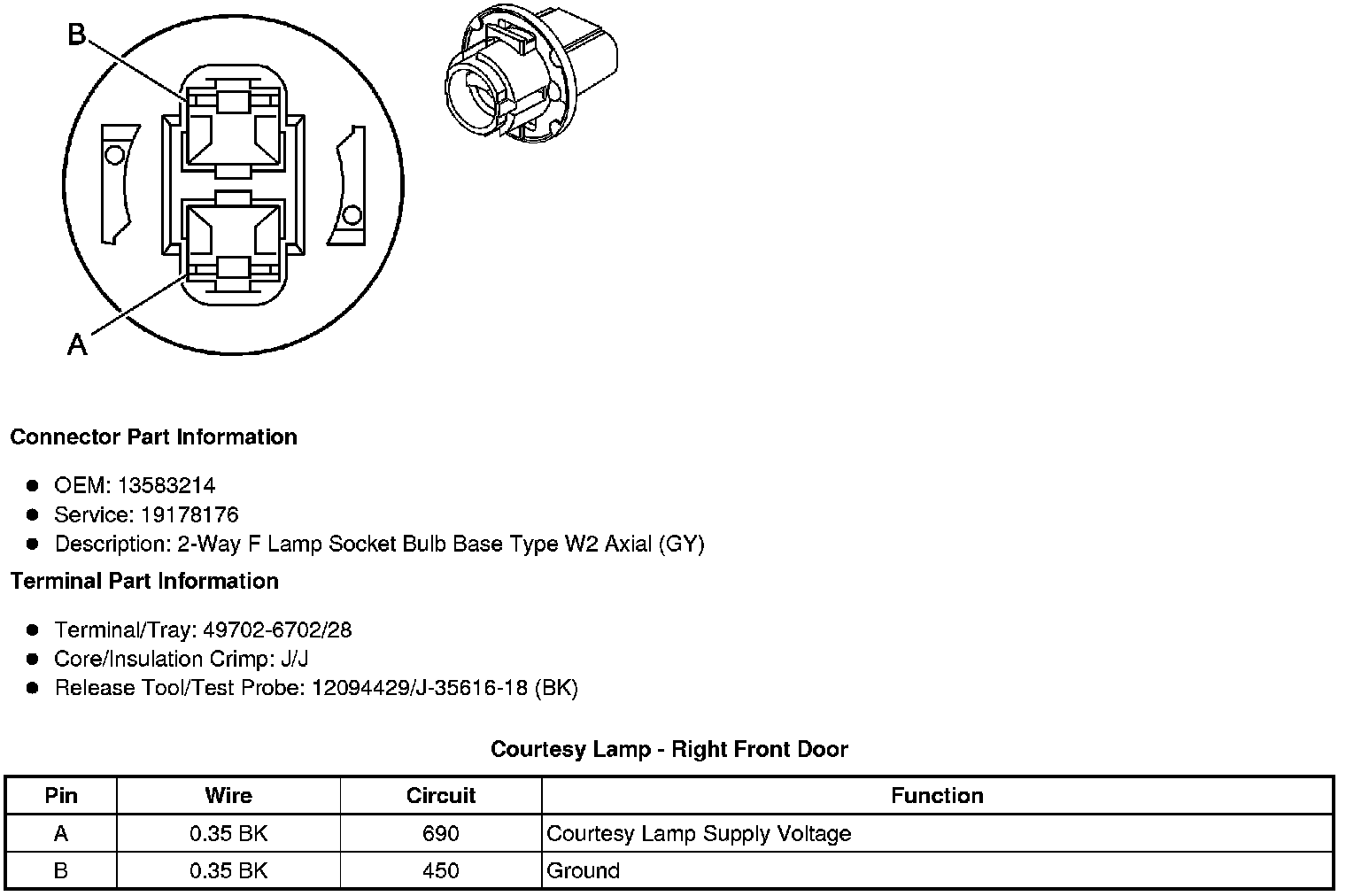

Courtesy Lamp - Right Front Door






Rear Compartment Courtesy Lamp - Left






Rear Compartment Courtesy Lamp - Right










Component Connector End Views

Accent Lamp - Driver Seat (C2B)






Accent Lamp - Passenger Seat (C2B)
