Center Mounted Brake Lamp
Center Mounted Brake Lamp

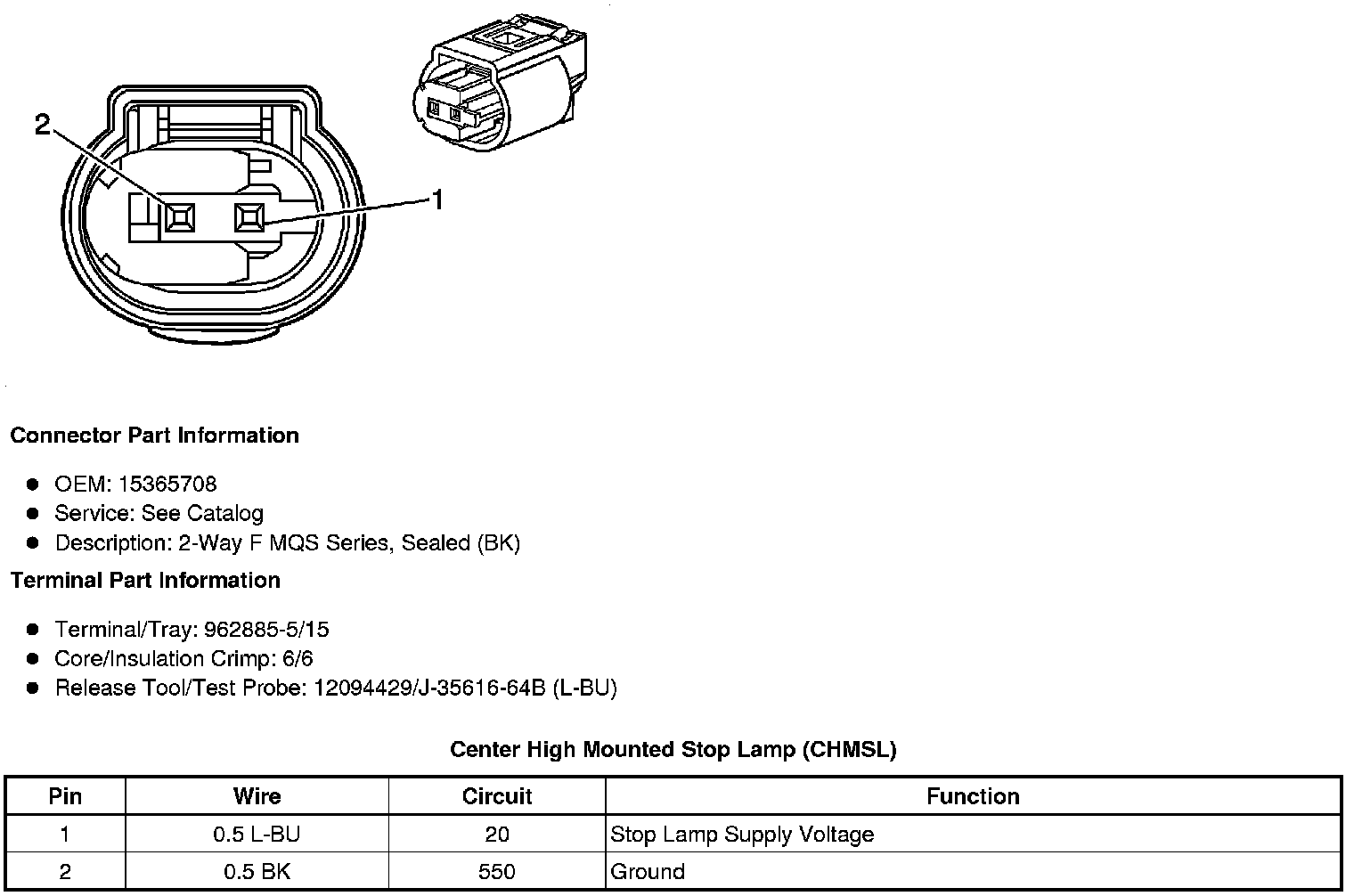

Component Connector End Views
Center High Mounted Stop Lamp (CHMSL)
