Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Canister Vent Valve

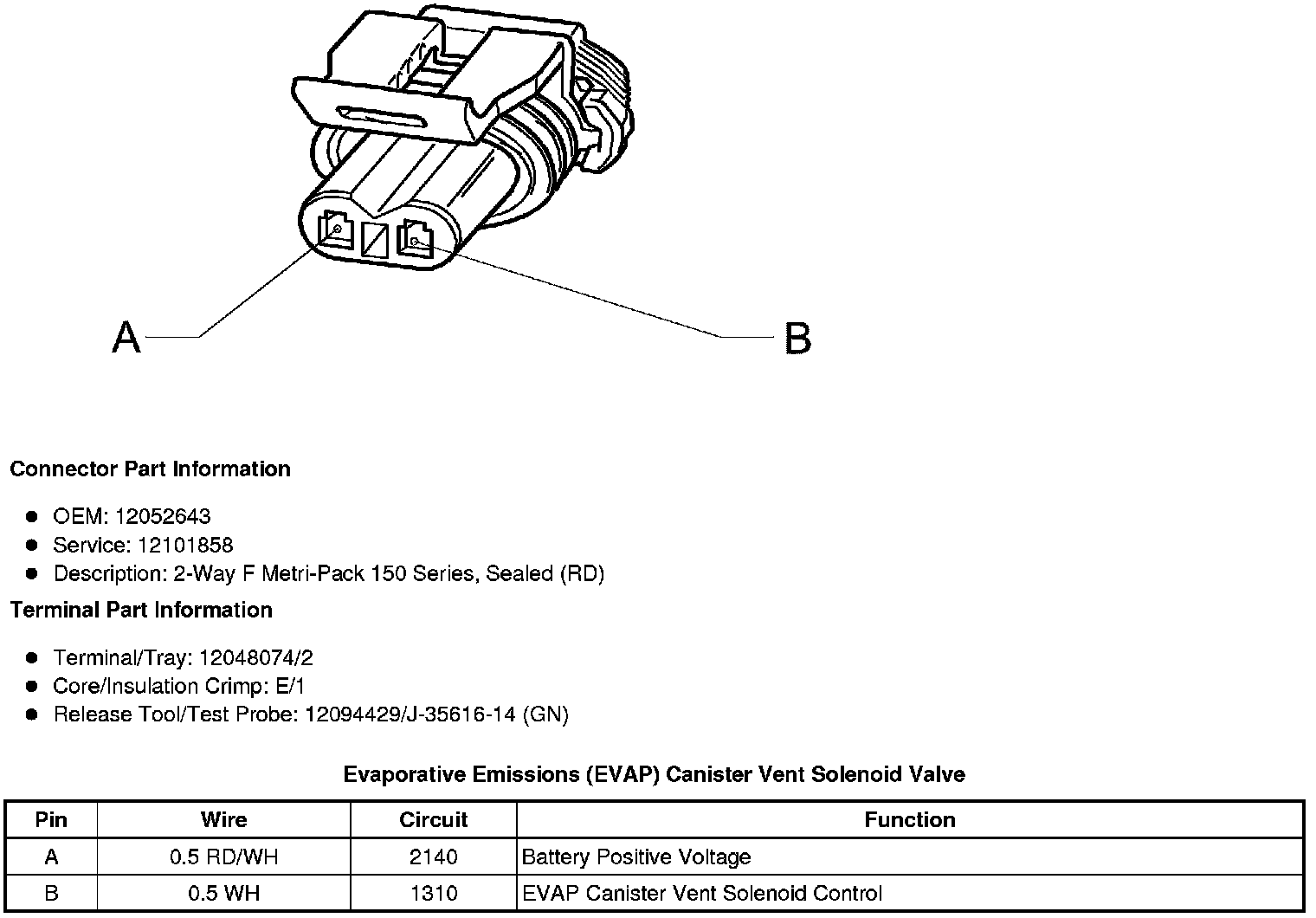

Canister Vent Valve




Component Connector End Views

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
