Canister Purge Solenoid




Component Connector End Views

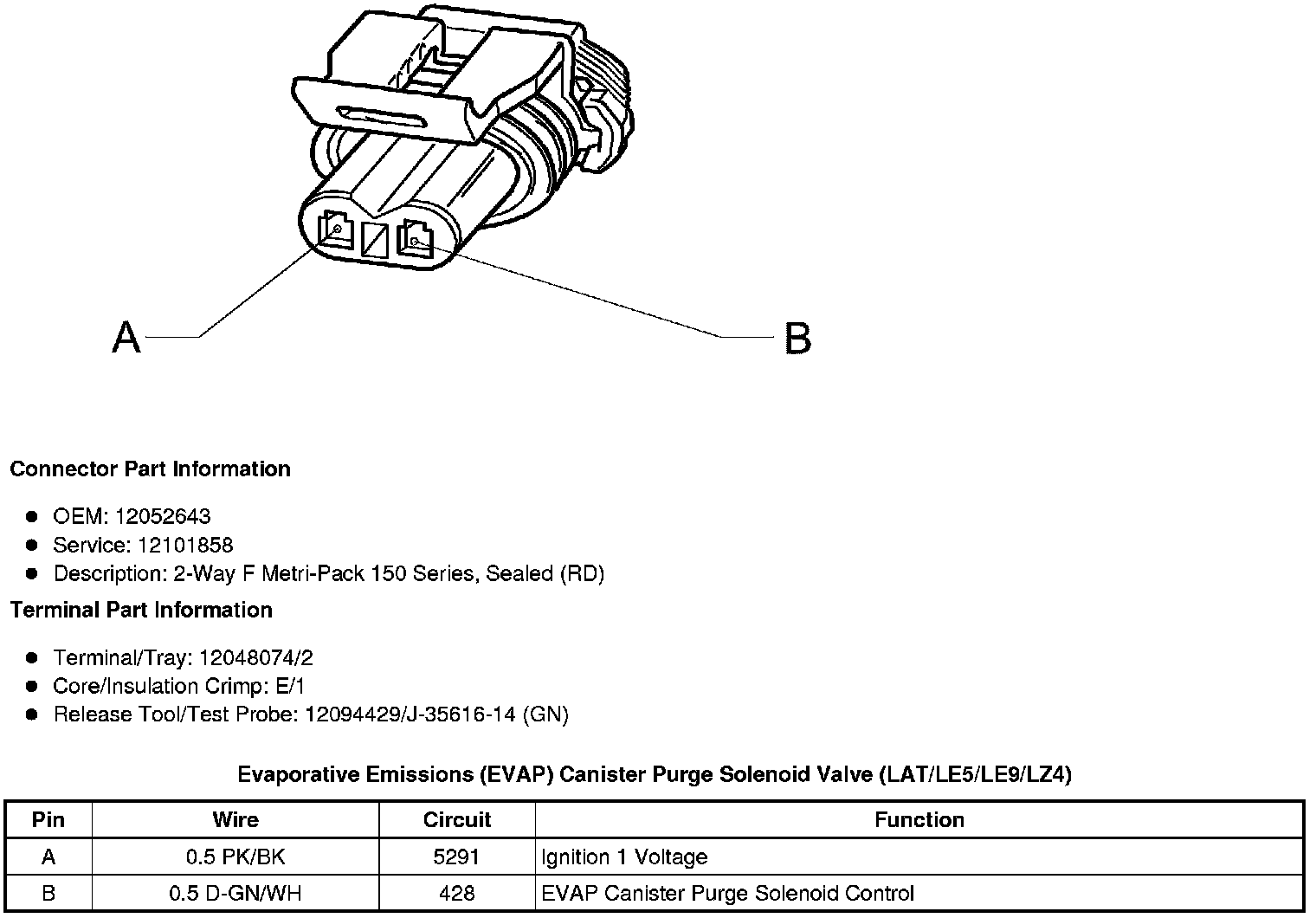

Evaporative Emissions (EVAP) Canister Purge Solenoid Valve (LAT/LE5/LE9/LZ4)
