Camshaft Position Sensor




Component Connector End Views

Camshaft Position (CMP) Sensor - Exhaust (LAT/LE5/LE9)

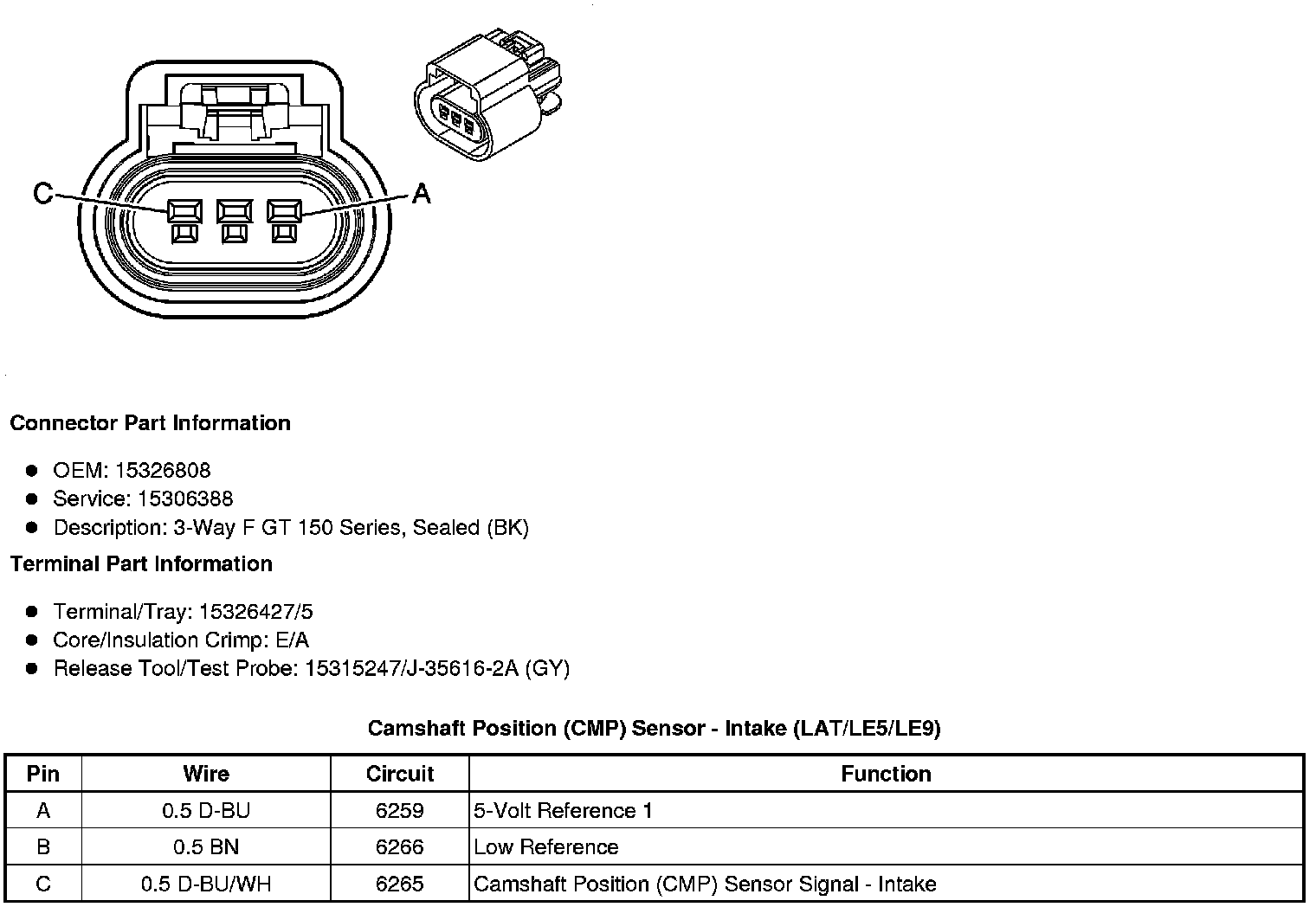

Camshaft Position (CMP) Sensor - Intake (LAT/LE5/LE9)
