Air Injection Pump Relay




Component Connector End Views

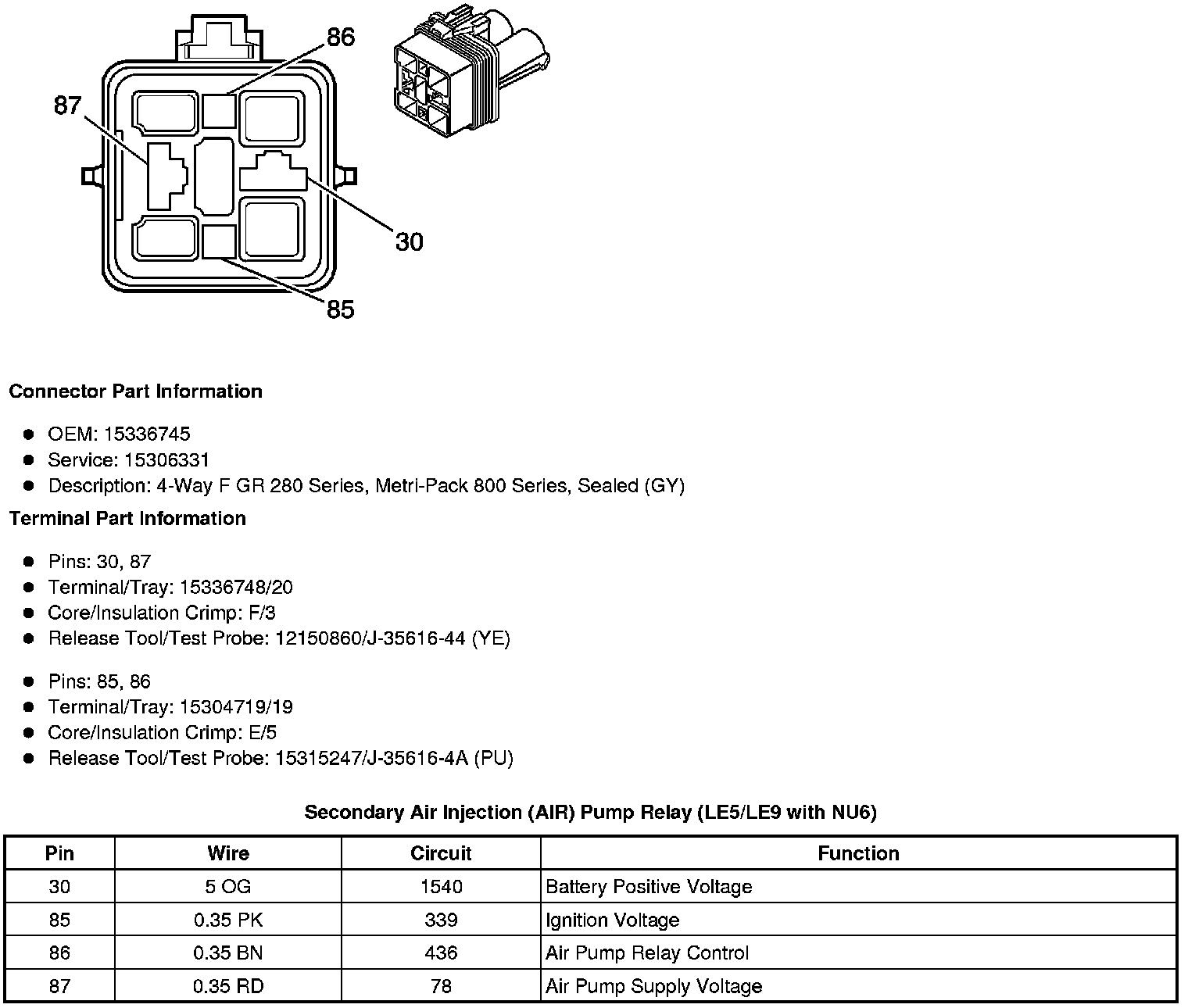

Secondary Air Injection (AIR) Pump Relay (LE5/LE9 with NU6)






Secondary Air Injection (AIR) Pump Solenoid Relay (LE5/LE9 with NU6)
