Air Injection Control Valve




Component Connector End Views

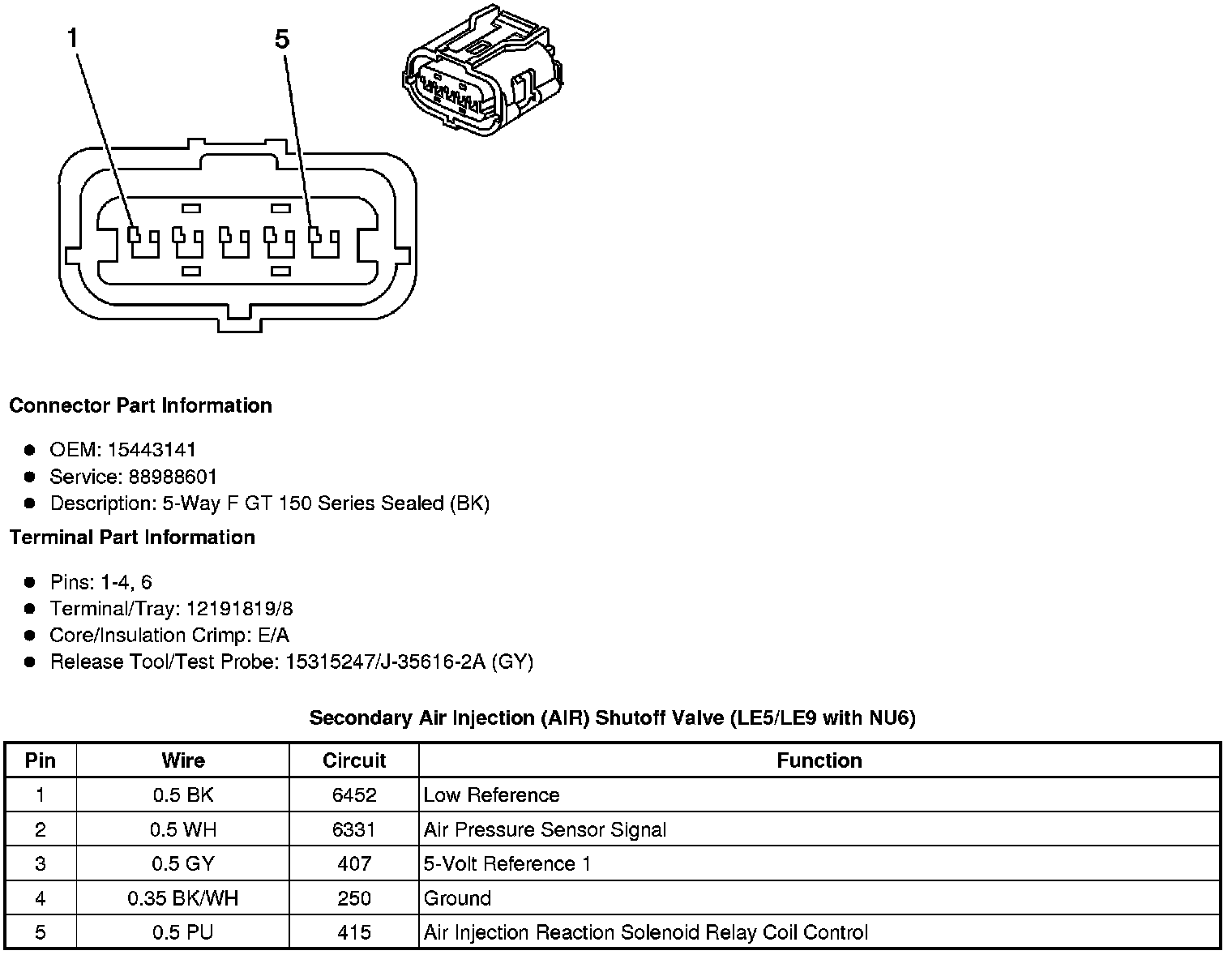

Secondary Air Injection (AIR) Shutoff Valve (LE5/LE9 with NU6)
