Air Bag

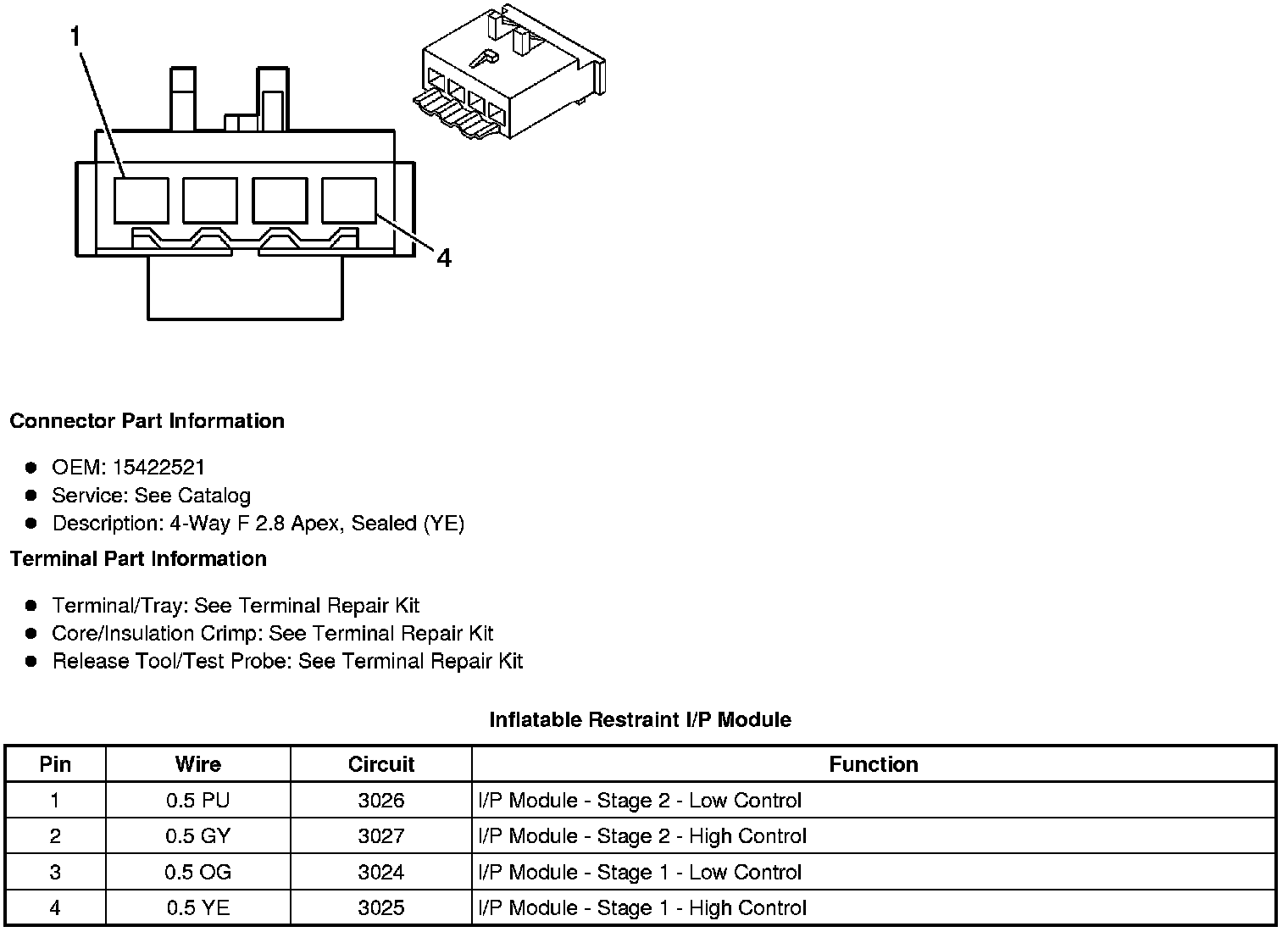

Component Connector End Views

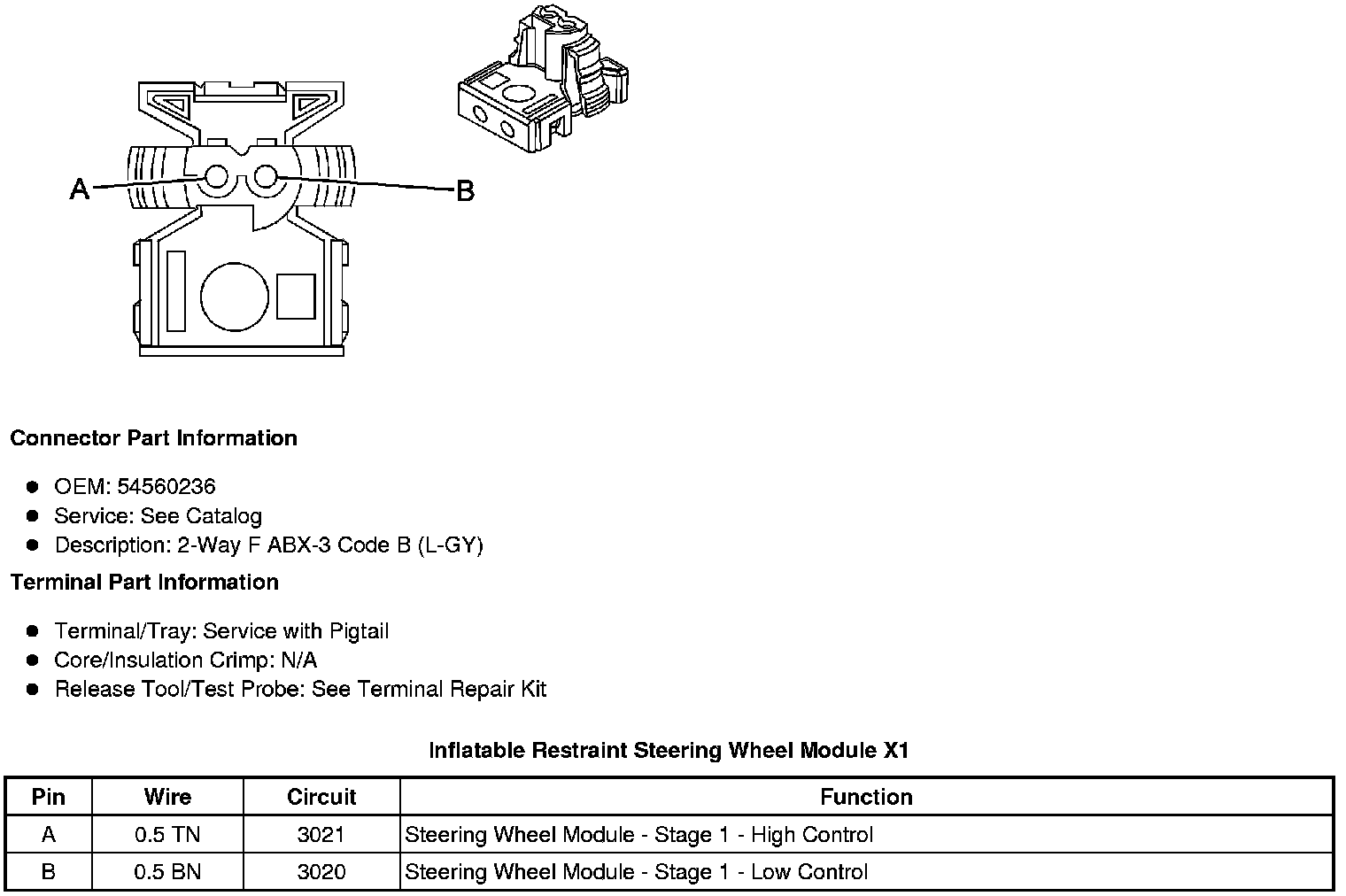

Inflatable Restraint I/P Module

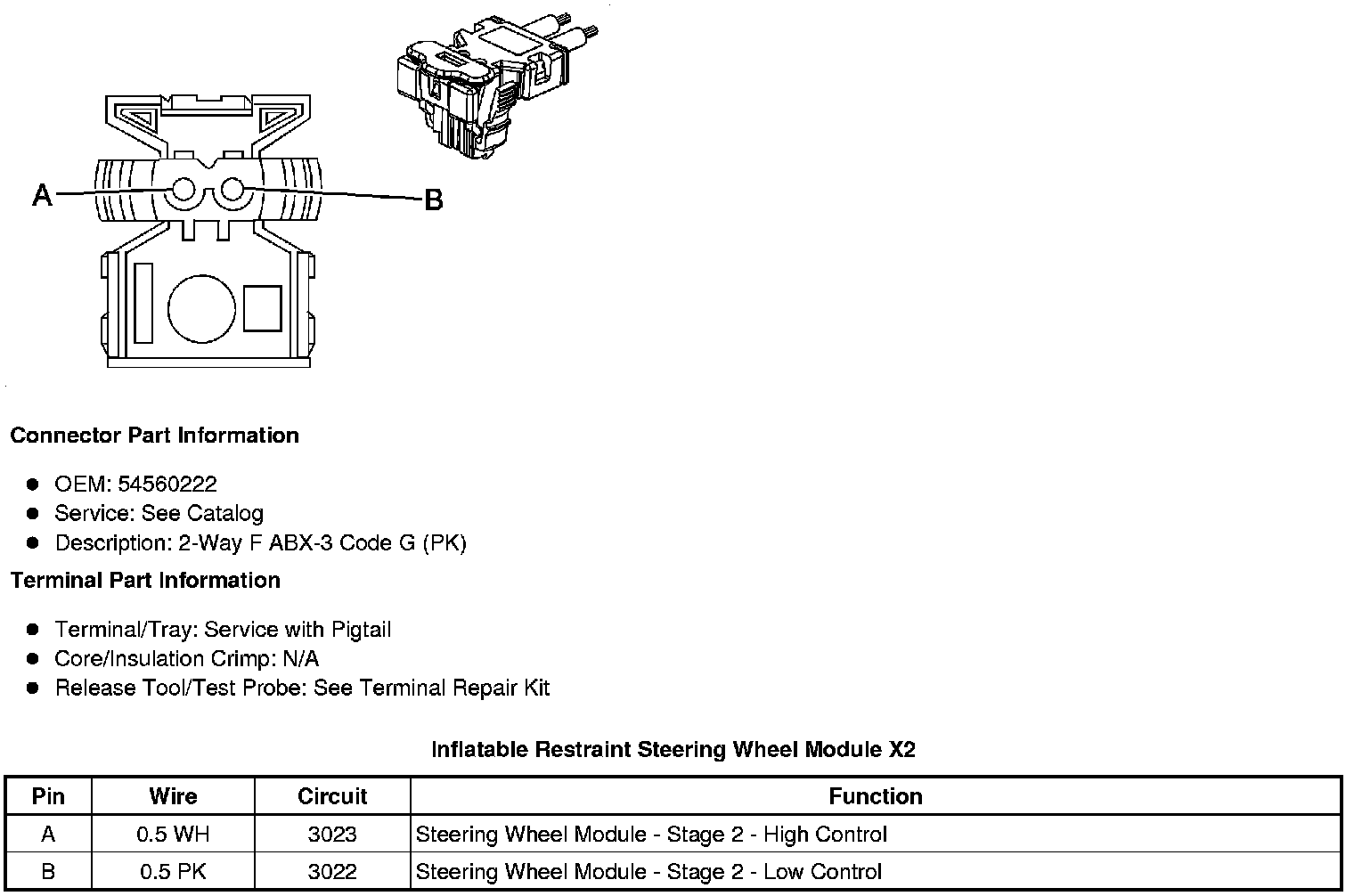

Inflatable Restraint Steering Wheel Module X1






Inflatable Restraint Steering Wheel Module X2






Inflatable Restraint Roof Rail Module - Left






Inflatable Restraint Roof Rail Module - Right






Inflatable Restraint Side Impact Module - Left






Inflatable Restraint Side Impact Module - Right (-APL)
