Engine Front Cover and Oil Pump Installation

WARNING: This page is about a different variant/trim than selected.

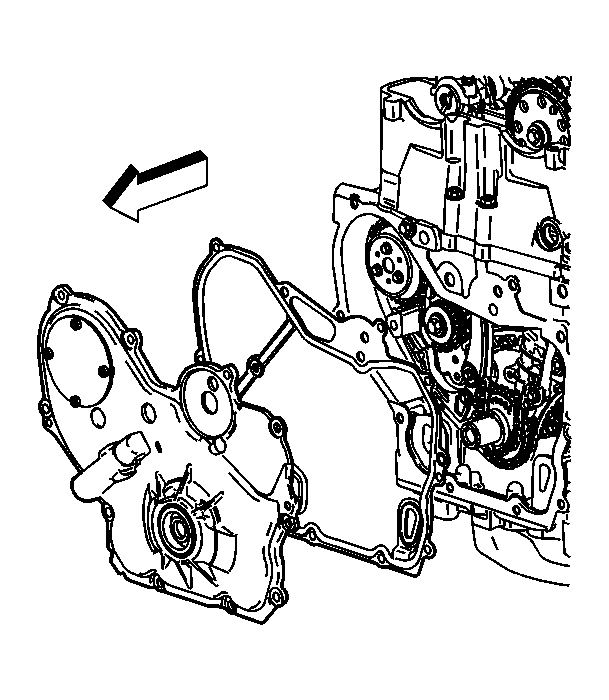

    Fig 1: View Of Engine Front Cover
    GM1825083Courtesy of GENERAL MOTORS CORP.
  1. Install two new friction washers.
  2. Install the engine front cover with a new gasket.

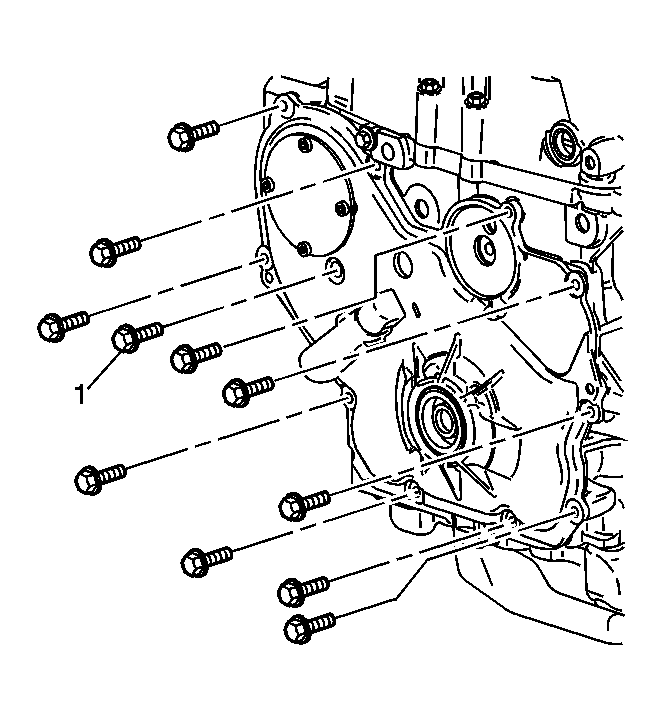

    3. Fig 2: View Of Engine Front Cover Bolts
    GM1769934Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
    NOTE: The center bolt (1) should be tightened last.
  3. Install the engine front cover bolts and tighten to 25 N.m (18 lb ft).
  4. Install the long water pump bolt and tighten to 25 N.m (18 lb ft).
    5. Fig 3: View Of Drive Belt Tensioner
    GM412154Courtesy of GENERAL MOTORS CORP.
  5. Install the accessory drive belt tensioner.
  6. Install the accessory drive belt tensioner bolt and tighten to 45 N.m (33 lb ft).
