Instrument Cluster Schematics
Instrument Cluster Schematics

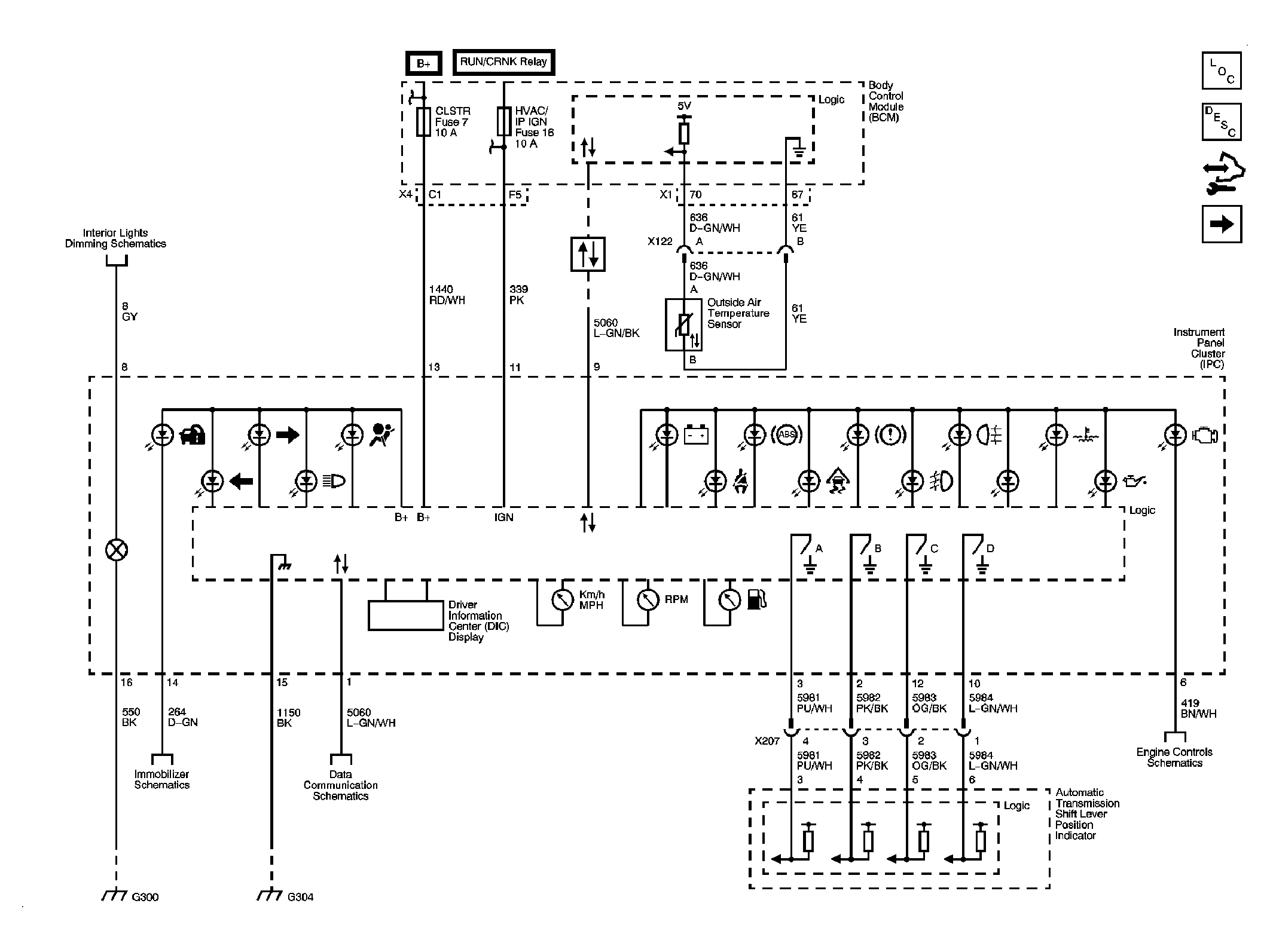

Fig 1: Instrument Cluster
Courtesy of GENERAL MOTORS CORP.

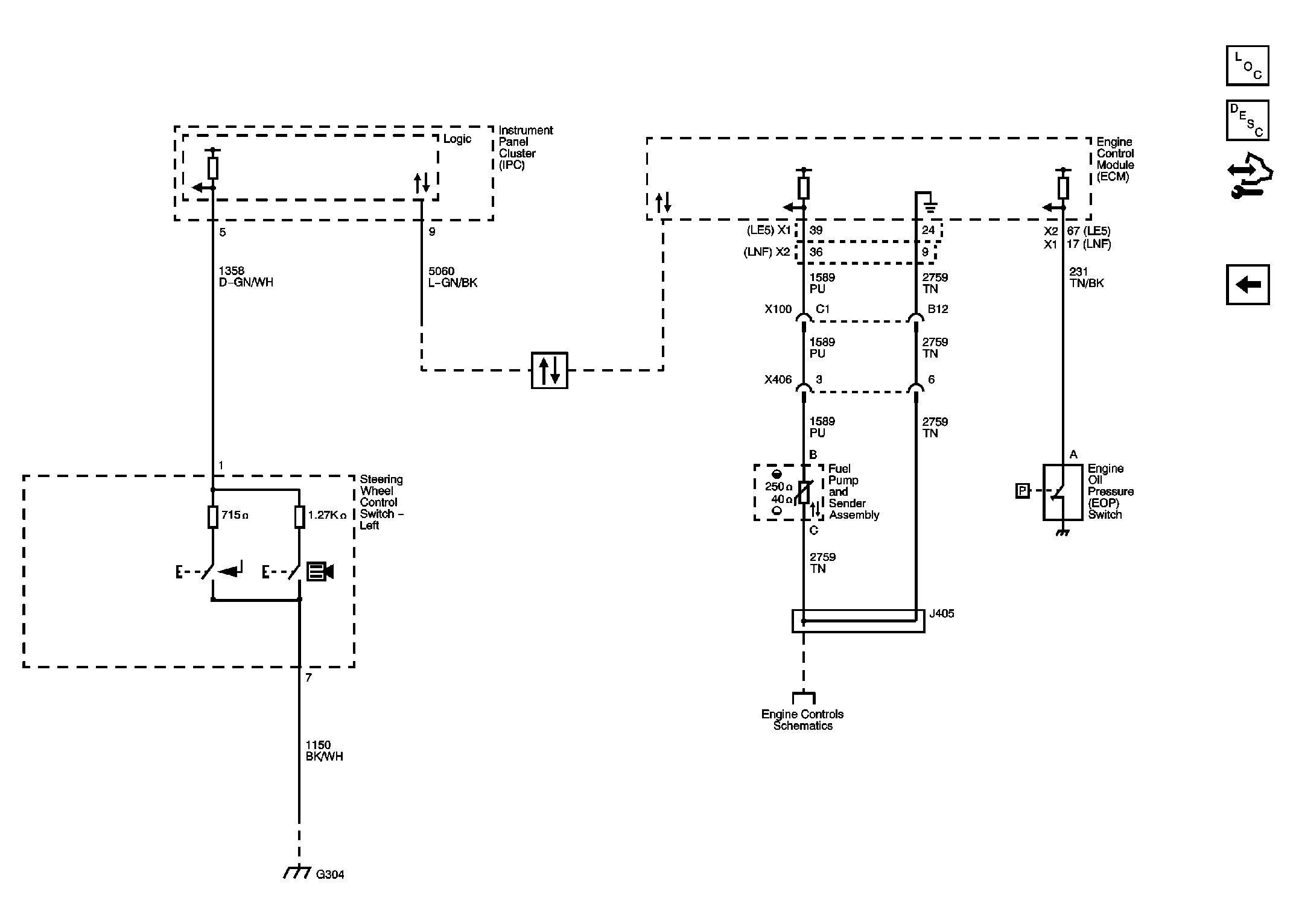

Fig 2: Sensors & Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
