Forward Clutch and Overdrive and Coast Clutch Removal

Forward Clutch and Overdrive and Coast Clutch Removal

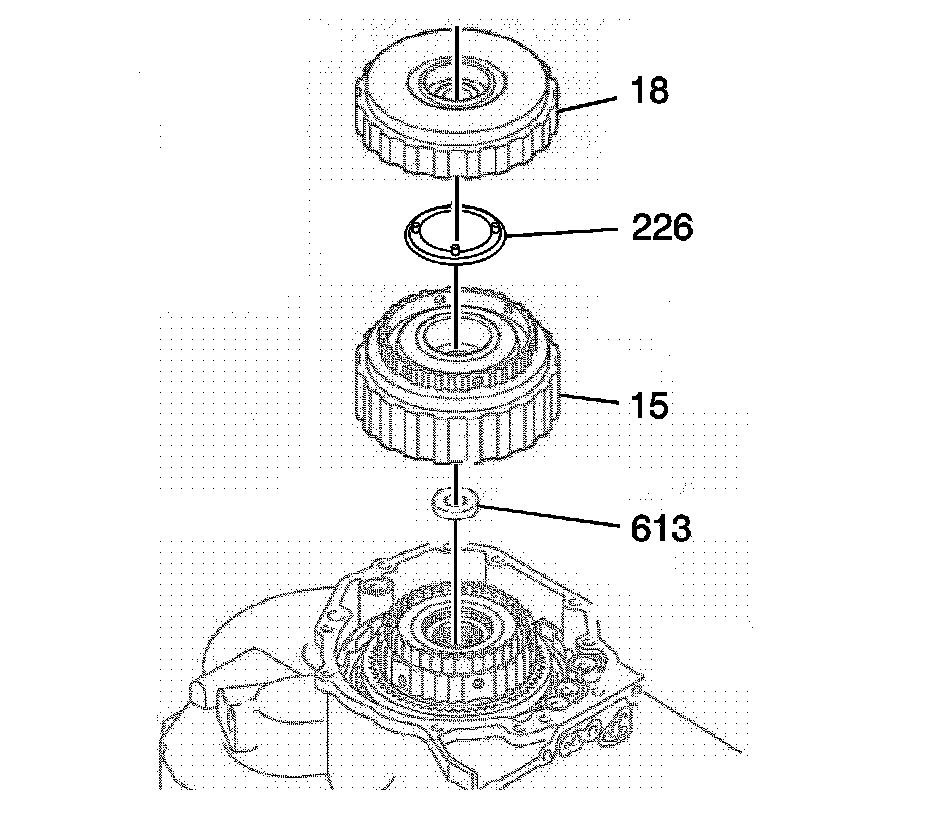

1. Remove the forward clutch assembly (18), and the coast clutch housing thrust washer (226).
2. Remove the overdrive and coast clutch assembly (15).
3. Remove the rear ring gear rear thrust bearing (613).
