Forward Clutch and Overdrive and Coast Clutch Installation

Forward Clutch and Overdrive and Coast Clutch Installation

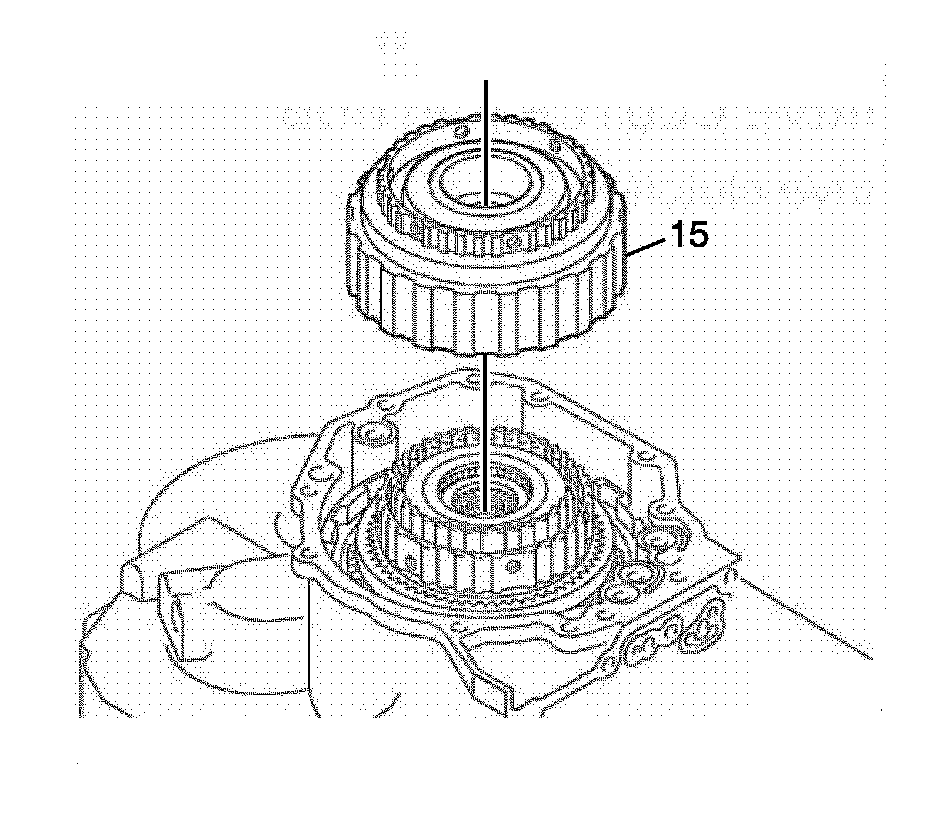

1. Install the overdrive and coast clutch assembly (15).

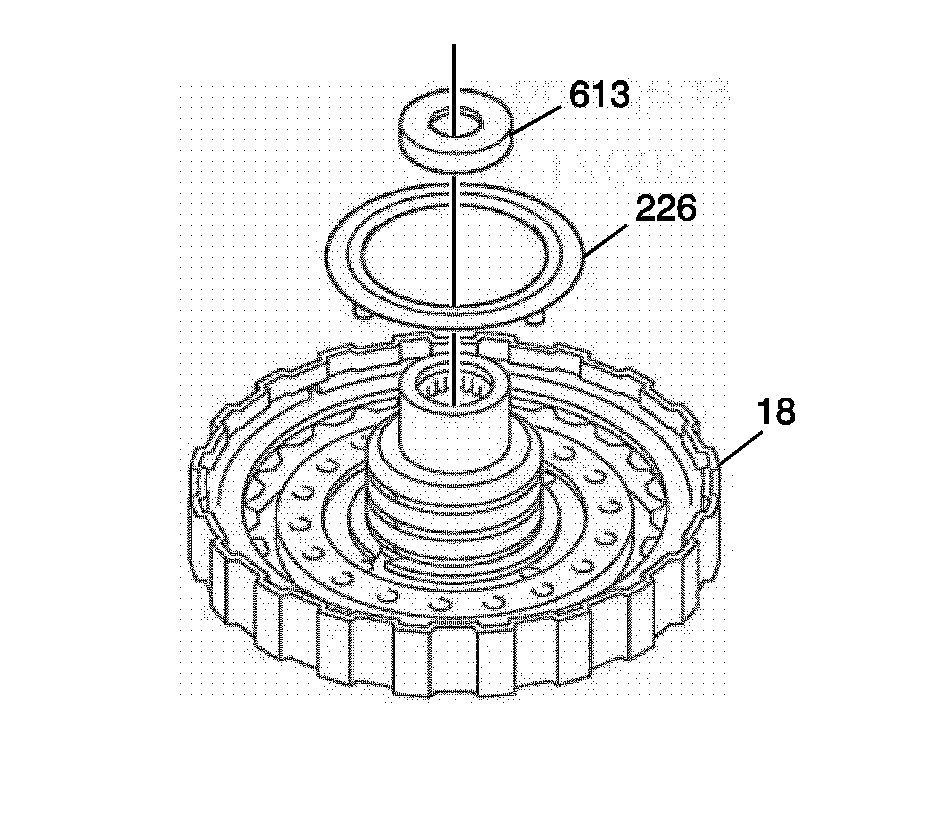

2. Place the rear ring gear rear thrust bearing (613) and the overdrive and coast clutch housing thrust washer (226) with grease on the forward clutch assembly (18).

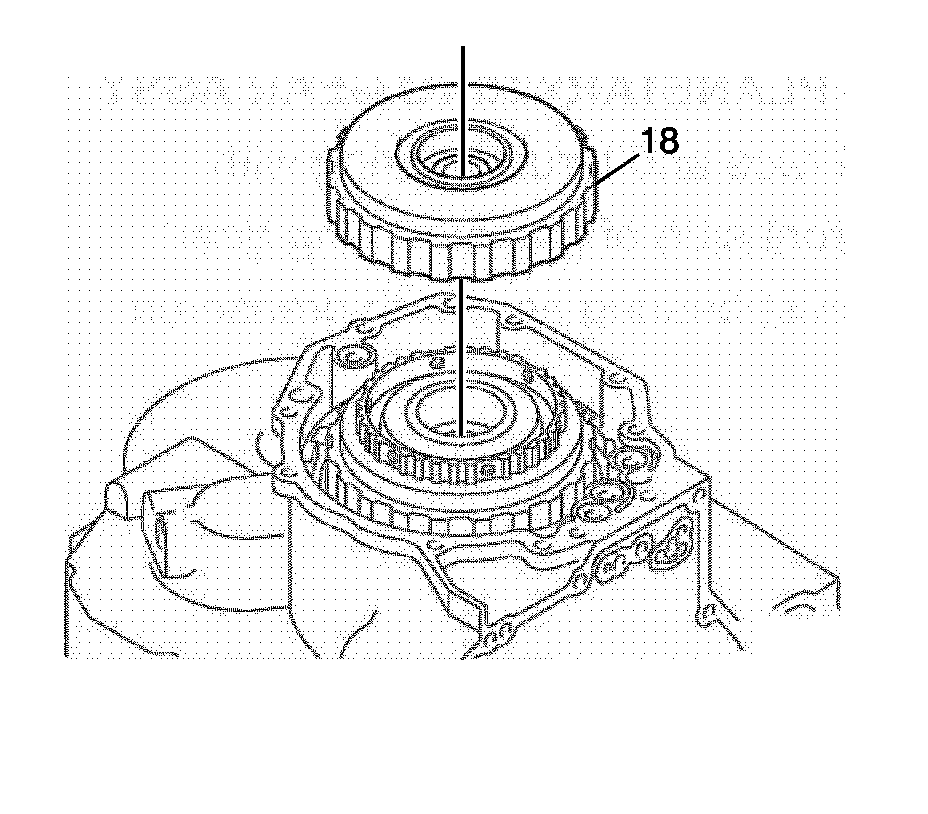

3. Install the forward clutch assembly (18).
