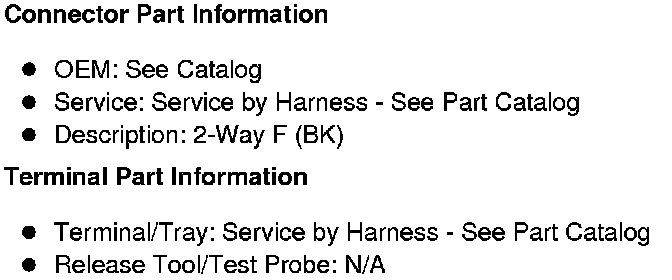

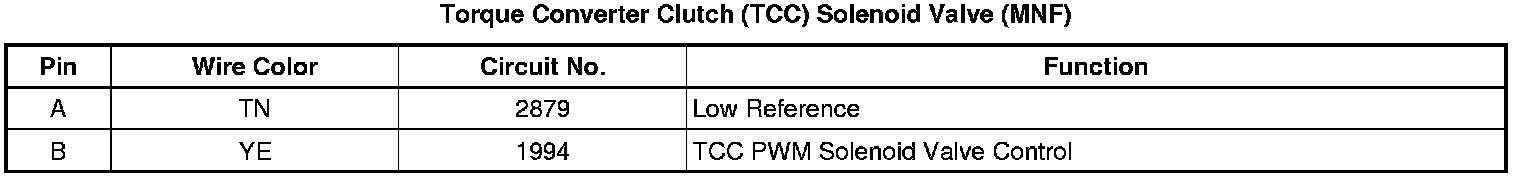

Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Transmission and Drivetrain >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - A/T >> Torque Converter Clutch Solenoid >> Diagrams >> Connector Views
