Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Washer Fluid Level Switch >> Diagrams

Washer Fluid Level Switch: Diagrams

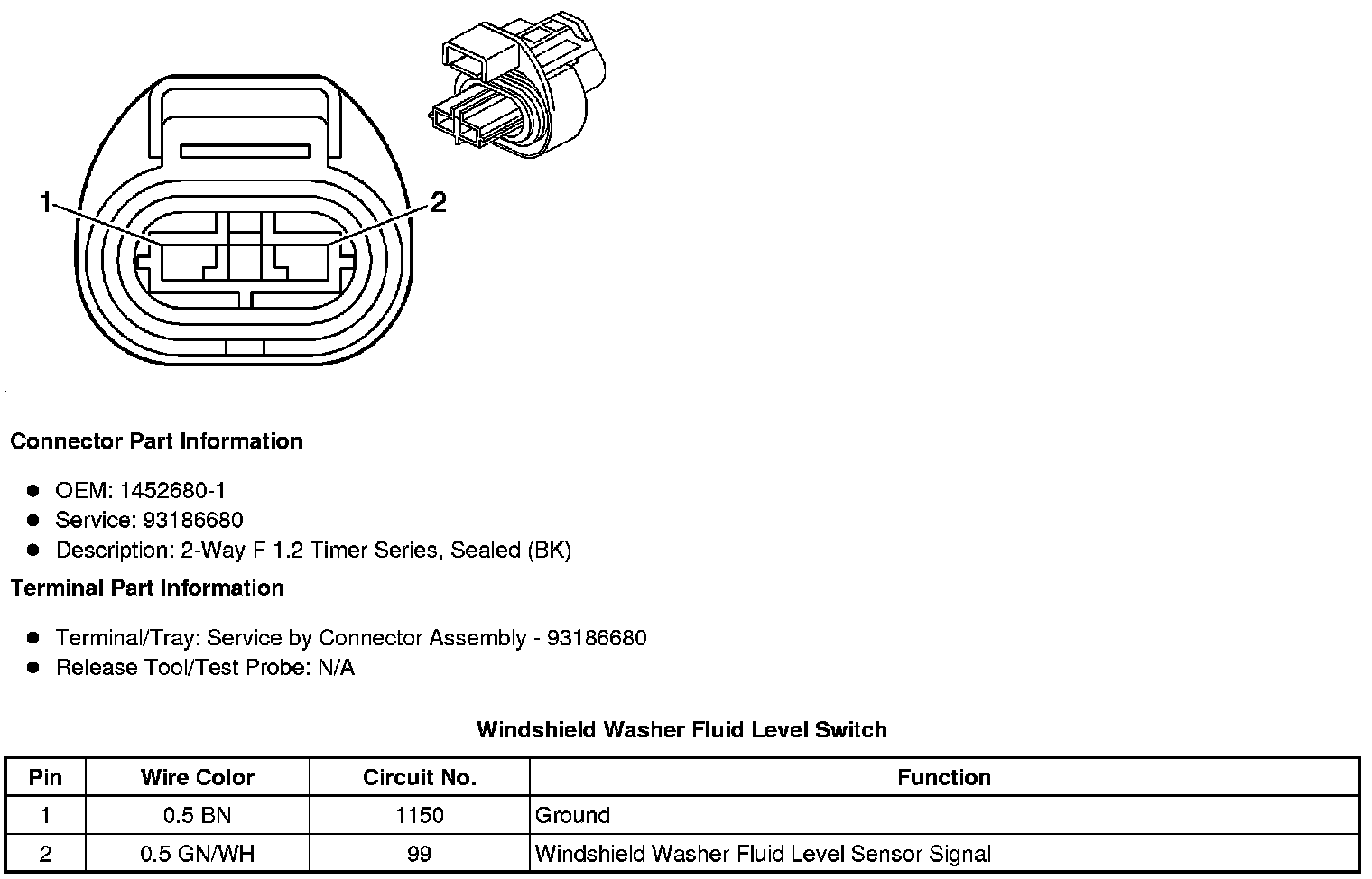

Component Connector End Views

Windshield Washer Fluid Level Switch
