Impact Sensor: Diagrams




Component Connector End Views

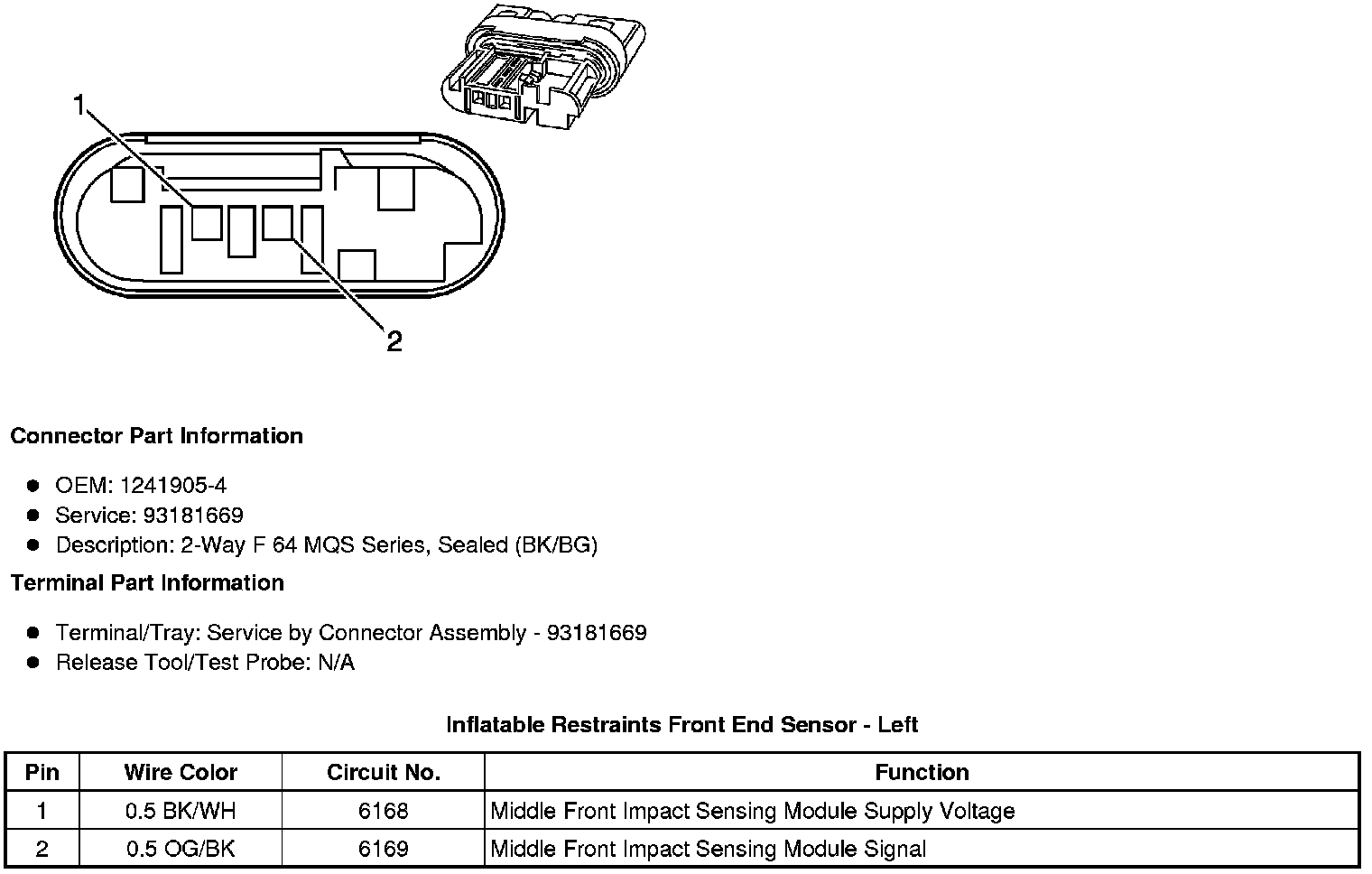

Inflatable Restraints Front End Sensor - Left

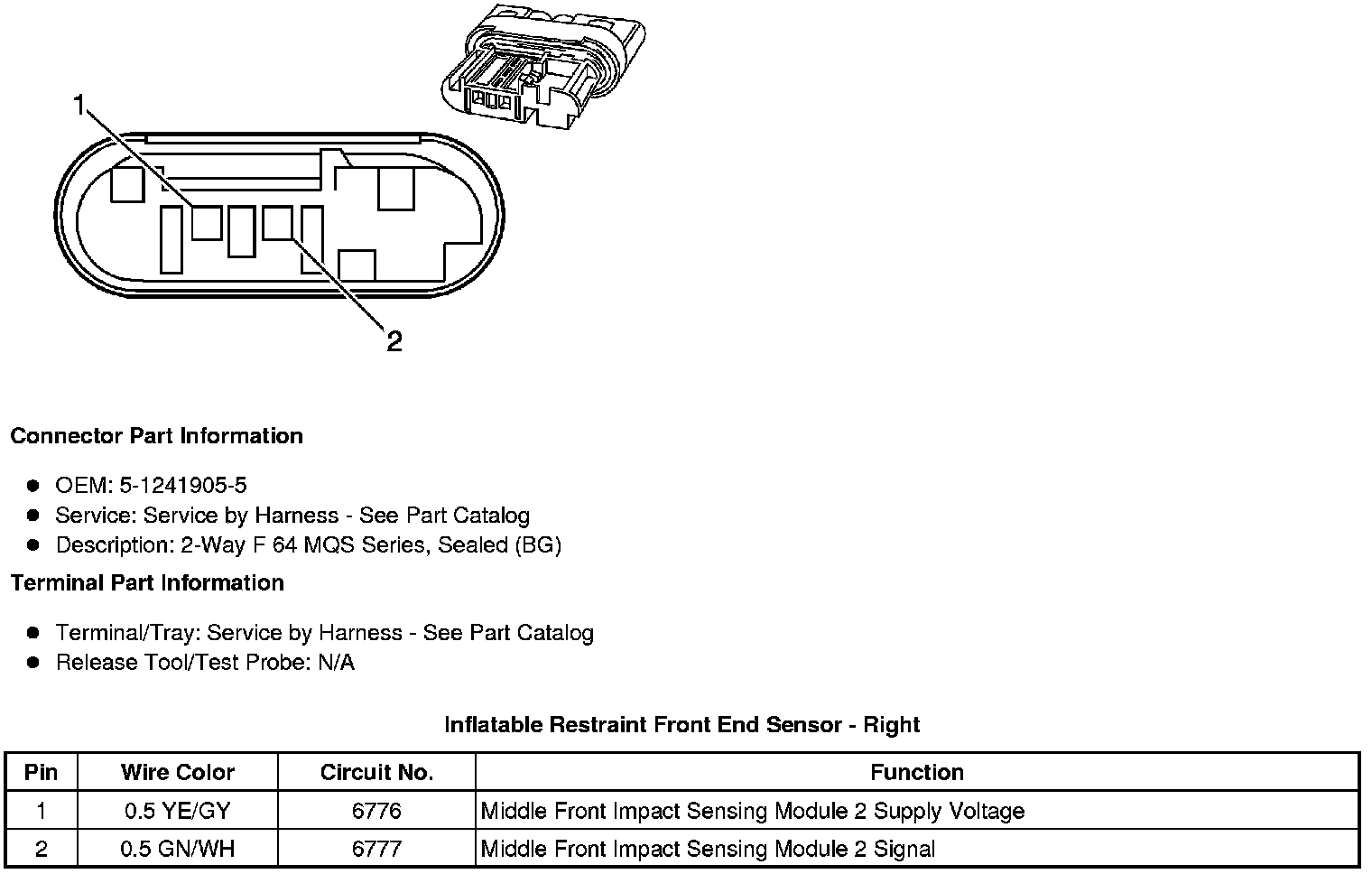

Inflatable Restraint Front End Sensor - Right





Inflatable Restraint Side Impact Sensor (SIS) - Left

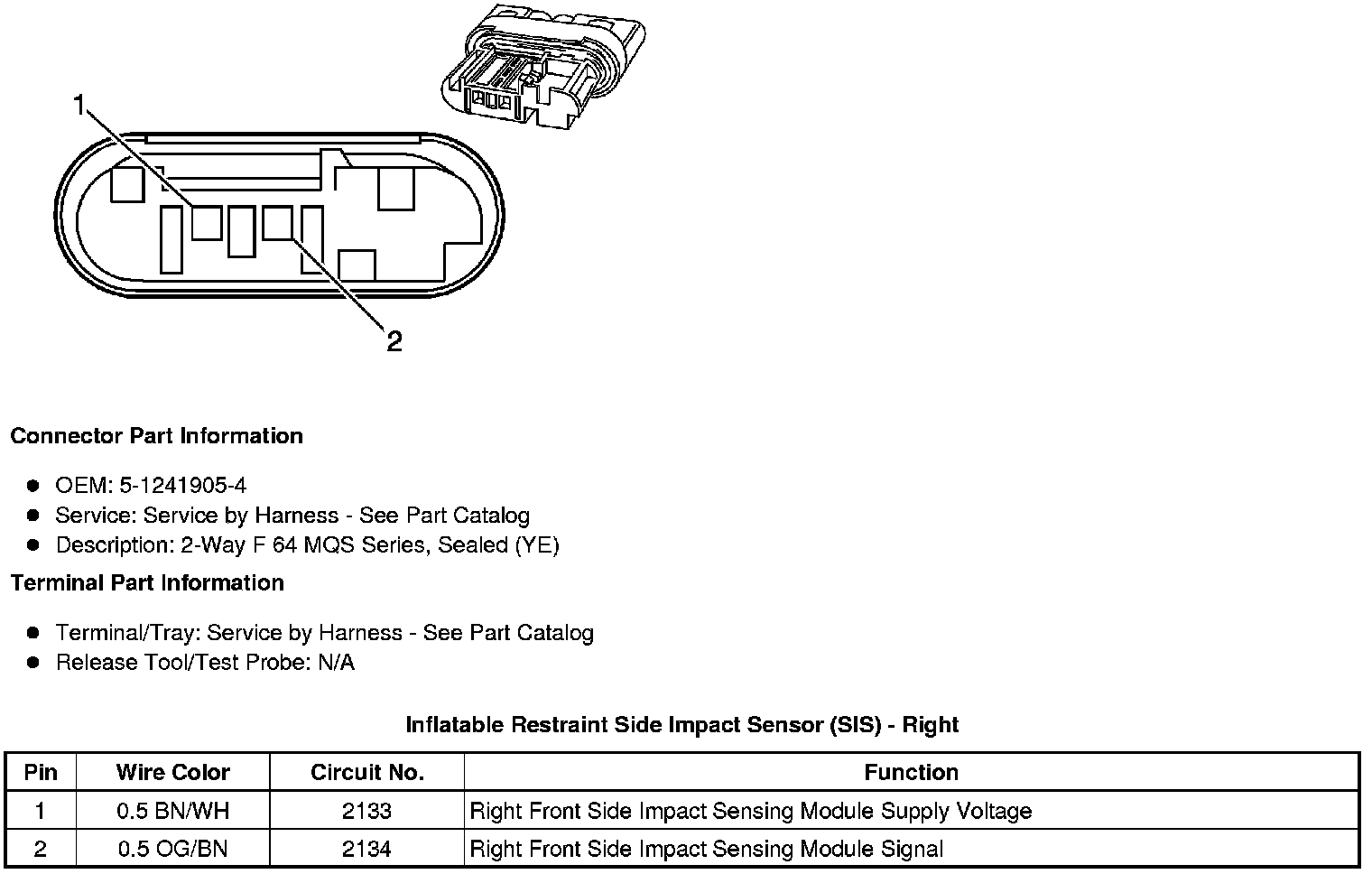

Inflatable Restraint Side Impact Sensor (SIS) - Right
