Headlamp Alignment Sensor: Service and Repair

Headlamp Leveling Rear Suspension Height Sensor Replacement

Removal Procedure




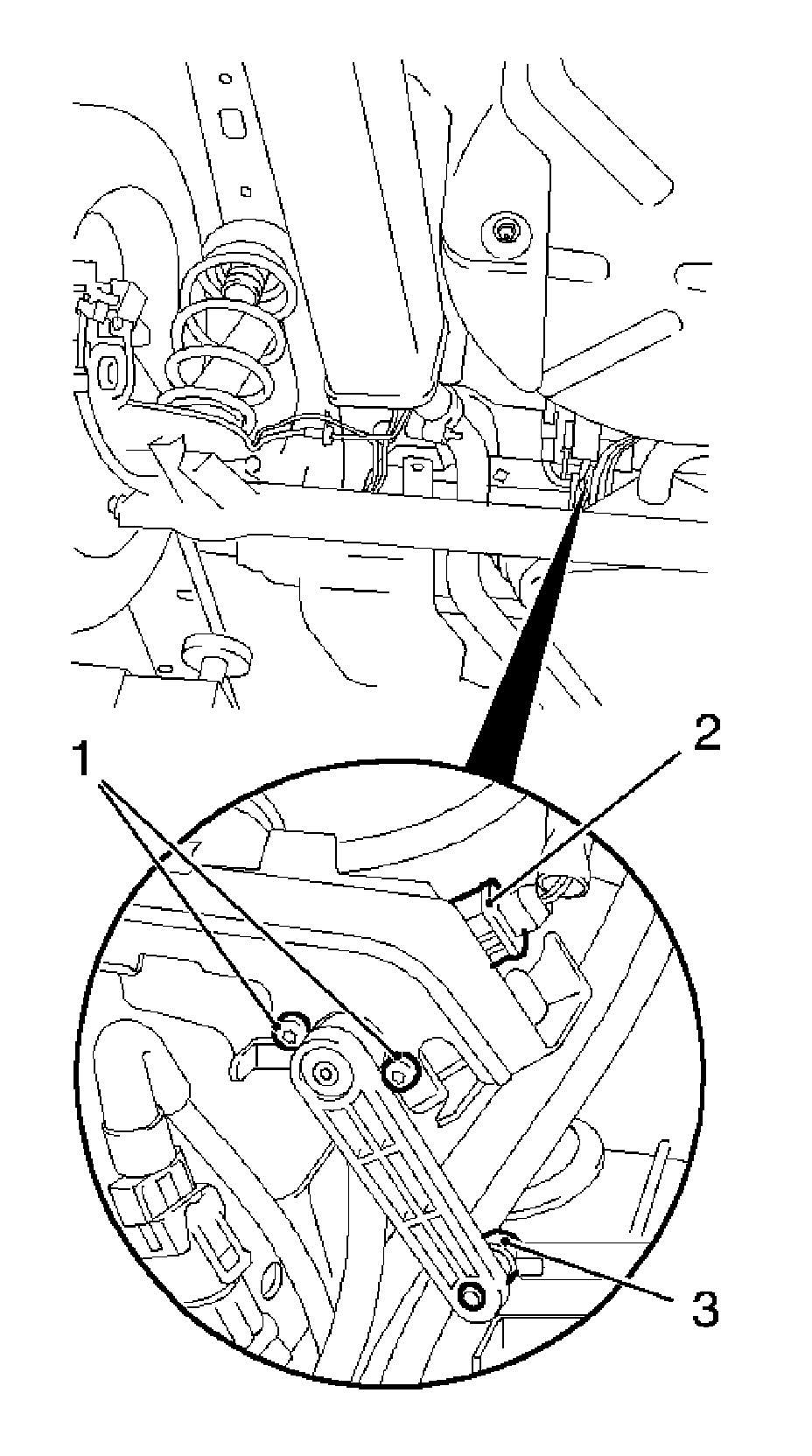

1. Remove the ball head (3) of the sensor linkage.
2. Remove the sensor.

* Disconnect the wiring harness plug (1).
* Remove the 2 bolts (2).
* Remove the rear headlamp leveling sensor.

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the rear headlamp leveling sensor.

* Insert the rear headlamp leveling sensor.

Tighten the 2 screws to 5 Nm (44 lb in).

* Connect the wiring harness plug.

2. Install the ball head for the sensor linkage.
