Outside Temperature Display Sensor: Service and Repair

Ambient Air Temperature Sensor Replacement

Removal Procedure





Remove the external temperature sensor.

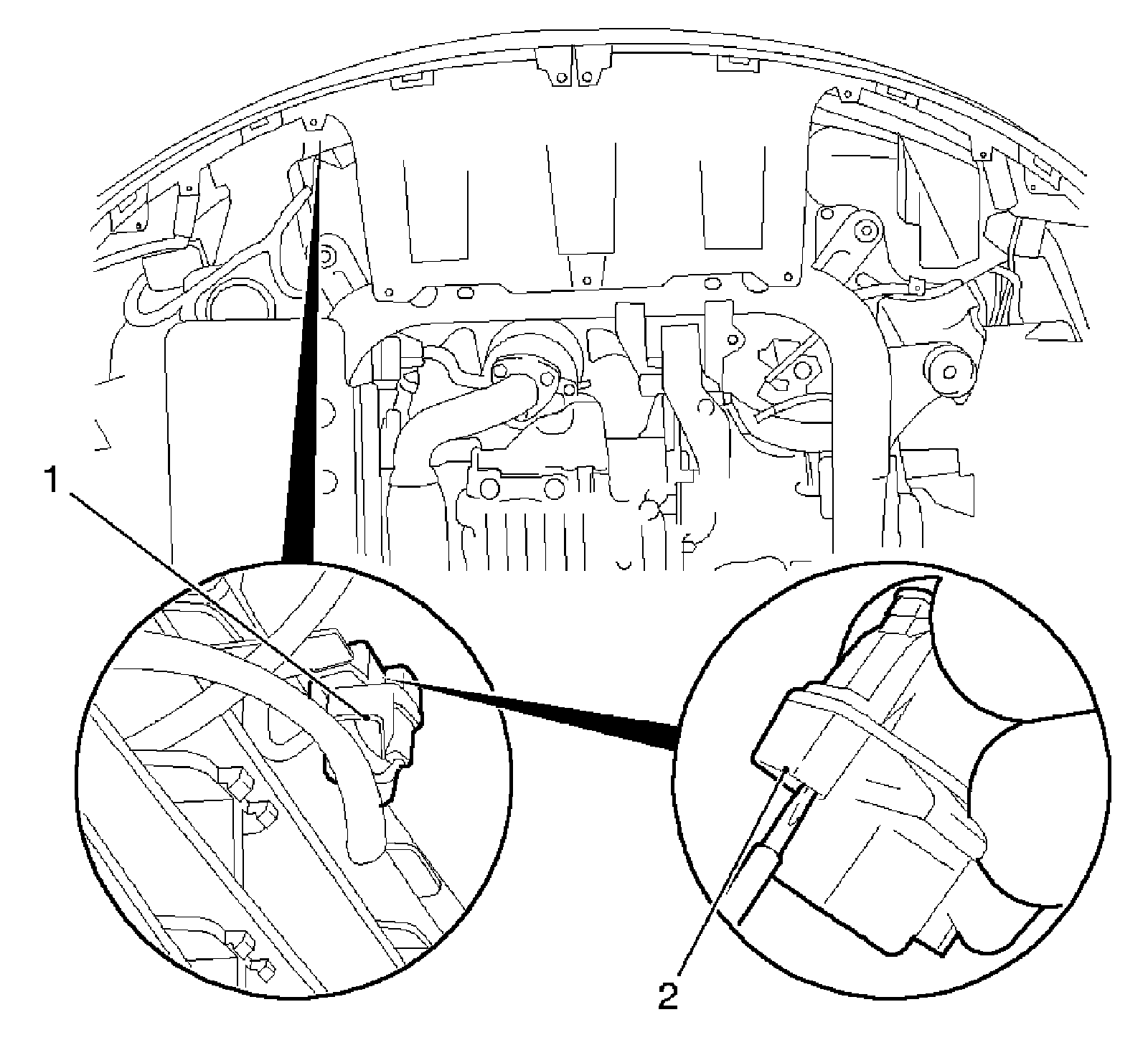

* Disconnect the sensor (1).
* Disconnect the wiring harness plug (2).

Installation Procedure

Install the external temperature sensor.

* Connect the wiring harness plug.
* Install the sensor.
