Lateral Accelerometer: Diagrams

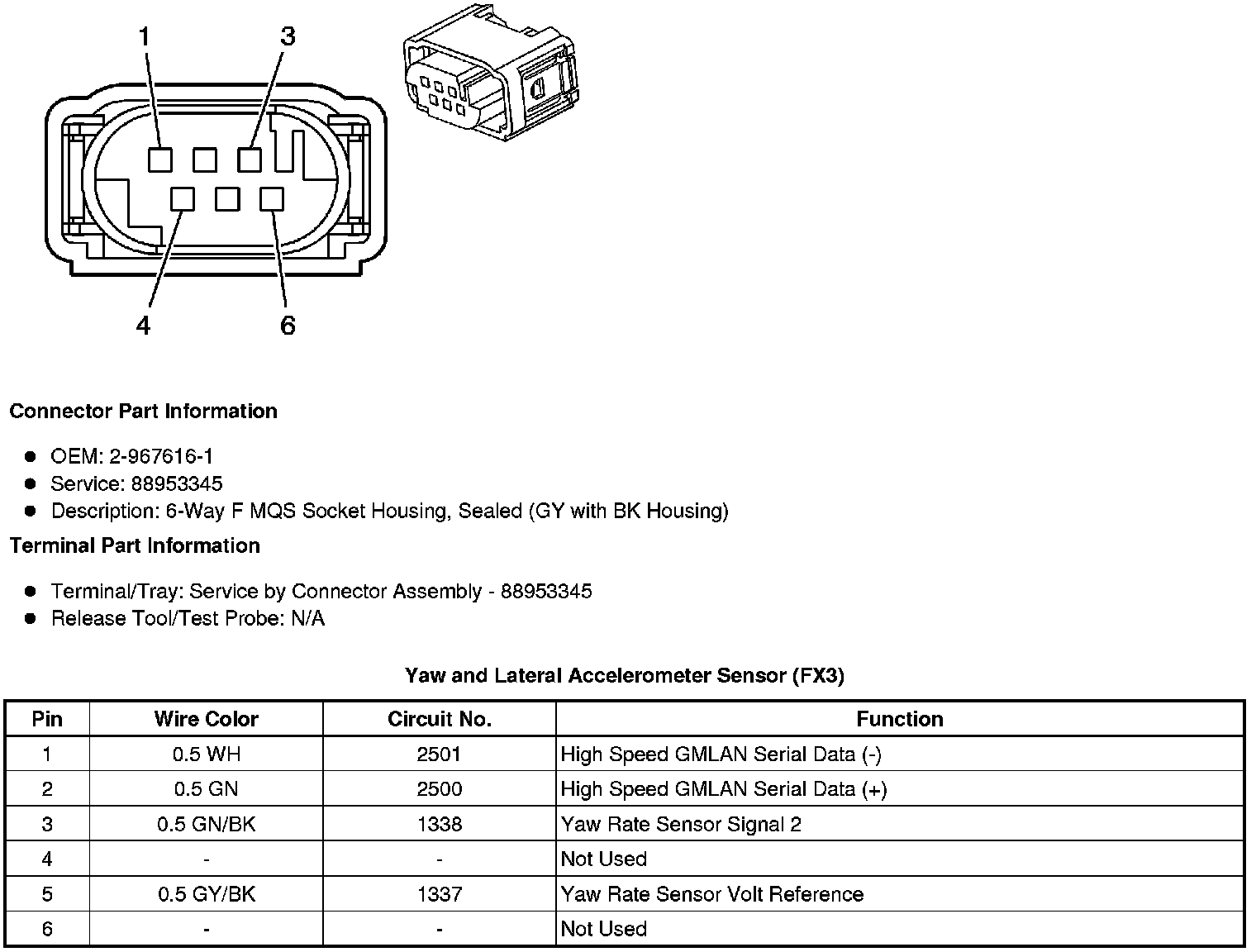

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (FX3)
