Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Sunroof / Moonroof Switch >> Diagrams

Sunroof / Moonroof Switch: Diagrams

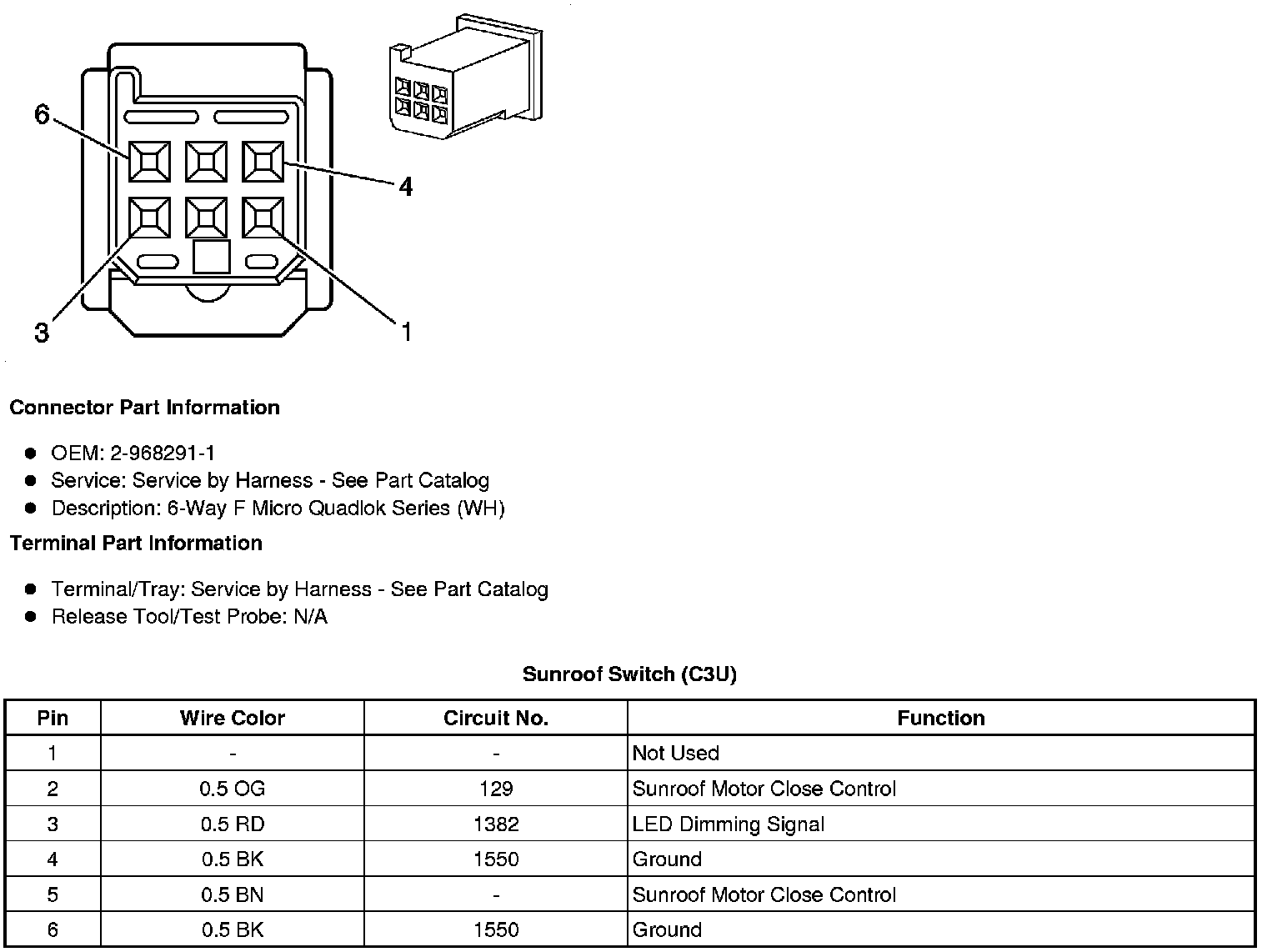

Component Connector End Views

Sunroof Switch (C3U)
