Variable Induction Position Sensor: Diagrams

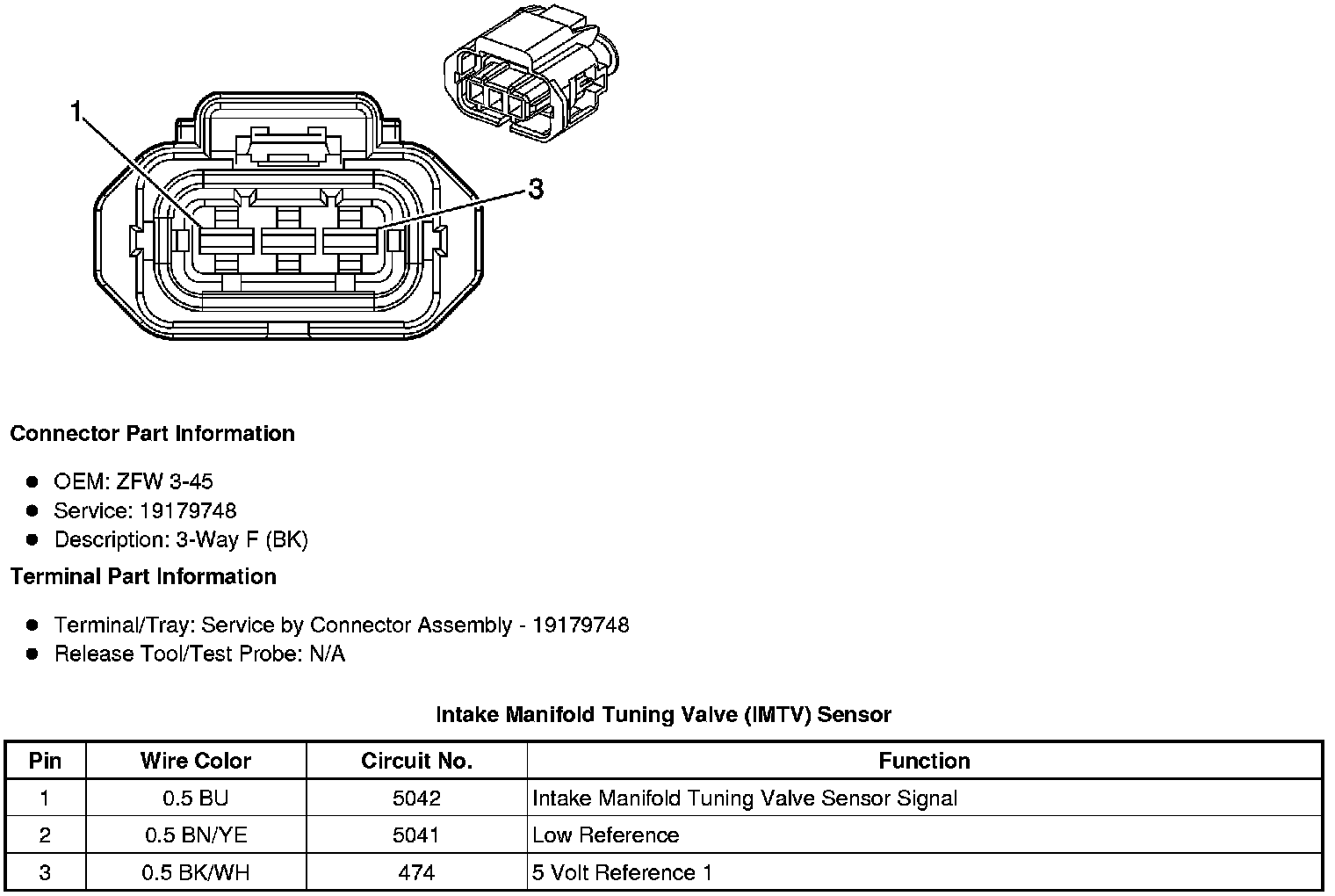

Component Connector End Views

Intake Manifold Tuning Valve (IMTV) Sensor
