Turn Signal Bulb: Service and Repair

Front Turn Signal Lamp Bulb Replacement

Removal Procedure

1. Open the access panel in the wheel house liner.




2. Remove the turn signal lamp bulbs with the holder.

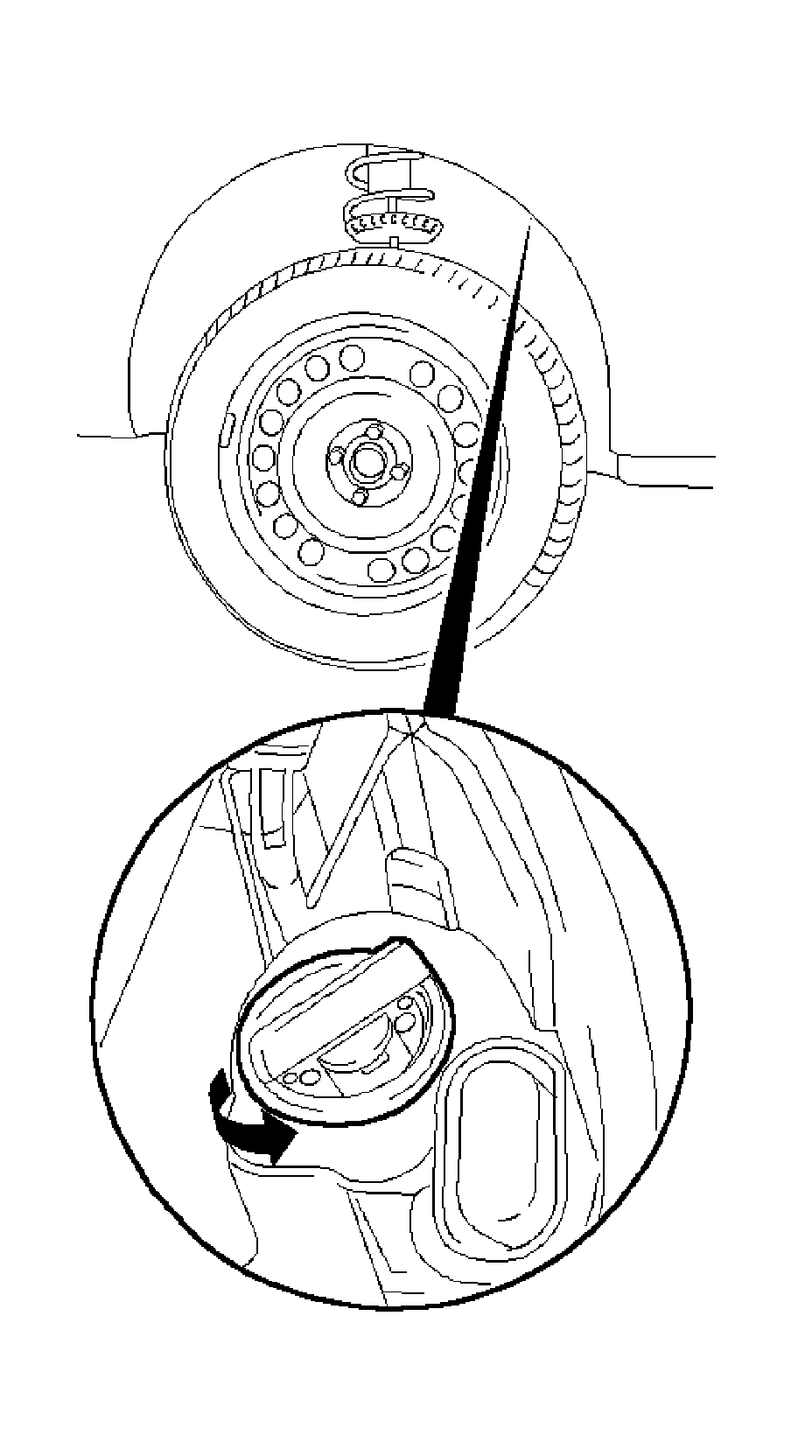

* Turn the holder in the direction of the arrow.
* Remove the holder.

3. Remove the bulb from the holder.

Installation Procedure

1. Install the bulb in the holder.
2. Install the turn signal lamp bulbs with the holder.
3. Close the access panel.
