License Plate Lamp: Service and Repair

Rear License Plate Lamp Replacement

Removal Procedure

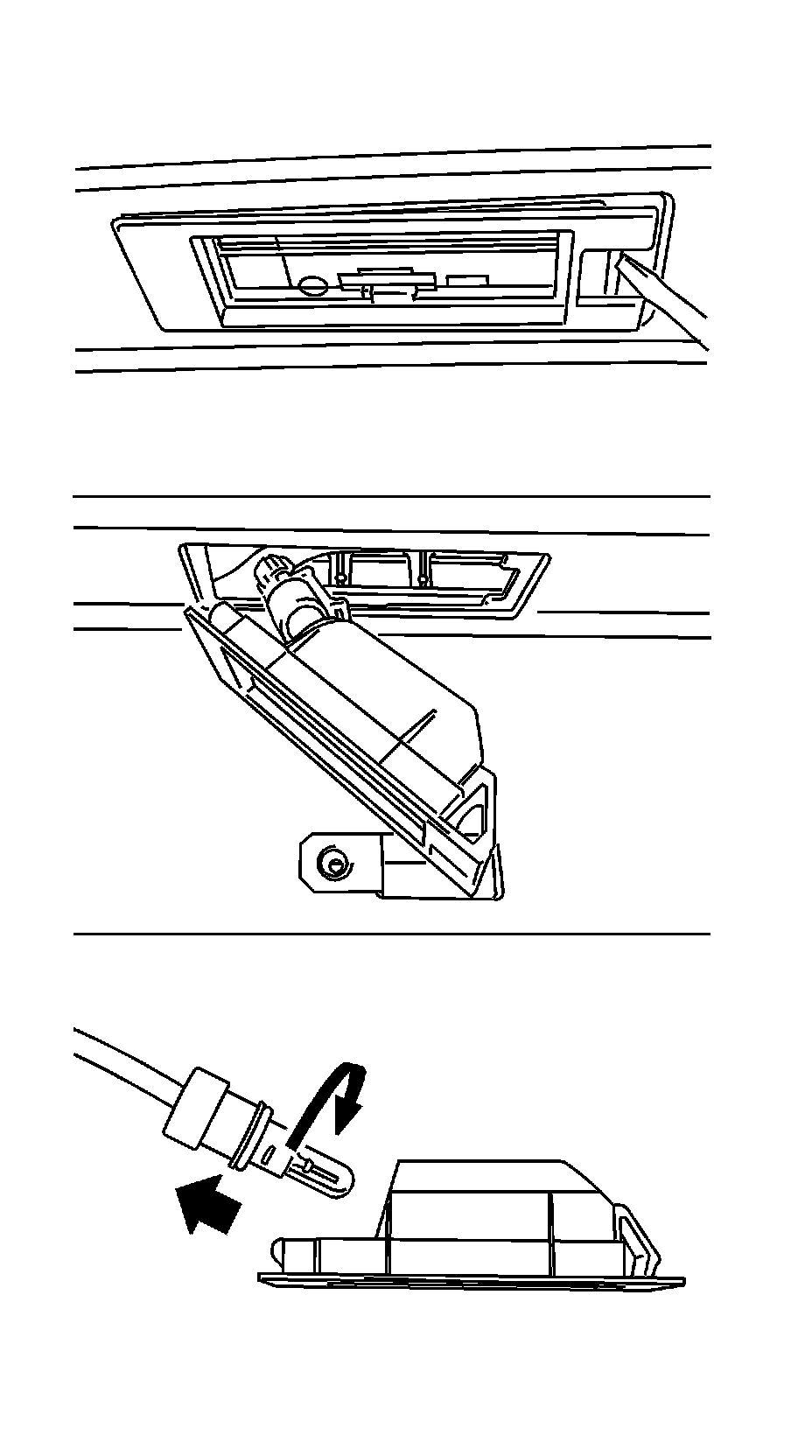

1. Release the license plate lamp.
Disconnect the wiring harness plug.
2. Remove the bulb.
Turn the bulb base in the direction of the arrow and remove.

Installation Procedure

1. Install the bulb.
2. Install the license plate lamp.
Connect the wiring harness plug.
