License Plate Lamp: Diagrams

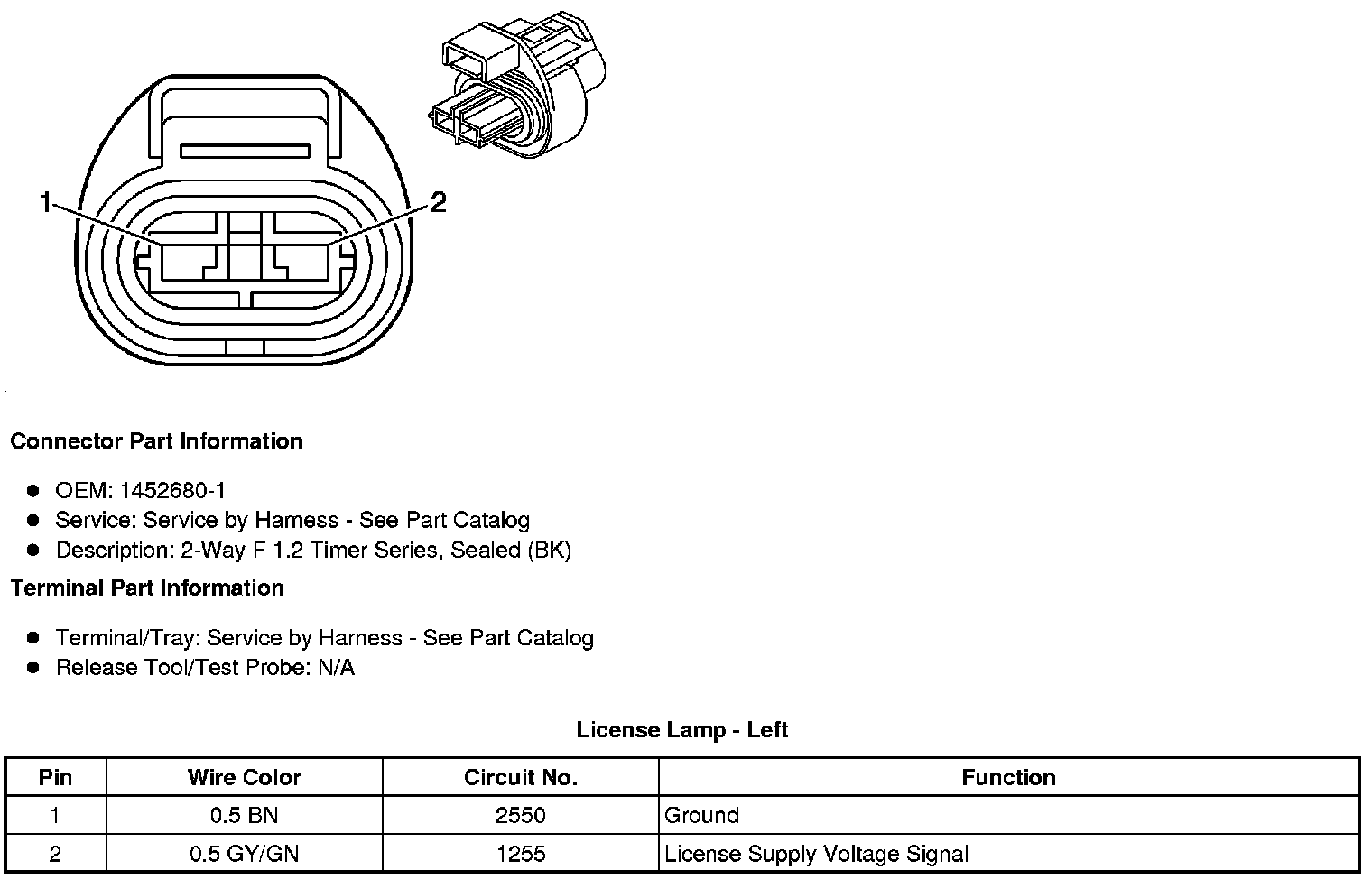

Component Connector End Views

License Lamp - Left





License Lamp - Right
