Cargo Lamp Replacement (Coupe)




Cargo Lamp Replacement (Coupe)

Removal Procedure

1. Open the liftgate.

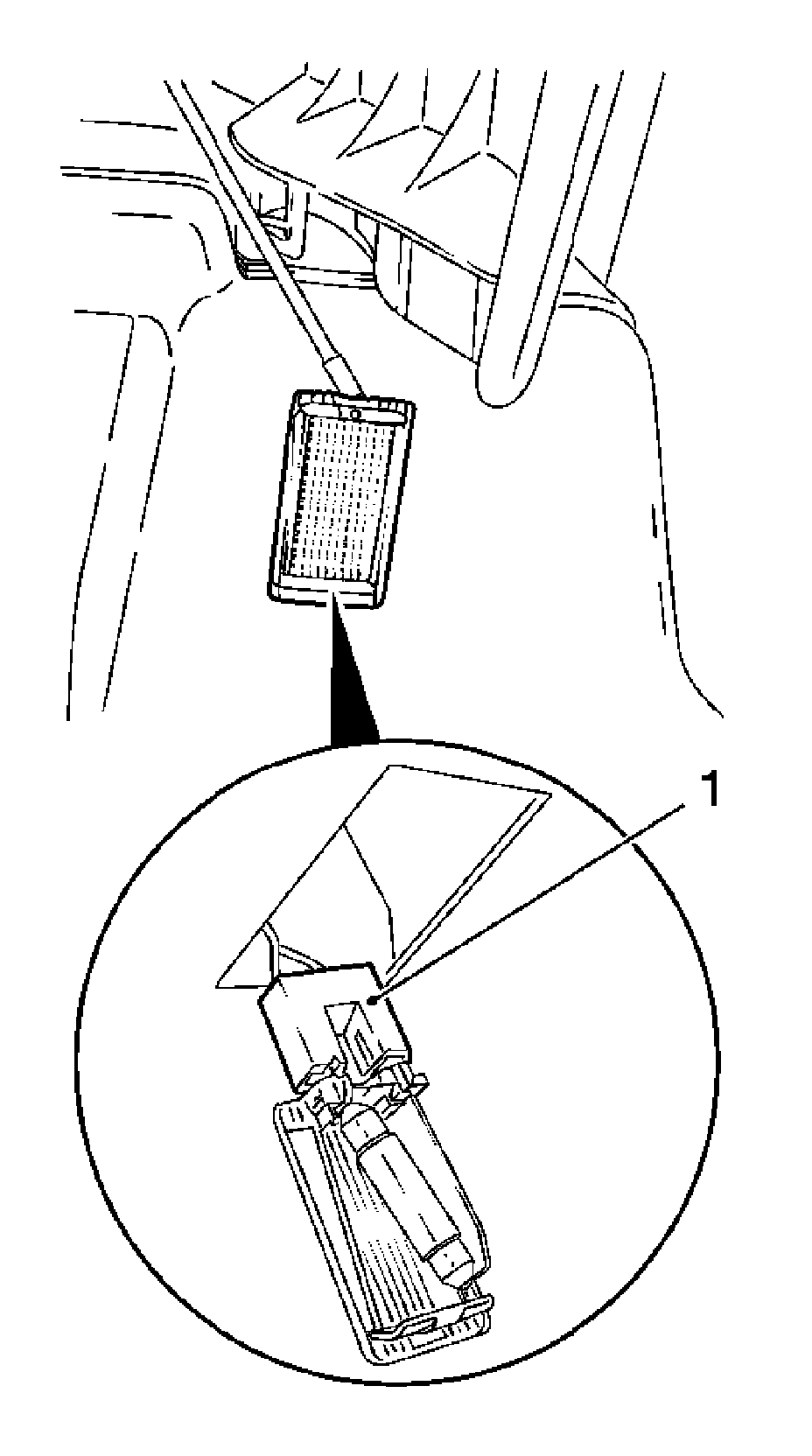

2. Remove the cargo lamp.

* Release the lamp.
* Disconnect the wiring harness plug (1).
* Remove the bulb.

Installation Procedure

1. Install the cargo lamp.

* Insert the lamp.
* Connect the wiring harness plug.
* Install the cargo lamp.

2. Close the liftgate.
